IdeaTab K3011W Hardware Maintenance Manual

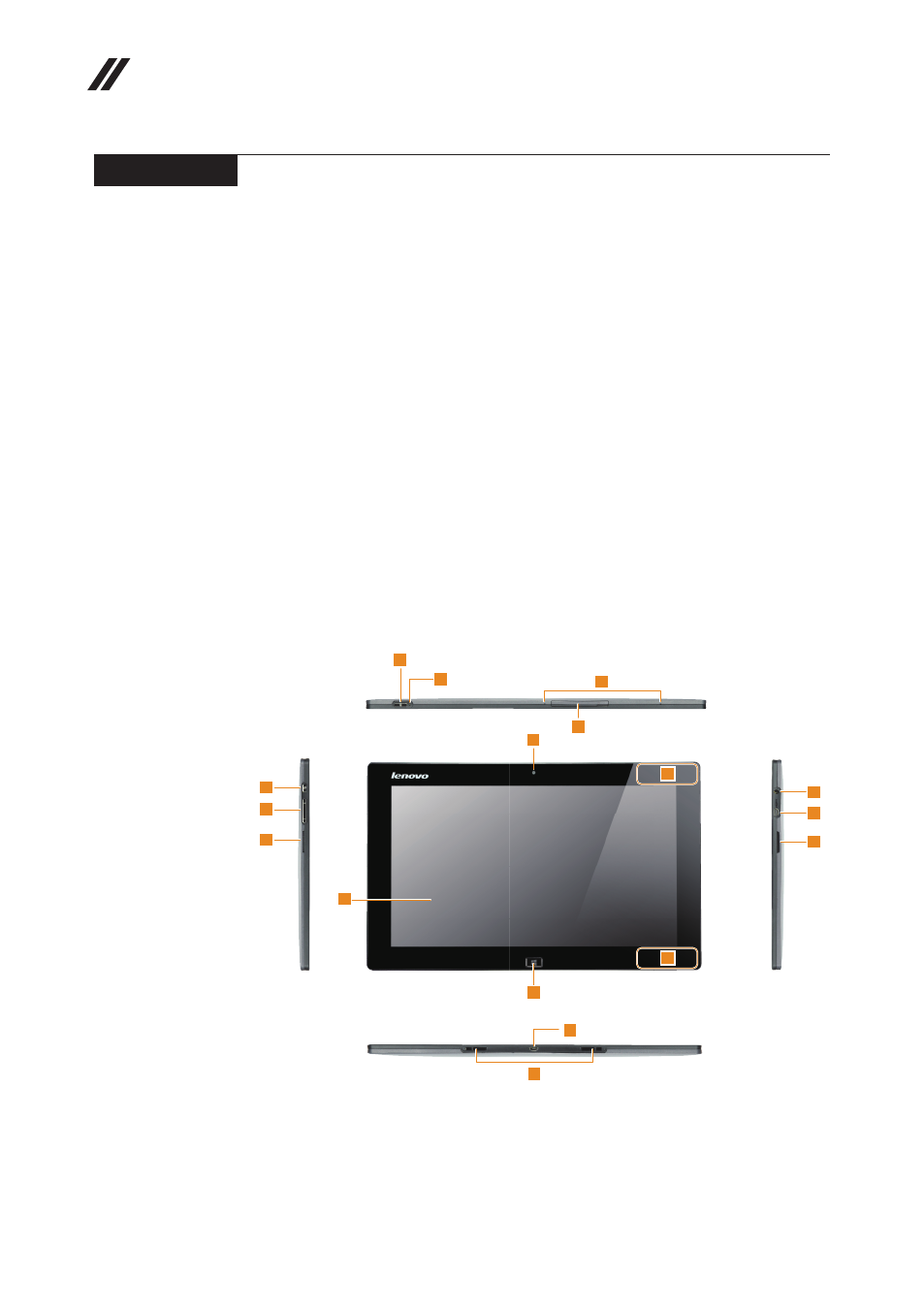

Locations

Tablet

1

Integrated camera

2

Wireless LAN antennas

3

Multi-touch screen

4

Windows button

5

Screen rotation lock button

6

Volume button

7

Speaker

8

Micro HDMI port

9

Combo audio jack

J

Power button

K

Power status indicator (on tablet)

Note: For the description of each indicator, see “Status indicators” on page 28.

L

Micro SD card slot

M

Built-in microphone

N

Tablet-docking latch

O

Multi-function connector
