Lenovo M5800 Desktop User Manual
Page 100
Removing the WiFi adapter card
To remove a WiFi adapter card, do the following:
1. Turn off the computer and disconnect all power cords from electrical outlets.
2. Remove the computer cover. See “Removing the computer cover” on page 69.
3. If your computer comes with a WiFi card module that supports the Bluetooth function, disconnect
the Bluetooth cable from the WiFi adapter card.

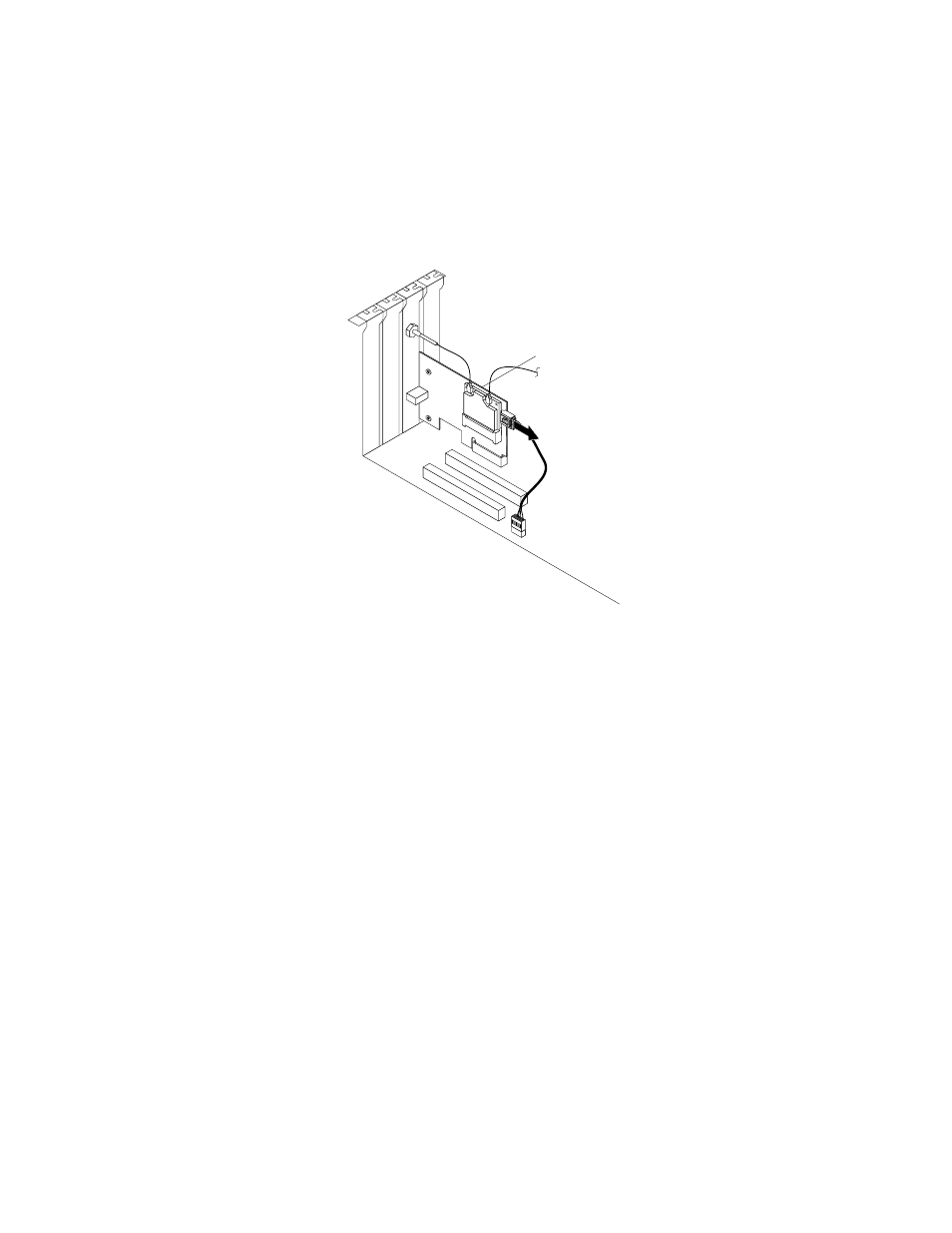

Figure 32. Disconnecting the Bluetooth cable
Note: The Bluetooth cable connects the Bluetooth connector on the WiFi adapter card to the front USB
connector on the system board to support the Bluetooth function.
4. At the rear of the computer, remove the screw that secures the PCI card latch.
94
Lenovo M5800 Hardware Maintenance Manual
