Lenovo IdeaPad Z410 Notebook User Manual
Page 57
53
Lenovo Z410/Z510/Z510 Touch

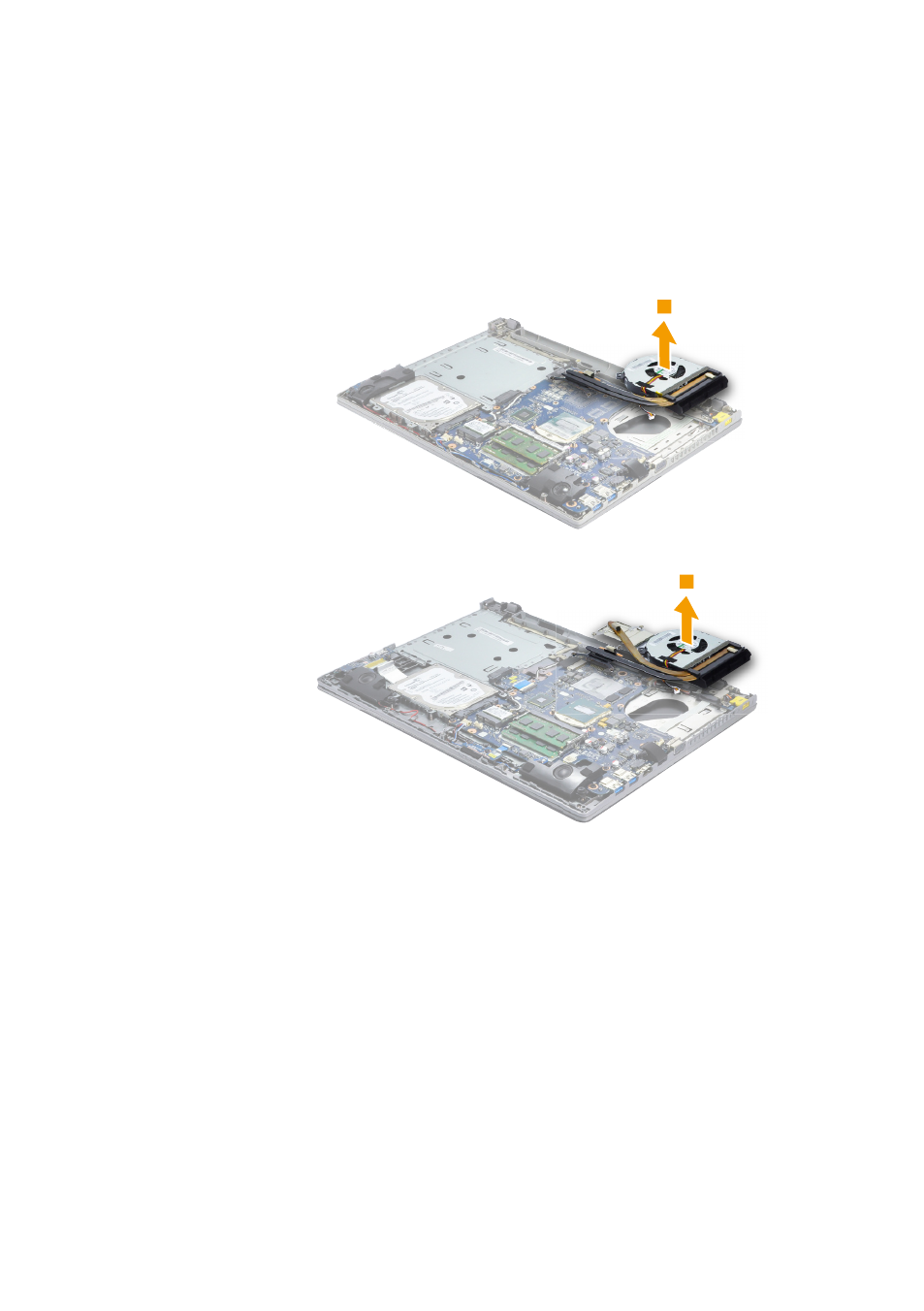

Figure 8. Removal steps of fan assembly and heat sink assembly (continued)
Lift the fan assembly and heat sink assembly in the direction shown by arrow
4
.
Be careful not to damage the connector.
Z410
4
Z510/Z510 Touch
4
Attention: Do not handle the heat sink assembly roughly. Improper handling
can cause distortion or deformation and imperfect contact with components.
