Lenovo H50-50 Desktop User Manual
Page 34
1
2
3
4
5
1
0
1
1
1
2
1
5
1
6
1
7
1
8
1
9
1
3
1
4
7
6
9
8

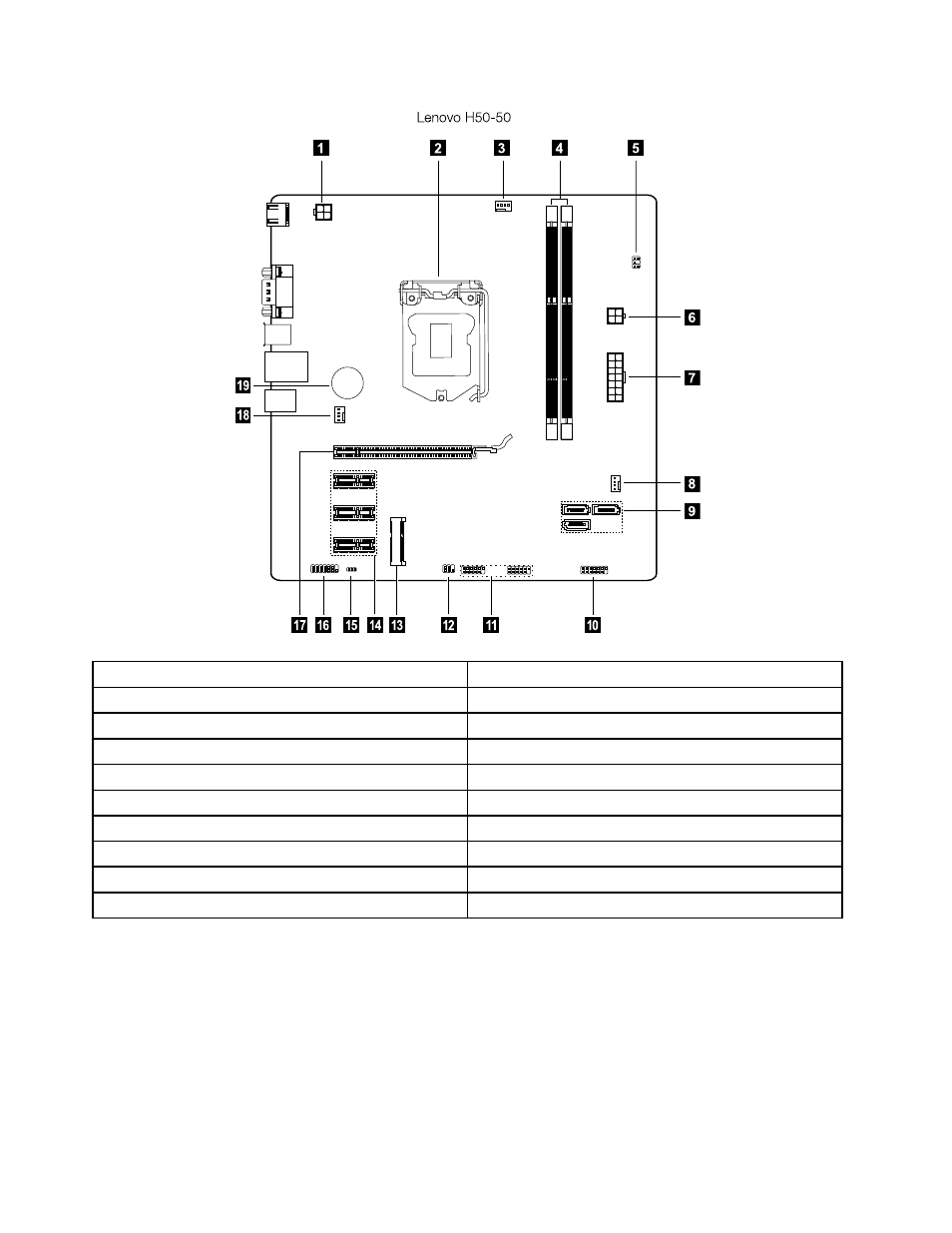

Lenovo H50-50
1. 12V power connector
11. Front USB connectors (2)
2. Microprocessor and heat sink
12. LPC debug header
3. Microprocessor fan header
13. Mini PCI-E slot
4. Memory slots (2)
14. PCI express X 1 adapter slots (3)
5. Thermal sensor header
15. Clear CMOS jumper
6. Hard disk drive power connector
16. Front audio connector
7. Power connector
17. PCI express X 16 adapter slot
8. Power fan header
18. System fan header
9. SATA connectors (3)
19. Battery
10. Front panel connector
