1. Power connector
6. USB 2.0 connectors (2)
2. Voltage selection switch (selected models only)
7. Ethernet connector
3. HDMI connector (selected models only)
8. Audio connectors
4. On-board VGA connector
9. Wi-Fi antenna (selected models only)
5. USB 3.0 connectors (2)
10. Expansion card slots (some models are equipped with
graphics card, USB 3.0 or TV tuner card)

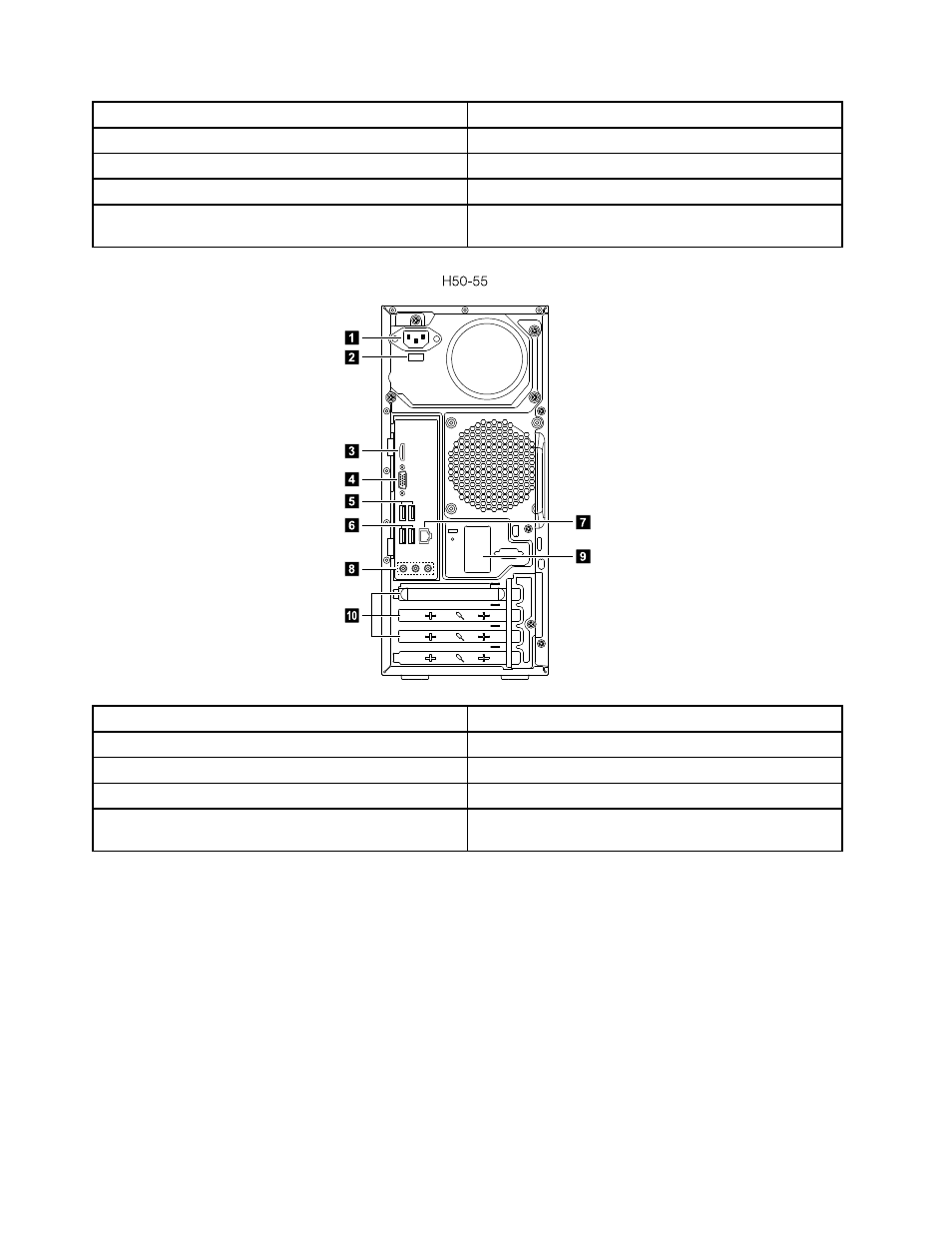

H50-55
1
2
3
4
5
6
7
9
8
10
1. Power connector
6. USB 2.0 connectors (2)
2. Voltage selection switch (selected models only)
7. Ethernet connector
3. HDMI connector (selected models only)
8. Audio connectors
4. On-board VGA connector
9. Wi-Fi antenna (selected models only)
5. USB 3.0 connectors (2)
10. Expansion card slots (some models are equipped with
graphics card, USB 3.0 or TV tuner card)
