Spare partS liSt - c
heeSe
m
elter
~ 40700
11
17
13
1
14
16
12
7
5
6
3
8
4
2
10
18
9
18
9
3
15

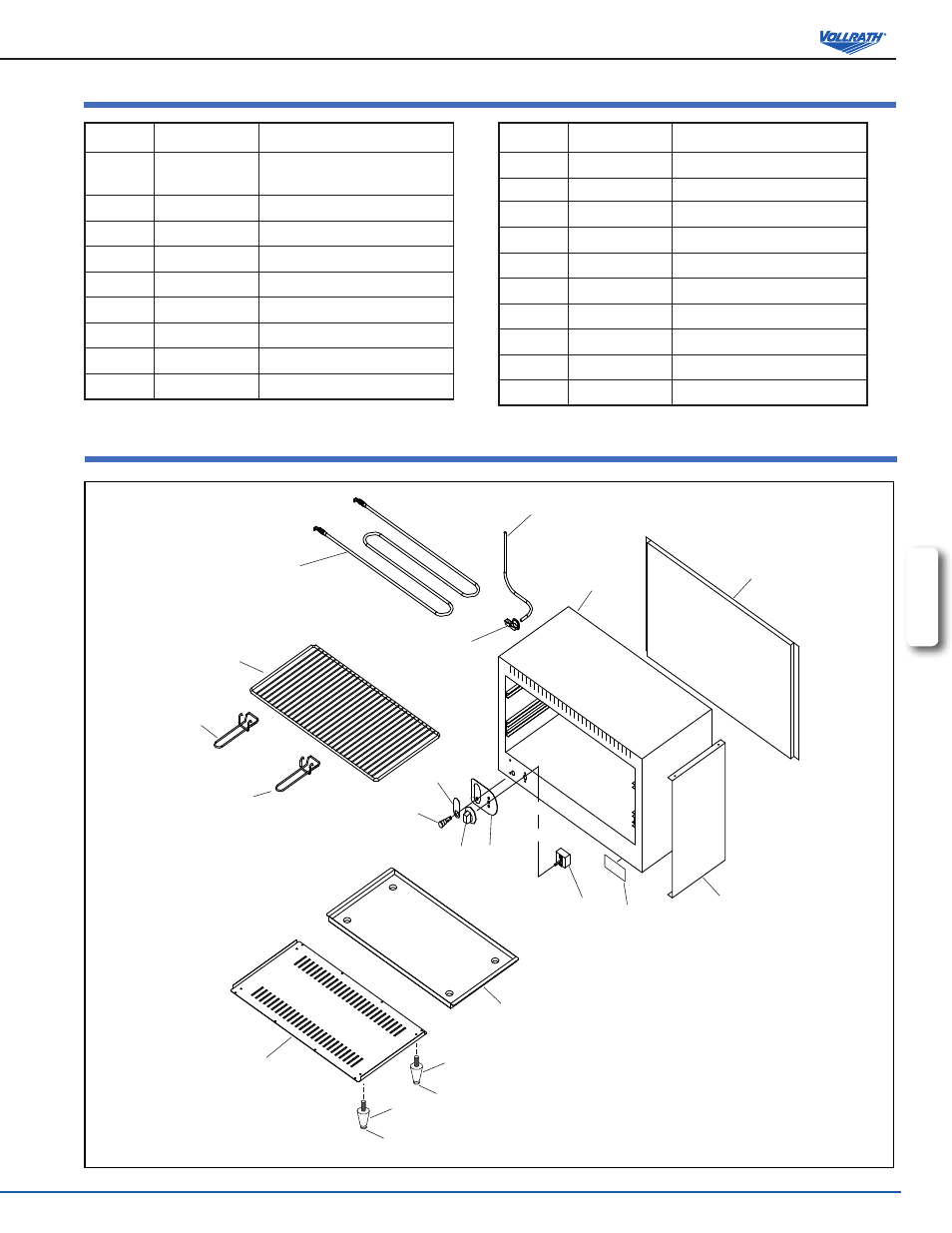

eXploded VieW - c
heeSe
m
elter
~ 40700
Callout Part Number Description
1
XSAA0006
Heating Element, 208V - 240V
~ 2800 Watt
2
XSAA0007
Shelf
3
N/A
Handles
4
XAA0002
Pilot Light, 208V - 240V, Red
5
N/A
Pilot Light Fascia
6
XBMA7007
Regulator Knob
7
XAA0009
D-Shape Fascia
8
XSAA0008
Crumb Tray
9
N/A
Foot
Callout Part Number Description
10
N/A
Base Cover
11
XSAA1011
Energy Regulator Control
12
Vollrath Badge
13
N/A
Side Cover
14
N/A
Back Cover
15
N/A
Frame
16
N/A
Nut
16
XCOA1013
Cable Restraint
17
XAA0006
Power Cord, NEMA 6-15
18
XFTA0010
Leg (includes Ref. 9)
