from the factory. In that mode, when a hard disk is damaged, the data
remains accessible as usual.
Each and every DNS-3200 is available with a SATA hot plug hard disk
when released from the factory plus 2 logically split areas. Data in the
split areas are available in the following tables and figures.
Note:
Default layouts may vary depending on the num-
ber of hard disks.
Logical
Disk
RAID mode Size
1
1N
10 GB in disk 0, 1, 2 and 3
2
5
Remaining space in disk 0, 1, 2 and 3

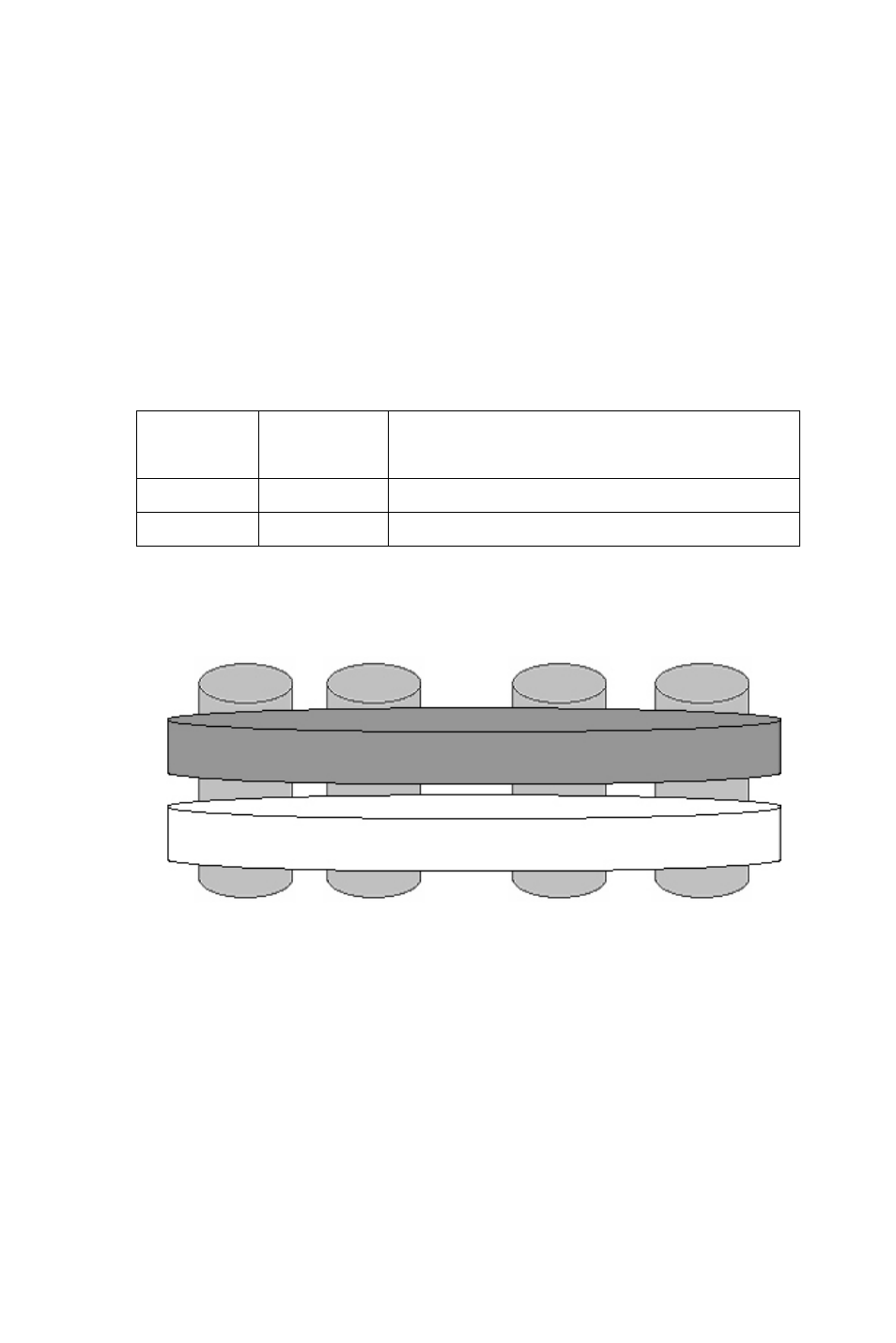

Split Area of Operating System
logical Disk 1
RAID 1N
Data Split Area
logical Disk 2
RAID 5
Physical Disk 1
Physical Disk 2
Physical Disk 3
Physical Disk 4
