Vogels PFT 8805 - Manual (Page 6)

www.vogels.com 9532-010-Z00-00
5mm
5mm
2x 2x
22
4x 4x
3 15
13 12
14
Installation Guide
Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids
PFT8805

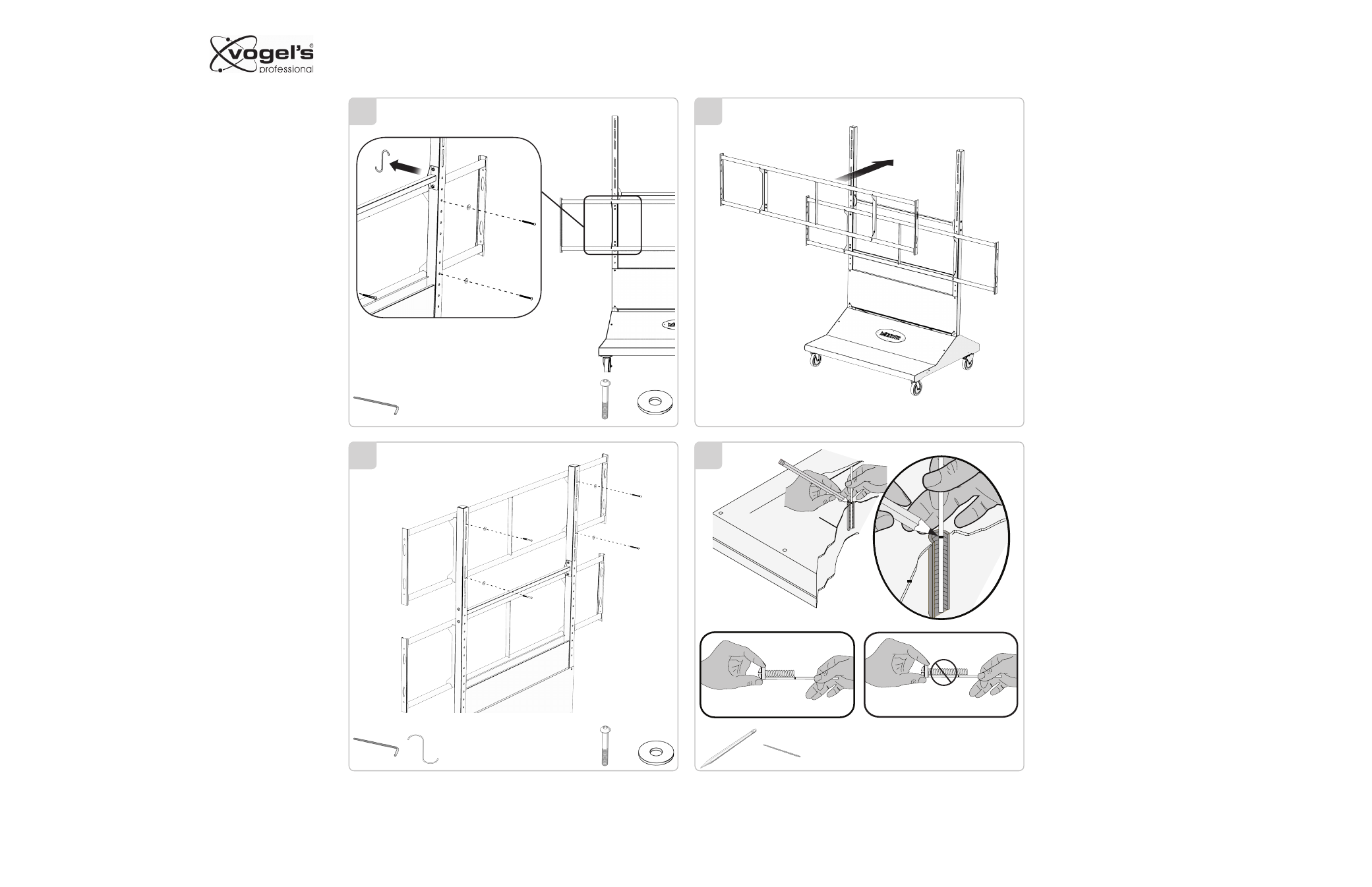

Place the first flat panel display face down on a smooth flat
surface and confirm the mounting depth and thread pitch or
your display using the depth gauge supplied. Refer to the diagram on the previous page to find the proper
spacing for the cross bars. Once you have the proper clear-
ance height for placement of the second cross bar install,
level and secure the second cross bar to the main frame
with the four each M8 x 60mm button head Allen screws and
flat washers supplied.
