AVerLife HD Theatre
ENG-4

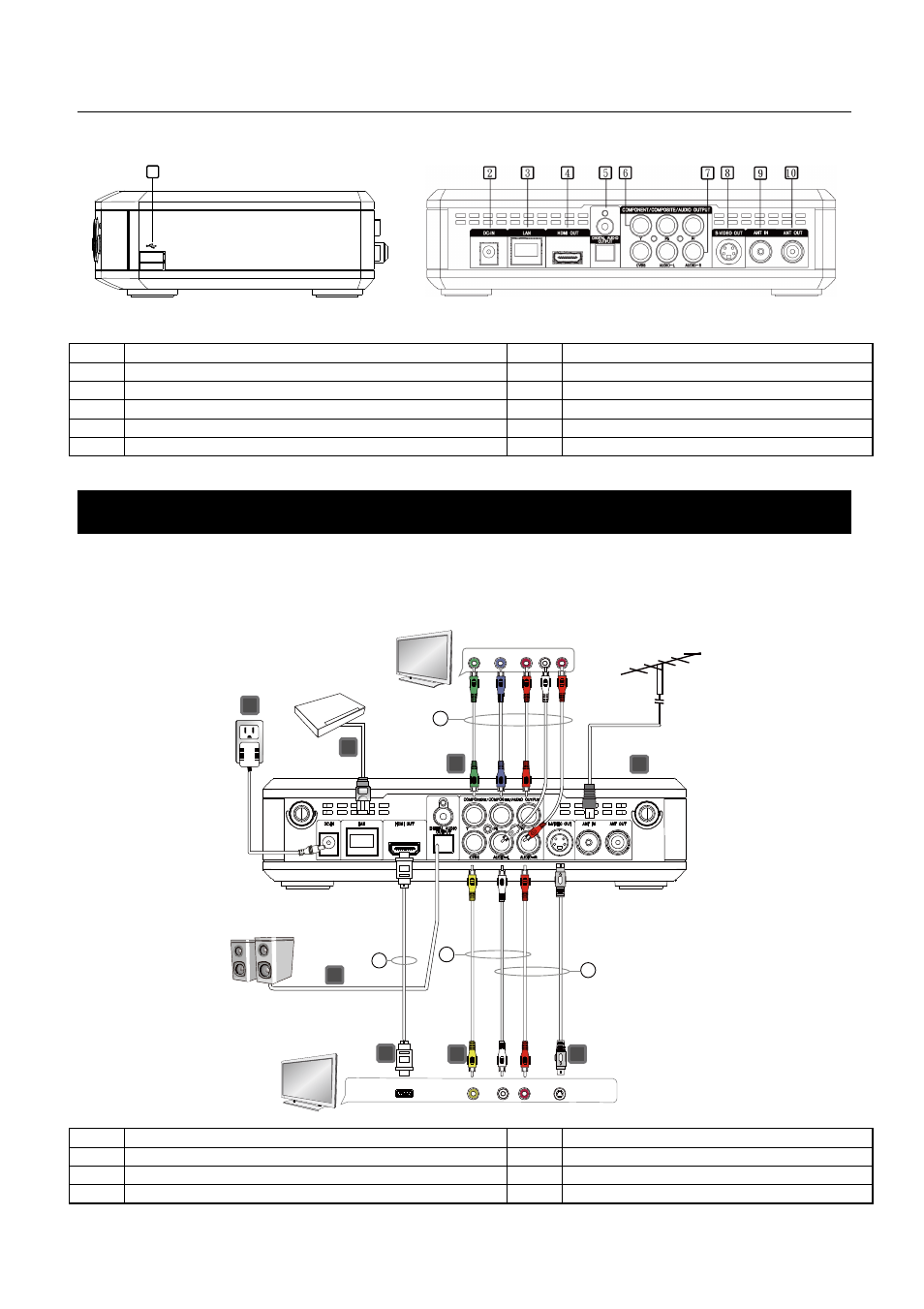

2.3 Connection Ports
The port connectors allow connection of your TV antenna, LCD projector, external Pen-drive, HDD, speakers,
video, or s-video source etc.
1
Left Panel Back Panel
1. USB port (USB hub not supported) 7 Composite video output
2 Power adapter 8 S-video output
3 Ethernet port 9 TV signal input
4 HDMI output 10 TV signal output
5 Digital audio output
6 Component video output
The Installation and Setup section provides more information on cable connections.
Chapter 3 Installation and Setup
The figure below shows the proper cable connections for installing AVerLife HD Theatre and connecting it to your
audio/video equipment. Use either one of the (A) (B) (C) (D) connections to output the signal to your TV. The (A)
(B) (C) (D) connections serve the same purpose; use only one at a time.
S-VIDEO VIDEO L-AUDIO-R
Y Pb/Cb Pr/Cr L-AUDIO-R
HDNI
A
B
C
D
2
3
1
4
5
6 7 8
1 Power adapter 5 Digital audio cable (not supplied)
2 LAN cable (not supplied) 6 HDMI cable (not supplied)
3 Component cable 7 Composite cable
4 TV Antenna (75Ω) (not supplied) 8 S-video cable (not supplied)
