PFW 6870
Page 8 Installation Instructions

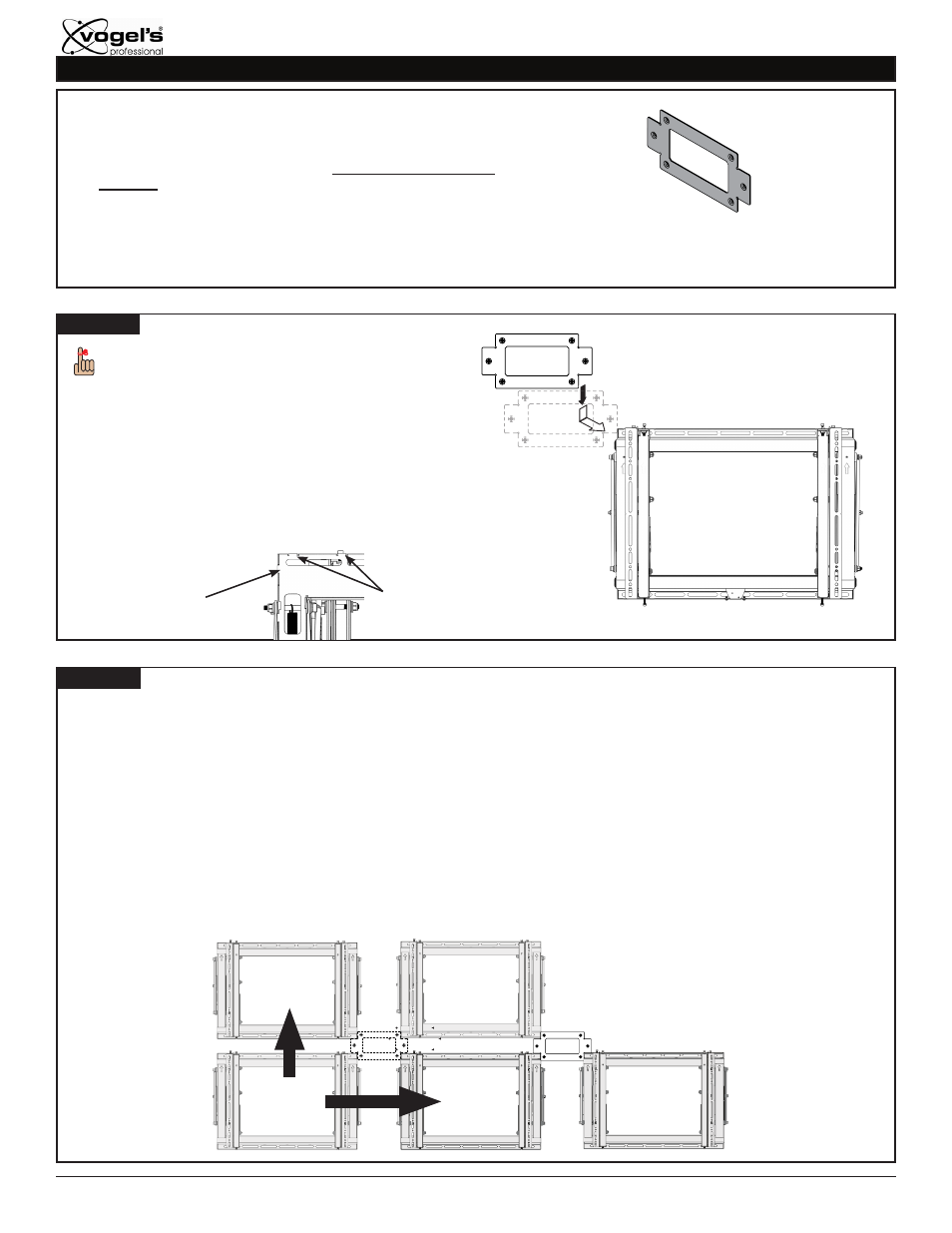

Installing OPTIONAL Model Specific Spacers
PFW 6870’s dedicated flat-panel spacers are engineered
with the knowledge that aligning each flat-panel on a large
wall is time consuming and costly. These model-specific
spacers are available for most flat-panels, which significantly
reduces the installation time. (Call Customer Service to
inquire about model specific spacers.)
This spacer is shown for illustration purposes only.
Your spacer may look different depending on the
display model you are installing.
1) Once your PFW 6870 is mounted in the desired
location and is level, align your spacer to the top left
or right (depending on your install direction) corner
register tabs of your mount.
You may use commercially available hardware to
secure the spacer to the wall during installation
(depending on the wall material). You may utilize the
same spacer for multiple PFW 6870 installations.
Step 1
Multiple PFW 6870 mounts can be installed using model specific spacers. Simply repeat step one when installing
each of the surrounding PFW 6870 mounts. Use one spacer for each 2x2 installation by mounting it to the wall, or
utilize the same spacer as many times needed to complete an unlimited PFW 6870 video wall pop-out module.
1. Make sure the spacer is plumb and level and mark each corner where the PFW 6870 will be mounted (or
secure to the wall). It is best to start from the bottom corner and work your way up.
2. Install the second mount working in a horizontal direction.
3. Ensure that the mount remains plumb and level.
4. Repeat this step for each mount horizontally
5. To install multiple rows, place spacer between previously installed PFW 6870s on the bottom row. Make sure
the spacer is plumb and level, mark the corners (or secure to the wall) to be sure of where the PFW 6870
should be and secure your mount to the wall.
Step 2
Register Tabs Register Tabs
Start
