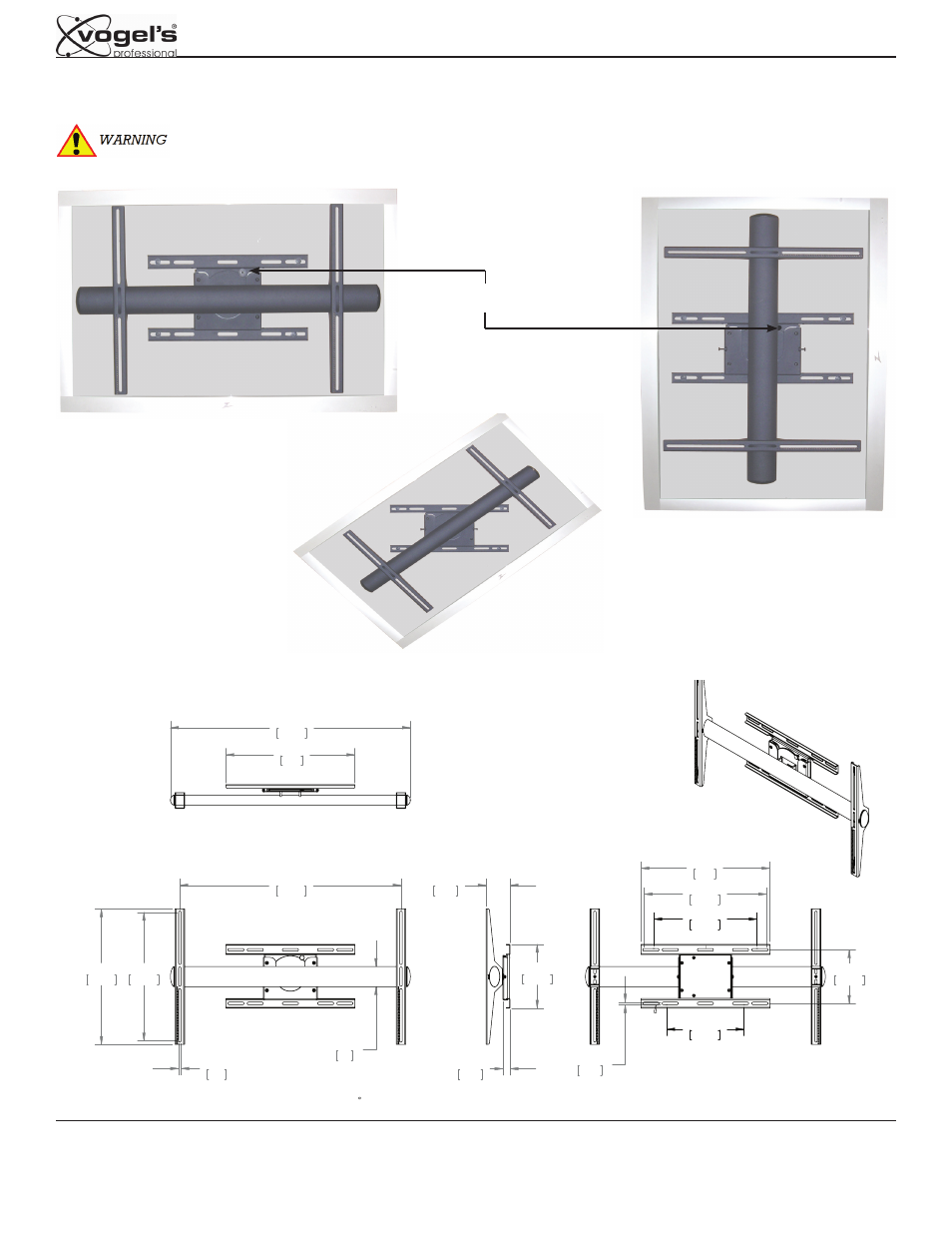

Display Orientation
The PFW 6854 will allow the user to adjust the display a full 360°.
Page 10 Installation Instructions
PFW 6854
BEFORE ROTATING THE PFW6854, MAKE SURE THAT THE M6 KNURL KNOB IS SECURELY FASTENED
TO THE PFW 6854. ALSO, PLEASE MAKE SURE YOU ALLOW ENOUGH CABLE AND WIRE CLEAR-
ANCE FOR FULL ROTATION.
1. To adjust the PFW 6854, rotate the display either
clockwise or counter-clockwise.
M6 Knurl Knob
2. Tighten the two Phillips
head locking screws (see Step 8,
Page 10).
Technical Specifications
All measurements are in inches (mm).
34.30
871.2
19.93
506.1
21.00
533.4
3.15
80
.38
9.5
360 ROTATION
3.73
94.7
9.91
251.6
1.13
28.8
20.00
508
37.20
944.9
19.00
482.6
8.30
210.9
20.00
508
.41
10.3
16.00
406.4
12.00
304.8
