Typical applications – Aube Technologies TH150 Series User Manual
Page 2
TH150
400-150-000-C 5/9/06 2/6

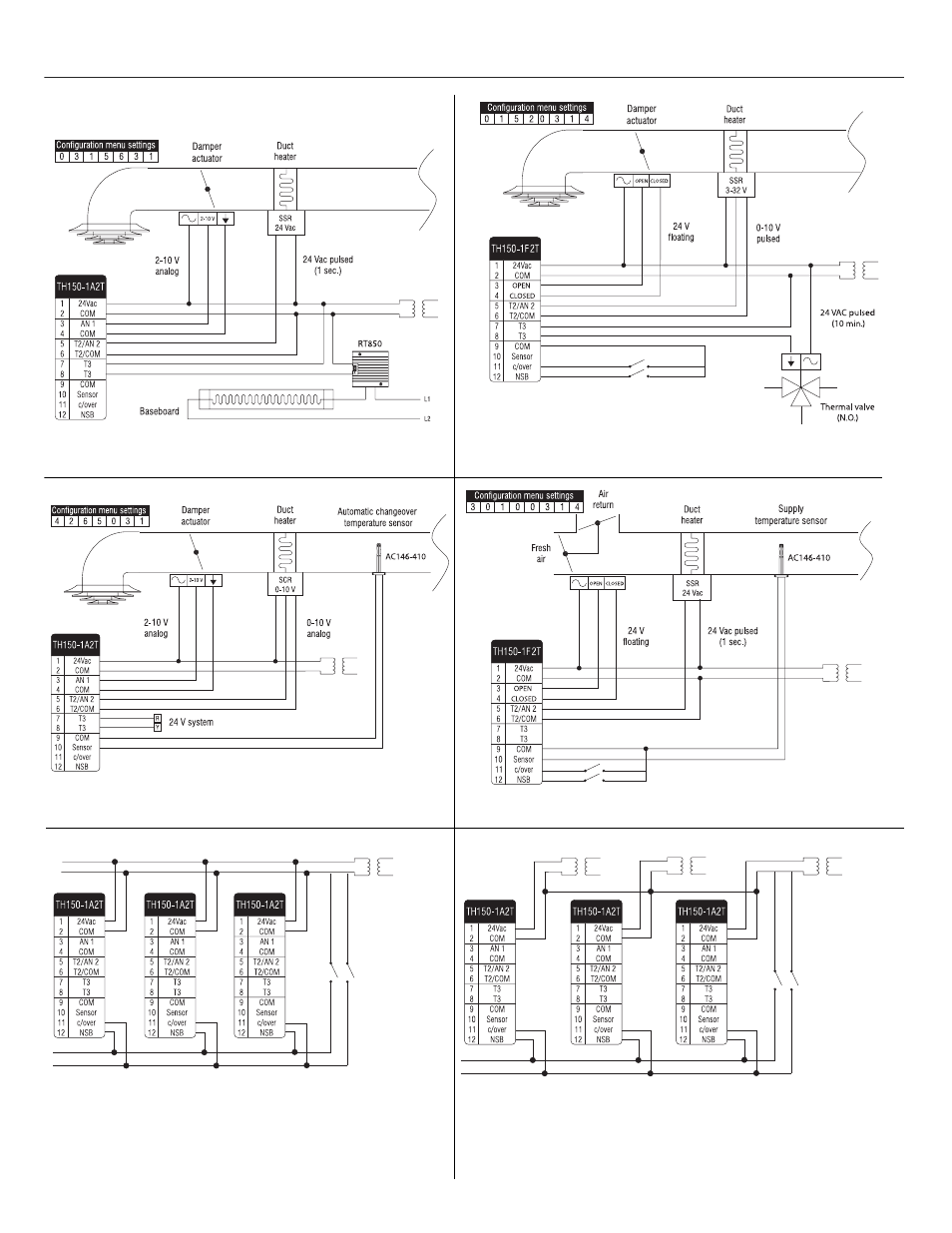

3. Typical Applications
FIGURE 1: Damper control with electric reheat and auxiliary
baseboard heating.
FIGURE 3: Damper control with automatic changeover, elec-
tric reheat and central cooling
FIGURE 5: Changeover and NSB inputs sharing the same
24-Vac transformer
FIGURE 6: Changeover and NSB inputs using different 24-Vac
transformers
FIGURE 4: Temperature control of fresh air supply
FIGURE 2: Damper control with electric reheat and auxiliary
hot-water heating
CAUTION
Do not connect
common to ground
CAUTION
Do not connect com-
mon to ground
