MSI MS-9643 (Super Q965) User Manual
Ms-9643, Pcimg 1.0 pci/isa sbc motherboard

2014H1
MSI reserves the right to change the specifications without prior notices.
47
HMI Panel PC
Embedded System
Embedded Board
EPIC Mainboard
COM Express Mainboard
3.5" Mainbaord
PICMG Mainboard
Mini-ITX Mainboard
Micro-ATX Mainboard
ATX Mainboard

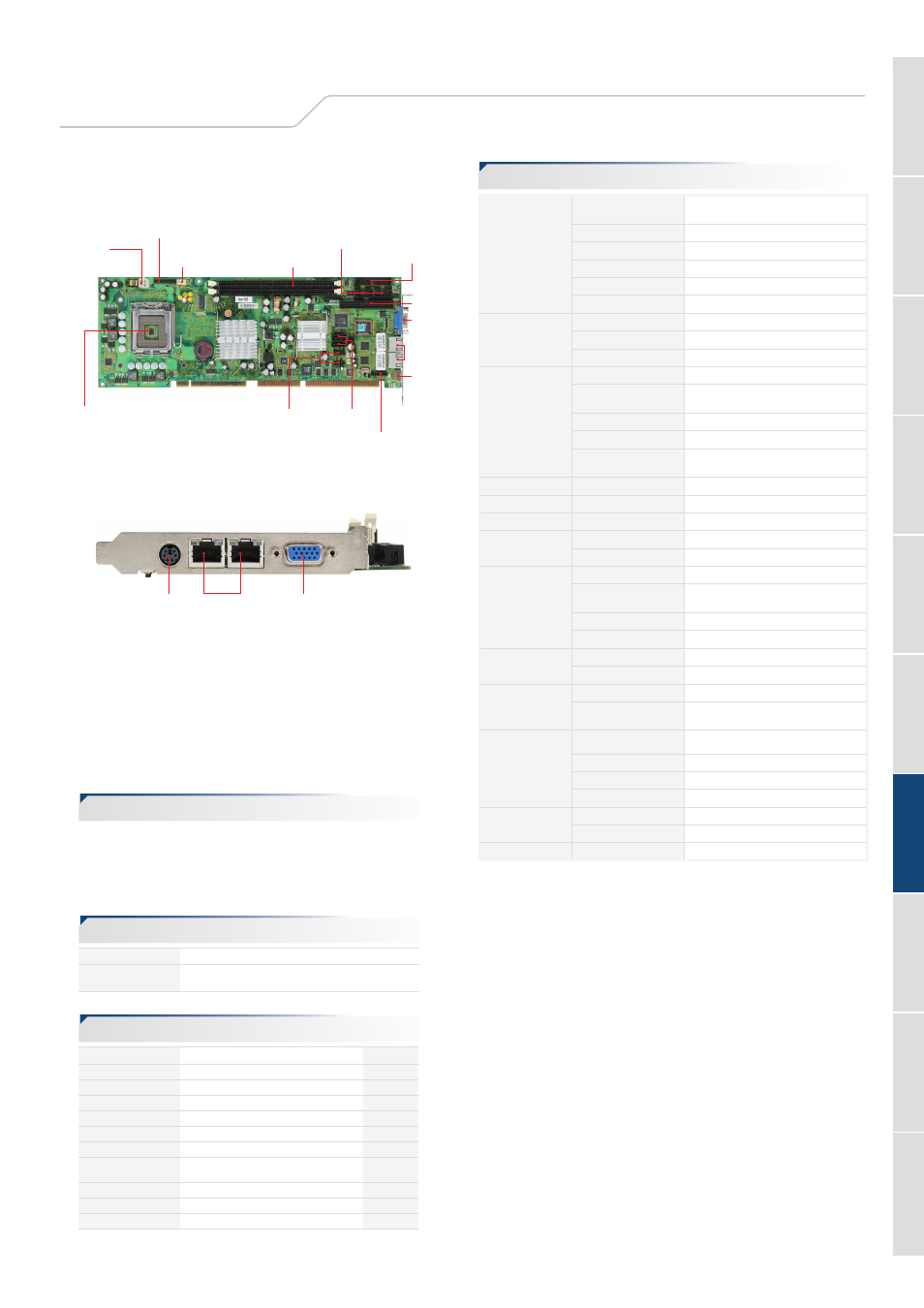

MS-9643
Features
Ordering Information
Packing List
Specifications
Part Number
Description
919-9643-011
MS-9643 Super Q965+2 Gb LAN+1 IDE port (Single
Board Computer)
VGA
Part Number
Description
Quantity
K1D-3004008-E06
SATA CABLE,POWER
1
G52-96431X5-Q13
USER MANUAL
1
G52-SXXXXX1-Q13
QUICK GUIDE
1
G71-SEDC002-J24
DRIVER CD
1
K12-1080099-E06
IDE ATA66 CABLE
1
K14-1009040-V03
COM PORT CABLE, 2*5pin,KEY10
1
K14-1034001-V03
COM PORT+2*5pin(KEY10)-
2*13pin(KEY26)
1
K1B-3008012-E06
USB CABLE
1
K1D-1008063-V03
SATA CABLE,SIGNAL
1
K39-3002004-E06
PS2 Y CABLE
1
CPU Socket
(LGA 775)
ATX Power
CPU Fan
Front Panel Indicator
Front Panel
Audio
DDR2 DIMM
LPT
COM1~2
4 x USB 2.0
4 x SATA2
VGA
2 x Gigabit LAN
2 x Gigabit LAN
PS2
PS2
•
Support Intel
®
Core™ 2 Duo, Core™ Duo, Pentium D
desktop processor
•
PCIMG 1.0 PCI + ISA expansion slot
•
Integrated dual GbE LAN and Audio
PCIMG 1.0 PCI/ISA SBC Motherboard
IDE
Processor
CPU
Intel
®
Pentium™ 4, Pentium™ D,
Celeron™ D Processor
Frequency
Depends on CPU
L2 Cache
Depends on CPU
CPU Type
Socket (LGA 775)
Chipset
Intel
®
Q965 + ICH8
BIOS
Award
Memory
Technology
Dual-channel DDR2 533/667/800MHz
Max. Capacity
Up to 4 GB
Socket
2 x 240-pin DIMMs
Display
Controller
Intel
®
GMA3100 Graphics
Graphic Memory
Shared system memory up to 256 MB
SDRAM
VGA
1
Multiple Display
Single display
Display Mode
LVDS up to 1920 x 1080
VGA up to 1920 x 1080
Ethernet
Controller
2 x Marvell 88E8056A2 GbE LAN
Audio
Controller
Realtek
®
ALC888 HD Audio Codec
Super I/O
Controller
Winbond W83627EHG
H/W Monitor
Watchdog Timer
256-level Watchdog Timer
Smart Fan
Yes
I/O Interface
USB
4 x USB 2.0 (internal)
Serial
2 x COM (internal)
COM1&2: RS-232/422/485
Parallel
1 (pin header)
PS/2
1
Storage
SATA
2 x SATA 2.0
IDE
1
Power Supply
DC
N/A
ATX
ATX/AT-Power 12V-4P, power from
PICMG 1.0 backplane
Environment
Operating
Temperature
0 ~ 60°C
Operating Humidity
10 ~ 90%, non-condensing
Storage Temperature
-20 ~ 80°C
Storage Humidity
10 ~ 90%, non-condensing
Form Factor
Dimensions
338mm x 122mm (PICMG 1.0)
Weight
0.40 kg
Certification
EMC
FCC, CE, C-Tick, VCCI, BSMI
