MSI Fuzzy 945GME2 V1.0 User Manual
Page 24
2-10
MS-9642 Mainboard

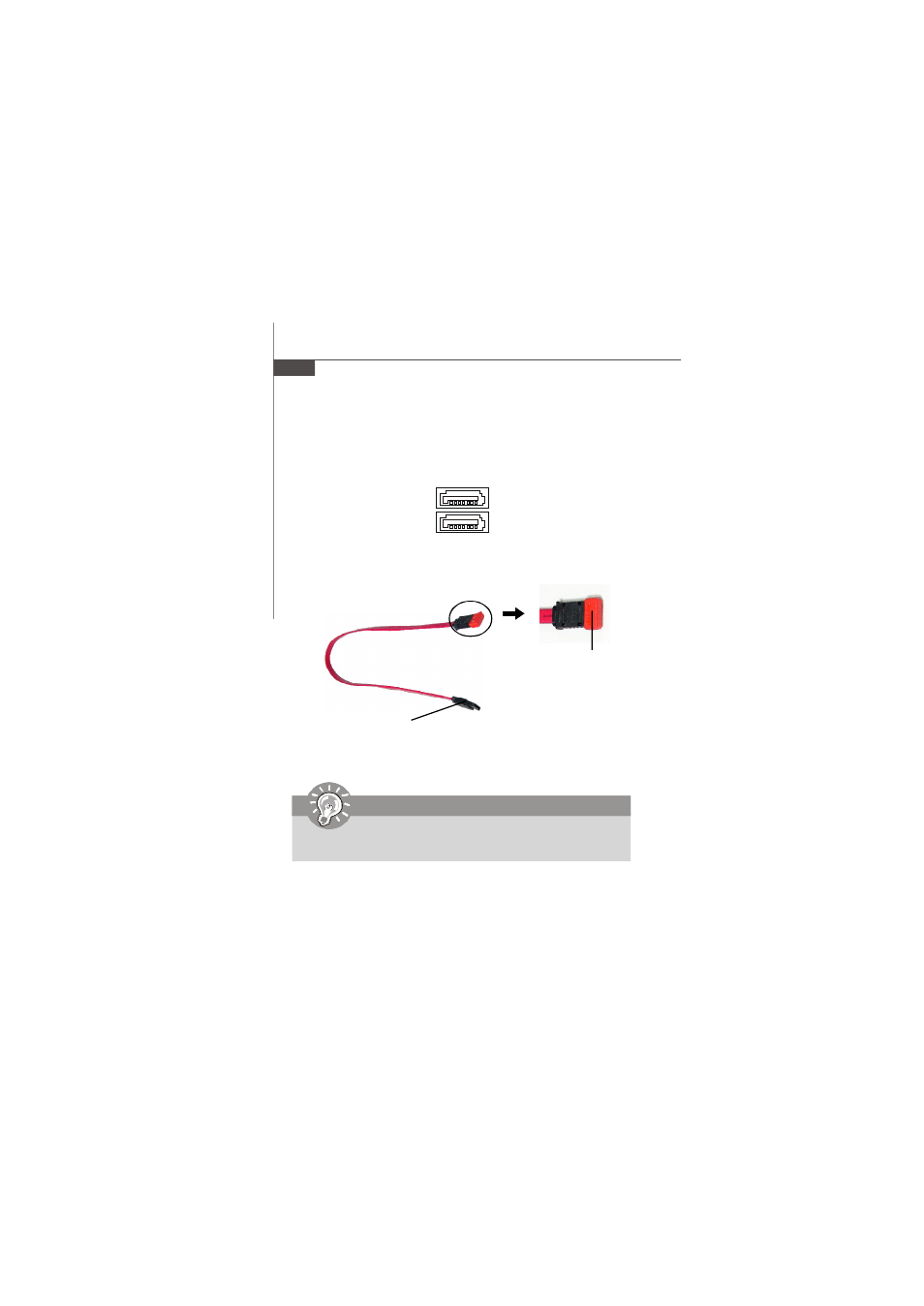

Connect to SATA1/2
Take out the dust cover
and connect to the hard
disk devices
Serial ATA cable
Serial ATA Connectors: SATA1, SATA2
SATA1~SATA2 are high-speed SATA interface ports and support SATA data rates of
150MB/s. Each SATA connector can connect to 1 hard disk device and is fully com-
pliant with Serial ATA 1.0 specifications.
Important
Please do not fold the Serial ATA cable into 90-degree angle. Otherwise,
data loss may occur during transmission.
SATA1
SATA2
