MSI Fuzzy 945GME3 - Manual

MSI reserves the right to change the specifications without prior notices. 2014H1
68
MS-9642-GME3
Specifications
Features
Ordering Information
Packing List
Part Number Description
919-9642-009
MS-9642 VER 30 INTEL 945GME, SOCKETM, ATX
POWER IN, DUAL LANS
Part Number Description Quantity
E21-9642011-C22 O SHIELD 1
E32-0900331-A21 FANSINK 1
G52-96421X4-Q13 USER MANUAL 1
G71-SEDC011-J24 DRIVER CD 1
K10-1026001-V03 PRINTER PORT FLY CABLE 1
K11-1084001-V03 IDE CABLE 1
K1D-3004008-E06 SATA CABLE, POWER 2
K1D-1008055-E06 SATA CABLE, SIGNAL 2
K14-1018003-V03 INT COM PORT CABLE 1

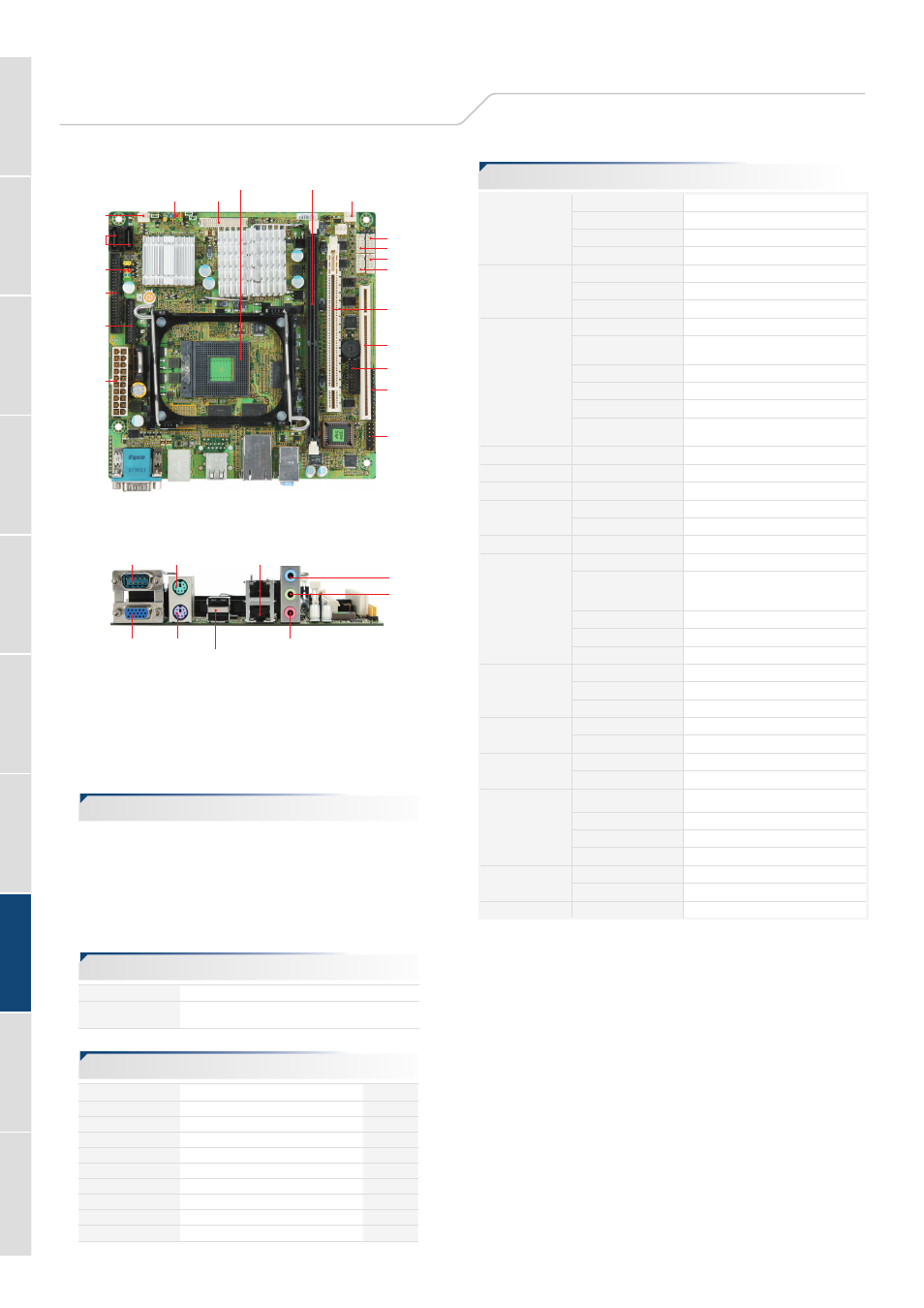

Front Panel
Audio
2 x
USB 2.0
2 x SATA2
ATX Power
Audio Output
Intel ® Mini-ITX with Two LAN and 2 SATAII
PCI
COM3
System Fan
DDR2
SO-DIMM
CPU Socket
(PPGA 478)
LVDS
Front Panel
Indicator
CPU Fan
IDE
LPT
GPIO
PCIe x 16
2 x GbE LAN
2 x USB 2.0
Mic
COM1 PS/2-MS
Line-out
PS/2-KB VGA
Line-in
• Support Intel ® Core™ 2 Duo, Core™ Duo, Celeron ®
Mobile processor
• Support dual Intel ® GbE LAN
• Support DDR2 667 memory up to 2GB
• Support PCIe x 16 slot for high-end graphic and
PCIe x1/x4/x8/x16 card
COM2
COM5
COM4
HMI Panel PC
Embedded System
Embedded Board
EPIC Mainboard
COM Express Mainboard
3.5" Mainbaord
PICMG Mainboard
Mini-ITX Mainboard
Micro-ATX Mainboard
ATX Mainboard
Processor
CPU Intel ® Pentium M, Celeron M Processor
CPU Type Socket (mPGA 478)
Chipset Intel ® 945GME + ICH7M
BIOS Award
Memory
Technology Dual-channel DDR2 533/667MHz
Max. Capacity Up to 2GB
Socket 1 x 240-pin DIMM
Display
Controller Intel ® HD Graphics
Graphic Memory
Shared system memory up to 256 MB
SDRAM
LVDS Single channel 24-bit
VGA 1
Multiple Display 2 independent displays
Display Mode
VGA up to 1920 x 1080
LVDS up to 1920 x 1200
Ethernet Controller 2 X Intel ® 82573L GbE LAN
Audio Controller Realtek ® ALC888 HD Audio Codec
Super I/O Controller Winbond W83627EHG
H/W Monitor
Watchdog Timer 256-level Watchdog Timer
Smart Fan Yes
TPM Controller Pin header
I/O Interface
USB 4 x USB 2.0 (2 x rear; 2 x internal)
Serial
5 x COM (COM1: rear; COM2~5: internal)
COM1: RS-232
COM2~5: RS-232/422/485, 0V/5V/12V
Parallel 1
PS/2 1
GPIO 16-bits (8 x GPI; 8 x GPO), 5V
Expansion
Slot
PCIe x16 1
PCIe x1 1
PCI 1
Storage
SATA 2 x SATA 2.0
IDE 1
Power Supply
DC N/A
ATX ATX-Power 20P, 12V-4P
Environment
Operating
Temperature
0 ~ 60°C
Operating Humidity 10 ~ 90%, non-condensing
Storage Temperature -20 ~ 80°C
Storage Humidity 10 ~ 90%, non-condensing
Form Factor
Dimensions 170mm x 170mm (Mini-ITX)
Weight 0.30 Kg
Certification EMC FCC, CE, C-Tick, VCCI, BSMI
