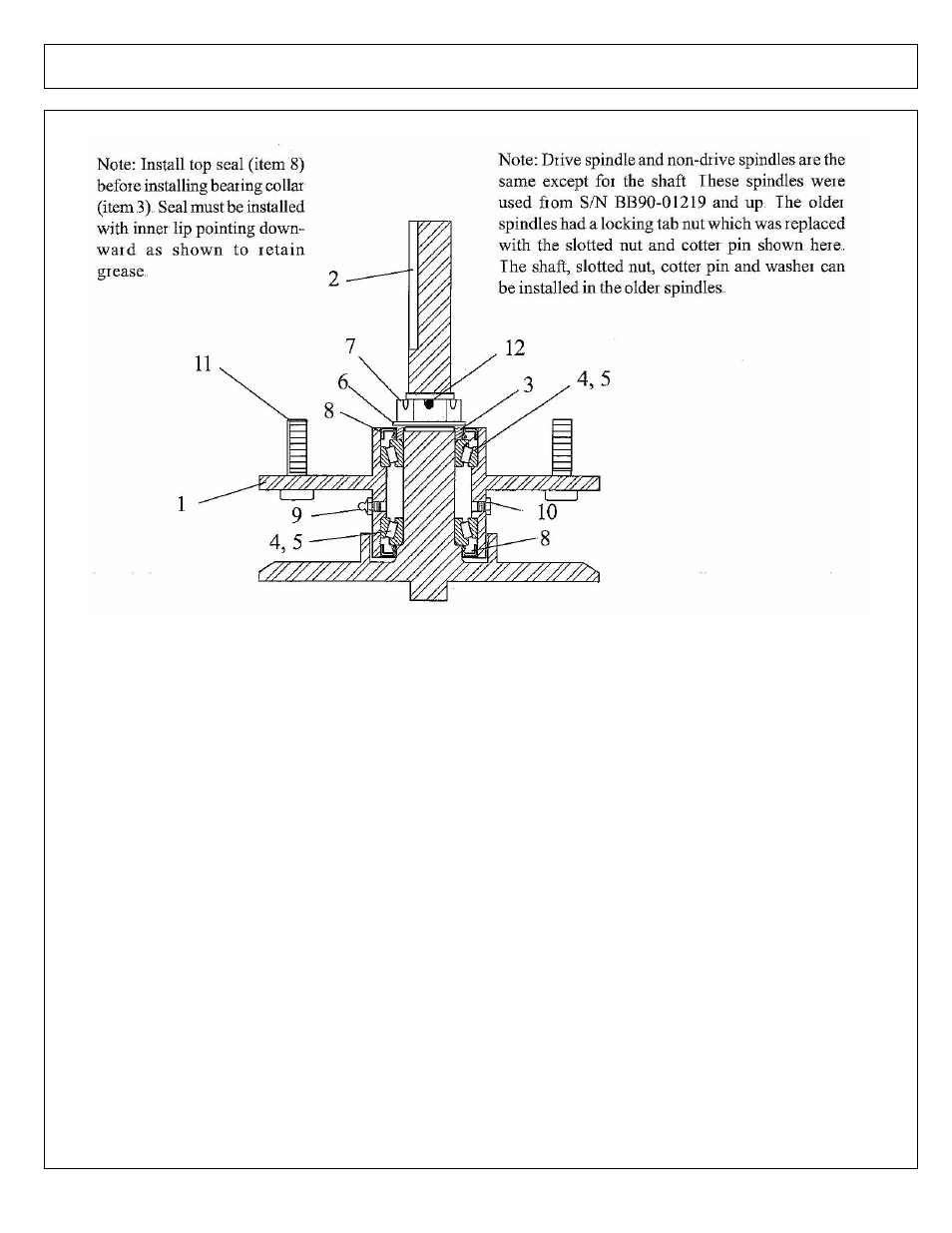

BUZZ BAR SPINDLE ASY - SN BB-01219
ITEM
PART NO. QTY.
DESCRIPTION
02978249
1
SPINDLE ASY, DRIVE SPINDLE (SHOWN)
02974235
-
SPINDLE ASY, NON-DRIVE (NOT SHOWN)
1
02974224
1
SPINDLE HOUSING, MACHINED
2
02978472
-
SPINDLE SHAFT, NON-DRIVE SPINDLE
02978257
1
SPINDLE SHAFT, DRIVE SPINDLE
3
02974234
-
COLLAR, BEARING PRELOAD
4
70044
-
BEARING CUP, UPPER OR LOWER
5
5312314
-
BEARING CONE, UPPER OR LOWER
6
15C2000
-
WASHER, 1-1/4" HARDEND
7
5D20120
-
SLOTTED HEX NUT, 1-1/4"-12NF PL
8
00766549
-
SEAL, UPPER OR LOWER
9
00003500
-
GREASE FITTING, 1/8" STRAIGHT
10
02959018
-
GREASE RELIEF FITTING, 1-5LBS
11
00752177
-
BOLT, STUD 1/2"-20NF X 1-7/8"
12
00606000
-
COTTER PIN, 3/16" X 2"
