Alamo MACHETE 02968915P User Manual
Page 9

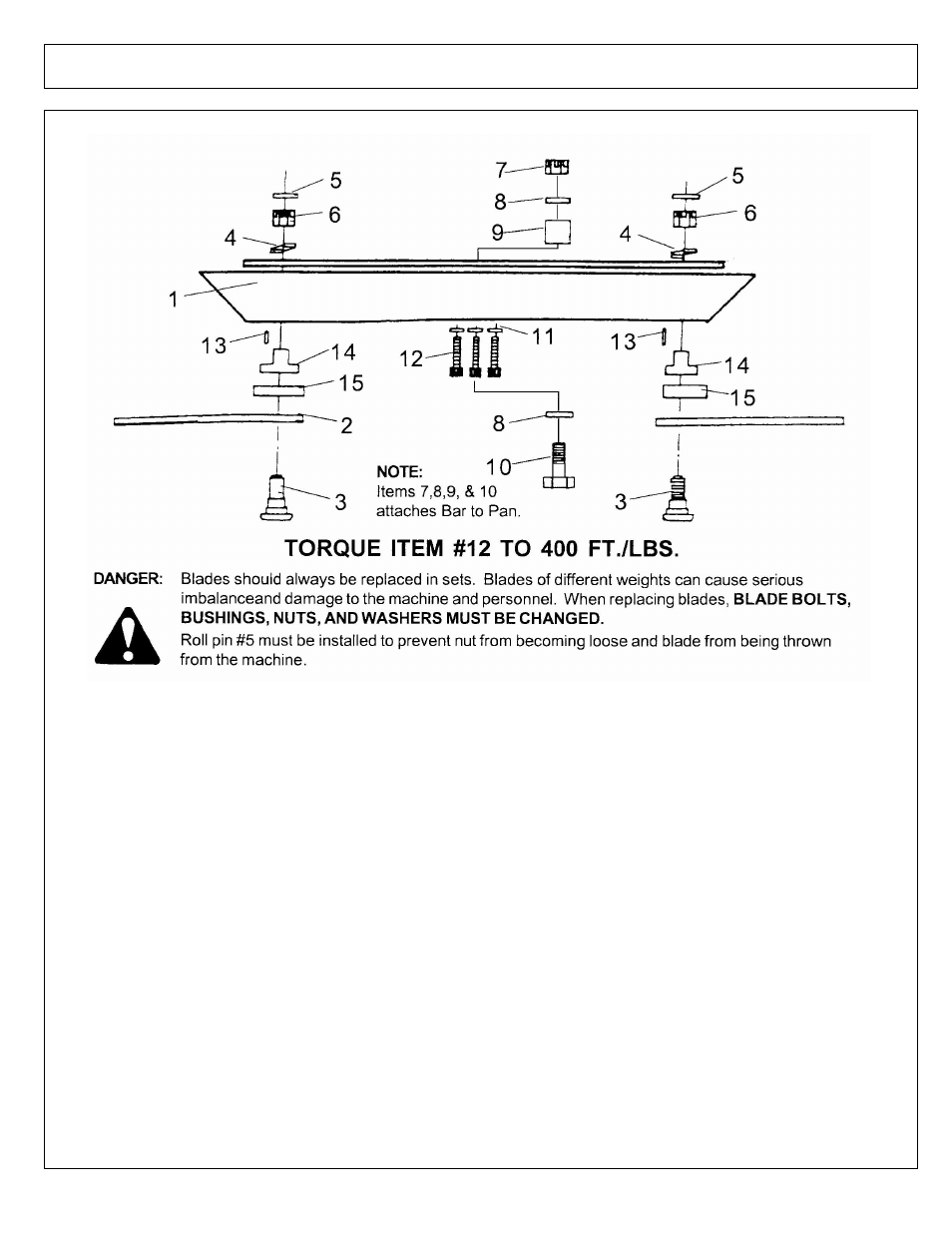

50 IN BLADE CARRIER ASY (PAN) - PN 02964457
ITEM
PART NO. QTY.
DESCRIPTION
02964457
-
BLADE / SPIDER PAN ASY
1
02964804
1
SPIDER PAN SUB-ASY (W/ ITEMS 7,8,9 & 10)
2
02962722
1
BLADE SET, MATCHED SET OF 3
3
02964330
3
BLADE BOLT
4
00755623
3
WASHER, SPECIAL ( HARDENED )
5
00023200
3
ROLL PIN
6
00020900
3
SLOTTED HEX NUT, 1-1/8"-NF PL GR5
7
02030300
3
LOCKNUT, 1"-NC PLB
8
00748547
3
FLATWASHER, 1-1/32" X 2-3/16" X.22"
9
02964162
3
SPACER
10
7A16824
3
BOLT, HEX HEAD 1"-NC X 3"PL GR5
11
00003901
4
LOCKWASHER, 3/4" PL HEAVY
12
02886600
4
BOLT, SOCKET HEAD 3/4"-NC X 2-1/2" PL GR8
13
02964954
3
KEY
14
02964161
3
BUSHING
15
02965229
3
SPACER
©2011 Alamo Group Inc.
Parts Section -6
Machete Boom 17 21 and 24 04-04 Rev 01-11
