Hardware Setup
▍
MS-96D9
2-7
Hardware Setup
▍
MS-96D9
Yellow Green/ Orange
RJ-45 Serial Console Port
The RJ-45 serial console port allows direct connection to the Serial Console
Server for local access and configuration.
USB Port
The USB (Universal Serial Bus) port is for attaching USB devices such as key-
board, mouse, or other USB-compatible devices.
LAN
The standard RJ-45 LAN jack is for connec-
tion to the Local Area Network (LAN). You
can connect a network cable to it.
LED Color LED State Condition
Left Yellow Off LAN link is not established.
On (steady) LAN link is established.
On (blinking) The computer is communicating with another computer on the LAN.
Right Green Off 10 Mbit/sec data rate is selected.
On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.

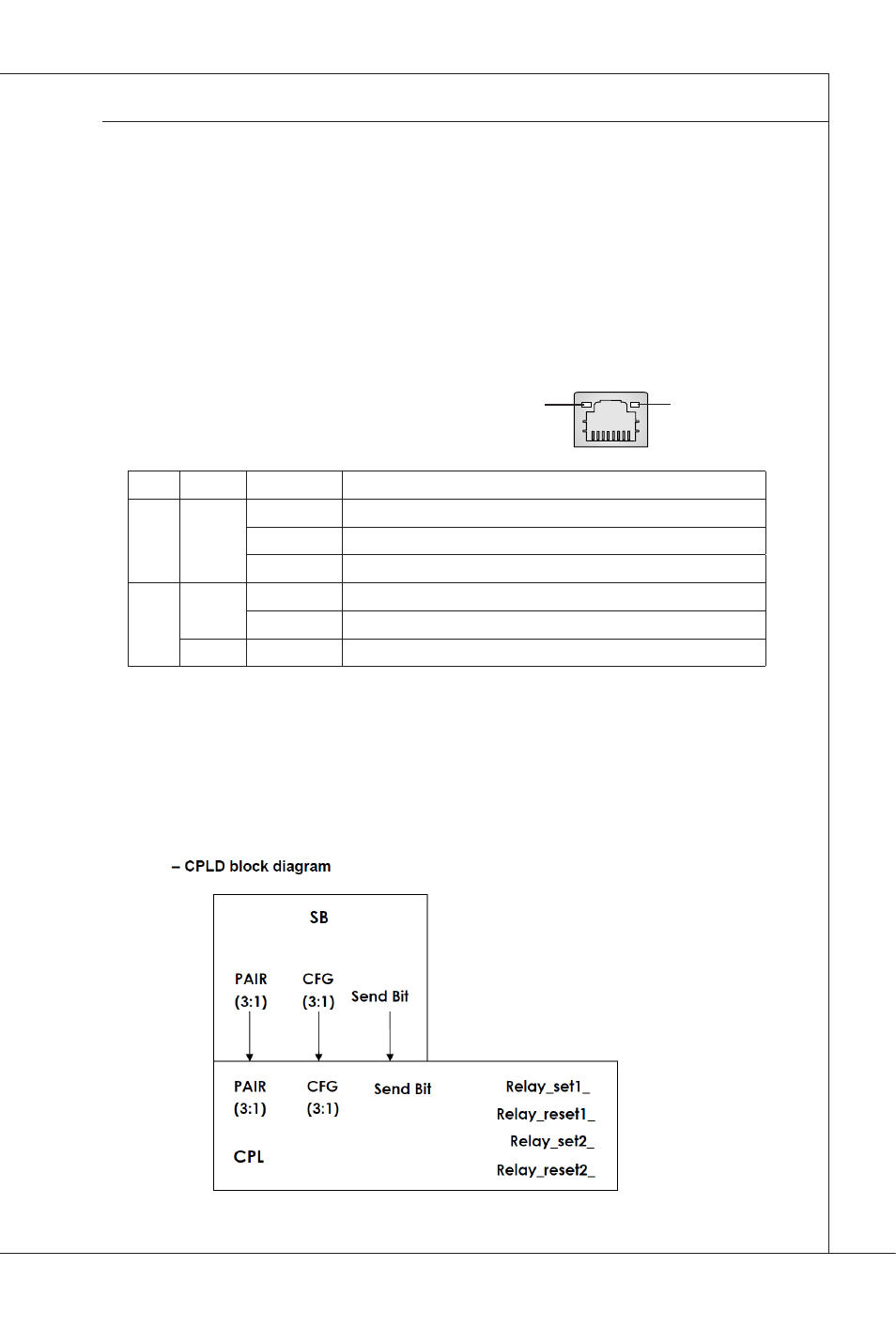

LAN Bypass Function Programming Guide
The Southbridge GPIO controls CPLD to realize LAN Bypass/PassThrough/WDT
function.
▶
▶
▶
ICH8M
