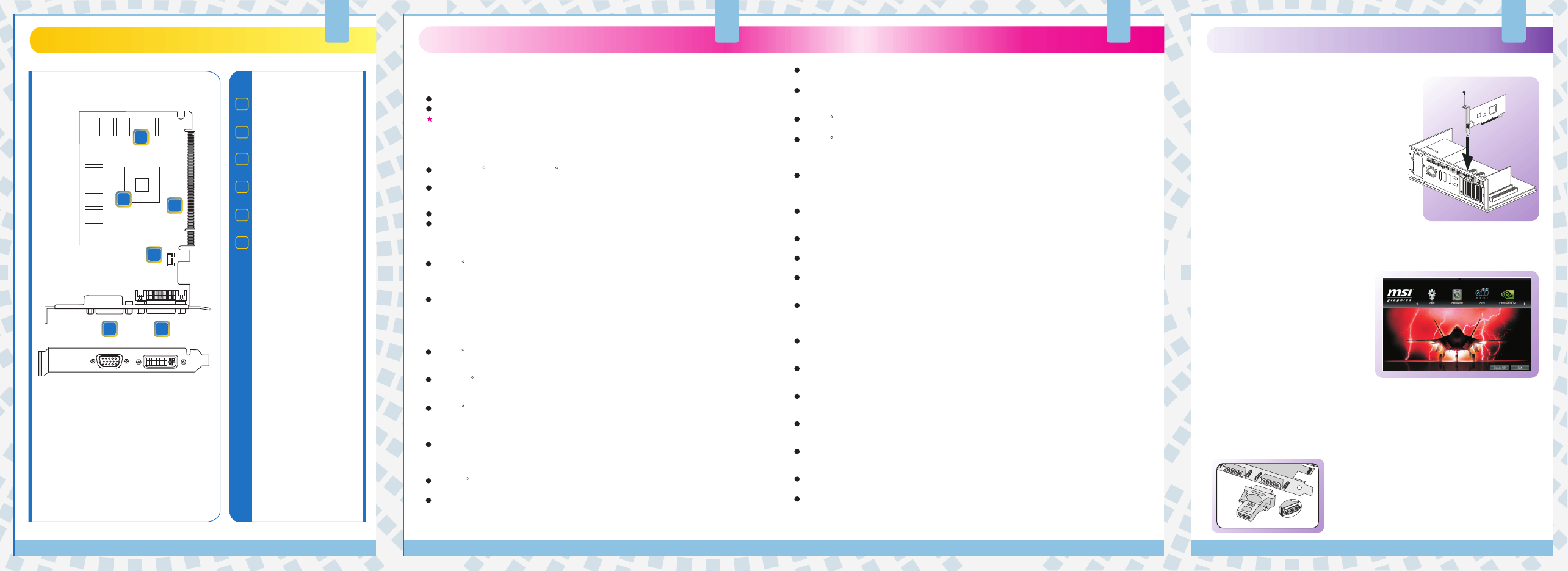

Hardware
G
etting Started
G
etting Started
G
etting Started
Q
uick Installation
O
verview
2 3 4 1
R
Card Features
For reference only
Unpacking
Please check out the following items to make sure that you get the complete product:
VGA card
Disk: Drivers, documentation, and applications
Consult your dealer immediately if anything is missing or damaged.
System Requirements
TM TM
I
nstalling MSI Live Update 3
512MB DDR2 memory
NVIDIA GeForce 210
PCI Express Interface
Fan Connector
D-Sub Port
DVI-I Port
- HDMI supported
- HDCP supported
- Dual-link DVI output
supported
The VGA card shown here
is for reference, and may
vary from the actual card.
For further information,
please visit msi website at
www.msi.com
1
2
4
3
6
5
2
To install the VGA card, your computer system needs to meet the following requirements:
PCI Express or PCI Express 2.0 -
CD-ROM / DVD-ROM for driver installation
Visiting MSI website for further information of operating system support
compliant motherboard with one dual-width x16 graphics
slot
Minimum 350W or greater system power supply (with a minimum 12V current rating of 36A)
**Minimum system power requirement based on a PC configured with an Intel Core2Extreme
processor Qx9650
R R
NVIDIA Unified Architecture
Fully unified shader core dynamically allocates processing power to geometry, vertex,
physics, or pixel shading operations, delivering up to 2x the gaming performance of prior
generation GPUs.
Microsoft Windows 7 Support
Windows 7 is the next generation operating system that will mark a dramatic improvement in
the way the OS takes advantage of the graphics processing unit (GPU) to provide a more
compelling user experience. By taking advantage of the GPU for both graphics and
computing, Windows 7 will not only make today's PCs more visual and more interactive but
also ensure that they have the speed and responsiveness customers want.
TM NVIDIA PhysX - Ready
GeForce GPU support for NVIDIA PhysX technology,enabling a totally new class of physical
gaming interaction for a more dynamic and realistic experience with GeForce.
Microsoft DirectX 10 Support
DirectX 10 GPU with full ShaderModel 4.0 support delivers unparalleled levels of graphics
realism and film-quality effects for today's hottest games.
TM NVIDIA CUDA Technology
CUDA technology unlocks the power of the GPU's processing cores to accelerate the most
demanding system tasks - such as video transcoding - delivering up to 7x performance over
traditional CPUs.
PCI Express 2.0 Support
Designed for the new PCI Express 2.0 bus architecture offering the highest data transfer
speeds for the most bandwidth-hungry games and 3D applications, while maintaining
backwards compatibility with existing PCI Express motherboards for the broadest support.
OpenGL 2.1 Optimization and Support
Provides top-notch compatibility and performance for OpenGL applications.
Dual 400MHz RAMDACs
Blazing-fast RAMDACs support dual QXGA displays with ultra-high, ergonomic refresh
ratesup to 2048x1536@85Hz.
R
R
R
R
R
16x Anti-aliasing Technology
Lightning fast, high-quality anti-aliasing at up to 16x sample rates obliterates jagged edges.
128-bit floating point High Dynamic-Range (HDR) Lighting
Twice the precision of prior generations for incredibly realistic lighting effects--now with support
for anti-aliasing.
TM NVIDIA Lumenex Engine
Delivers stunning image quality and floating point accuracy at ultra-fast frame rates.
TM NVIDIA PureVideo HD Technology
The combination of high-definition video decode acceleration and post-processing that delivers
unprecedented picture clarity, smooth video, accurate color, and precise image scaling for
movies and video.
Dual-link HDCP Capable
Designed to meet the output protection management (HDCP) and security specifications of the
Blu-ray Disc and HD DVD formats, allowing the playback of encrypted movie content on PCs
when connected to HDCP-compliant displays.
TM GigaThread Technology
Massively multi-threaded architecture supports thousands of independent, simultaneous threads,
providing extreme processing efficiency in advanced, next generation shader programs.
Bad Edit Correction
Recovers original film images from films-converted-to-video (DVDs, 1080i HD content),
providing more accurate movie playback and superior picture quality.
Noise Reduction
Improves movie image quality by removing unwanted artifacts.
Edge Enhancement
Sharpens movie images by providing higher contrast around lines and objects.
Advanced Spatial-Temporal De-Interlacing
Sharpens HD and standard definition interlaced content on progressive displays, delivering a
crisp, clear picture that rivals high-end home-theater systems
High-Quality Scaling
Enlarges lower resolution movies and videos to HDTV resolutions, while maintaining a clear,
clean image. Also provides downscaling of videos, including high-definition, while preserving
image detail.
Dual-link DVI Support
Able to drive industry's largest and highest resolution flat-panel displays up to 2560x1600 and
with support for High-bandwidth Digital Content Protection (HDCP).
HDMI 1.3a Support
Fully integrated support for HDMI 1.3a including xvYCC, Deep color and 7.1 digital surround
sound.
Hardware Decode Acceleration
Provides ultra-smooth playback of H.264, VC-1, WMV, DivX, MPEG-2 and MPEG-4 HD and SD
movies without the need for a dual or quad-core CPU.
Dual-stream Hardware Acceleration
Supports picture-in-picture content for the ultimate interactive Blu-ray and HD DVD movie
experience.
Dynamic Contrast Enhancement & Color Stretch
Provides post-processing and optimization of High Definition movies on a scene by scene basis
for spectacular picture clarity.
Enhanced Error Resilience
Correct errors or losses in broadcast content to ensure crisp, high quality playback.
R
R
5 6
1
2
3
4
TM TM
I
nstalling MSI Live Update 3
R R R R
Hardware
Follow the steps to install the VGA card:
1. Remove the computer case.
2. Locate the expansion slot on your mainboard.
Warning: Inserting the VGA card into a wrong
slot may damage your card (refer to your
mainboard manual for more Information).
3. Put the card directly over the slot
and press one end of the card into the slot first.
Gently but firmly press the other end until the
card is fully seated in the slot.
4. Secure the card with a bracket screw.
5. Install all other cards and devices and connect
all the cables, and then install the case.
6. Connect the monitor. Now, you are ready to
install the software on your computer.
below
expansion
Software
To install the driver of the VGA card to your computer, please follow the steps below:
1. Turn on the computer.
2. Insert the into the CD-ROM drive.
The Autorun program will start the
Setup program, and show the setup
screen as illustrated here.
CD
3. Click the Driver icon. Follow the on-
screen instructions to complete the
installation.
4. After finishing the installation, restart
the computer as instructed.
Tip: If, on your computer, the Autorun program does not execute automatically, please
1) enable the CD-ROM drive auto-detect function from Control Panel; or 2) find and
run the setup.exe file manually from the CD.
Enabling HDMI Output
1. Find the DVI-to-HDMI adapter that comes with the
package, if provided.
2. Attach the
3. Ensure that the adapter is firmly installed.
Consult your dealer to
purchase the adapter if it is not provided.
DVI-to-HDMI adapter to the DVI connector.
Follow the steps to enable HDMI Output function: below
