1-9 Getting Started

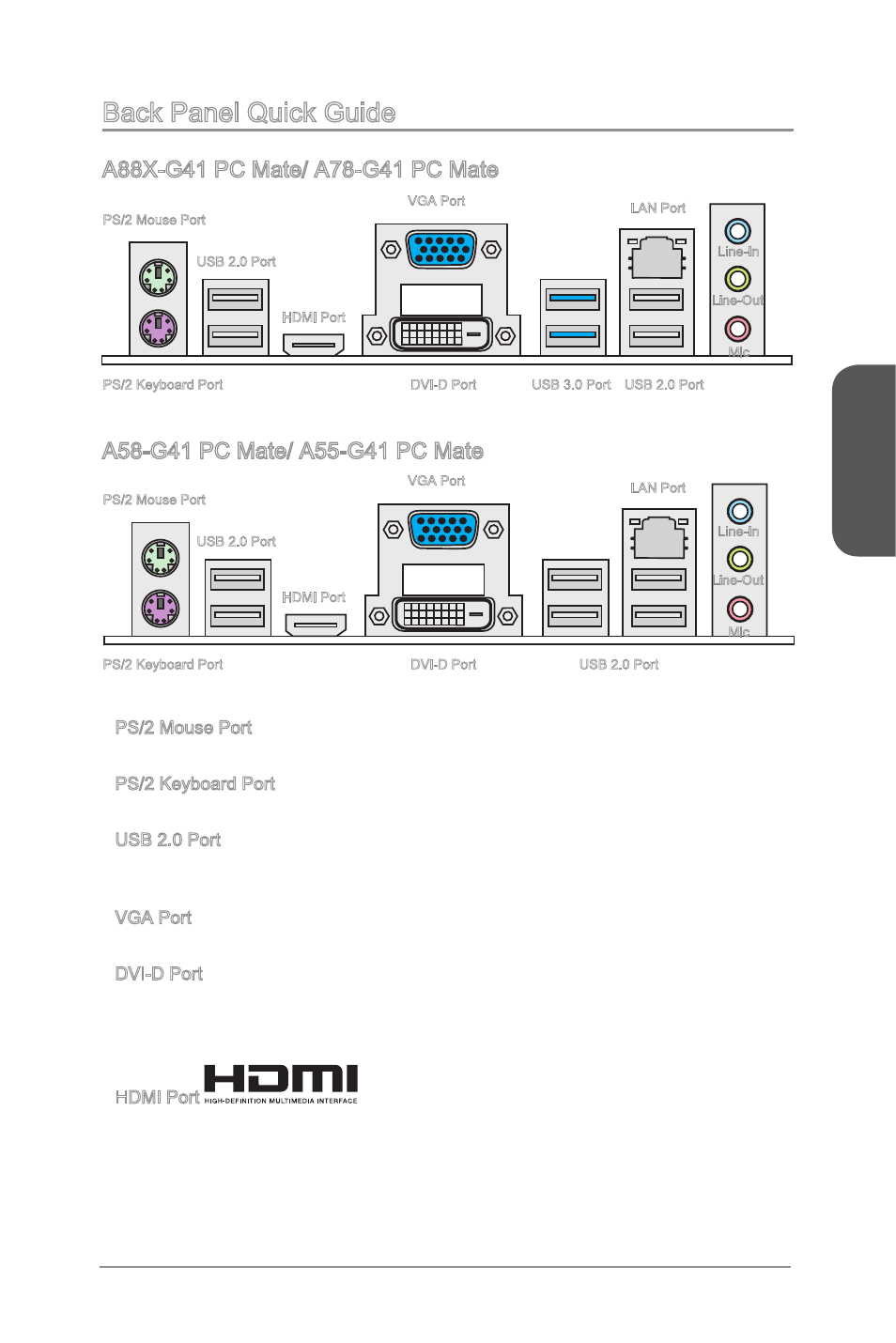

Back Panel Quick Guide
PS/2 Mouse Port
The PS/2 ® mouse DIN connector for PS/2 ® mouse.
PS/2 Keyboard Port
The PS/2 ® keyboard DIN connector for PS/2 ® keyboard.
USB 2.0 Port
The USB 2.0 port is for attaching USB 2.0 devices such as keyboard, mouse, or other
USB 2.0-compatible devices.
VGA Port
The DB15-pin female connector is provided for monitor.
DVI-D Port
The DVI-D (Digital Visual Interface- Digital) connector can be connected to a LCD
monitor, or a CRT monitor with an adapter. To connect a monitor, please refer to the
monitor’s manual for more information.
HDMI Port
®
The High-Definition Multimedia Interface (HDMI) is an all-digital audio-video interface
that is capable of transmitting uncompressed streams. HDMI supports all types of TV
formats, including standard, enhanced, or high-definition video, plus multi-channel
digital audio on a single cable.
▶
▶
▶
▶
▶
▶
Line-In
Line-Out
Mic
USB 3.0 Port
LAN Port
PS/2 Keyboard Port
USB 2.0 Port
HDMI Port
VGA Port
DVI-D Port
PS/2 Mouse Port
Line-In
Line-Out
Mic
USB 2.0 Port
LAN Port
PS/2 Keyboard Port
USB 2.0 Port
HDMI Port
VGA Port
DVI-D Port
PS/2 Mouse Port
USB 2.0 Port
A88X-G41 PC Mate/ A78-G41 PC Mate
A58-G41 PC Mate/ A55-G41 PC Mate
