Arkon SM5-TY6009G3 - Manual

!
Safety Precautions
Do not install Arkon products over an air bag cover or within the air
bag deployment zone. Arkon Resources, Inc. assumes no responsi-
bility of liability for injury or death as a result of car crashes and / or
air bag deployment.
Arkon is not responsible for any damages caused to your car, your
device, or yourself due to the installation or use of this pedestal mount.
The Mobile Mounting Specialists™
Consumer Hotline:
USA (800) 841-0884
INT’L (626) 254-9005
Monday - Friday 9 am - 5 pm, PST

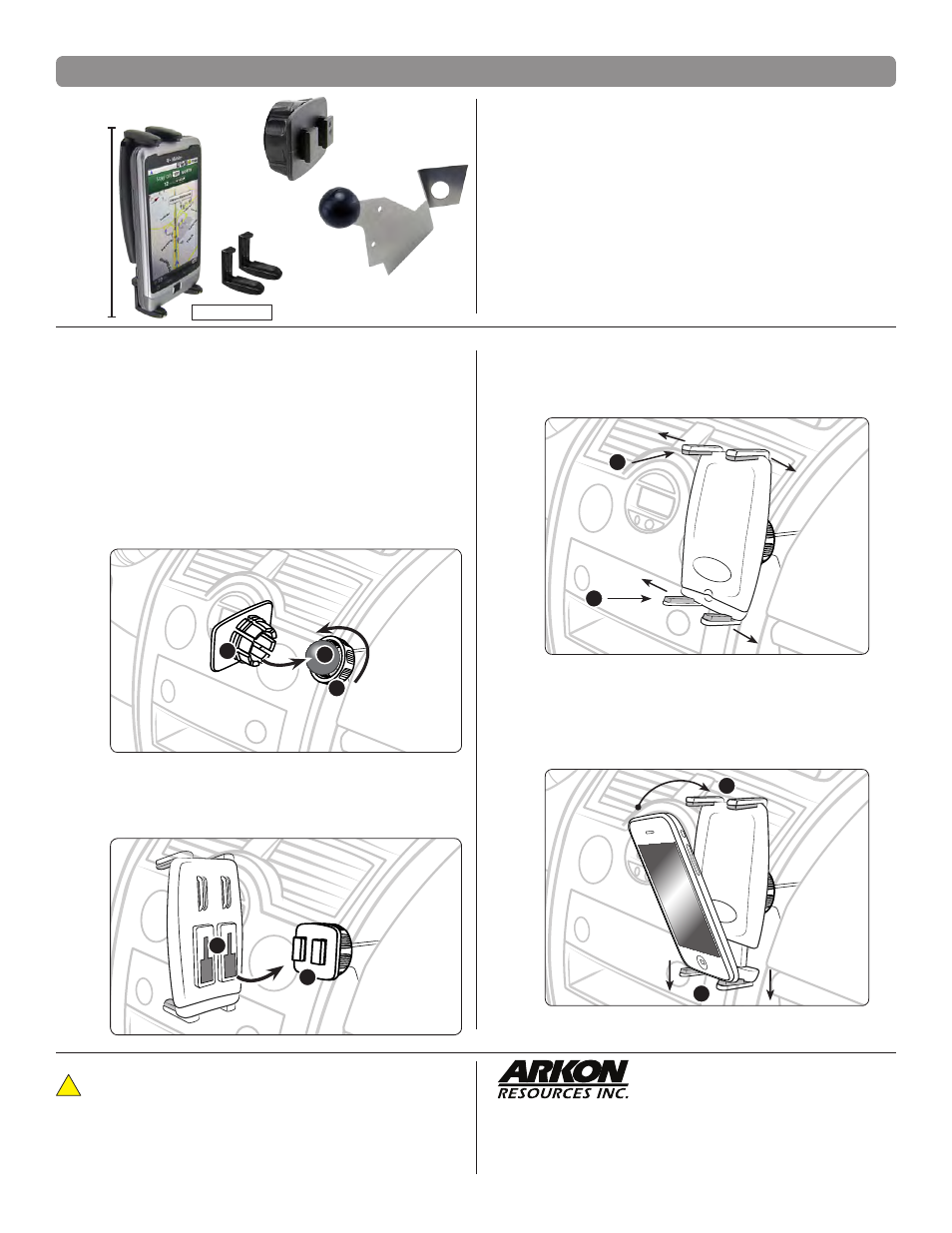

Install the Vehicle Specific Mounting Bracket
Connect Dual-T Head to VSM Bracket
Step 1.
SM5-TY6009G3 |
Vehicle Specific Mounting Bracket with Slim-Grip™ Universal Mobile Phone Holder
Patent Pending
www.arkon.com
Arcadia, CA 91006 USA
Designed in USA | Made in the USA & China
© Copyright 2010 Arkon Resources, Inc.
See the included Pro.Fit VSM Bracket manual for instructions
on installing the VSM Bracket. Arkon reccomends that you
have the VSM bracket professionally installed. Arkon is
not responsible for any unintended damaged caused by
installation of the VSM Bracket.
Step 1. Slip the tightening ring (A) over the VSM bracket ball. Snap
the dual-T head adapter plate (B) on to the bracket ball
(C). Screw the tightening ring over the adapter plate until
securely holding the plate. Adjust the angle as needed.
Package Contents:
(1) TY-60-09-G3 - Pro.Fit Vehicle Specific Mounting Bracket*
(1) SM050-HPB-2 - Slim-Grip™ Universal mobile phone holder
(1) SP-SM050-LF - Extra Long Support Legs (2 Pack) for larger phones
(1) SP-SBH-Kit - Dual-T Head with Swivel Ball Socket & Locking Ring
Step 1.
Step 1.
Attach Holder to Dual-T Head
Connect the dual T-slots (A) on holder to the dual T-tabs (B)
on the pedestal head.
If necessary, adjust the support legs (D) by sliding them
laterally. These provide support for your device (sold
seperately) .
Slim-Grip™ Holder Instructions
Support the holder in place with your hand. Place device on
the lower support legs (E) and push down with moderate
pressure to activate the spring-loaded grip mechanism.
Slide the top of the device under the top support legs (F)
until it fits snuggly against the holder.
Step 2.
Step 3.
TY-60-09-G3 Pro.Fit™
Vehicle Specific Mounting Bracket (See
included Pro-Fit manual for instructions)
SP-SBH-Kit
Dual-T Head with
Swivel Ball Socket &
Locking Ring
Compatible with:
• Most non-flip style phones regardless of whether protective skin or
sleeve (sold separately) is attached to the phone.
*See included Pro.Fit maual for Vehicle Specific Mounting Bracket instructions. For
questions regarding installation of the Vehicle Specific Mounting Bracket, contact Pro.Fit
directly at 800.388.0073.
A
A
B
B
C
D
D
E
F
* If necessary, install the (2) extra long support legs
(SP-SM050-LF) to accommodate large sized phones.
88mm
expandable to
138mm
with Extra
Long Support
Legs
SM050-2 Slim-Grip™
Universal Phone Holder
SP-SM050-LF
Extra Long
Support Legs
(2 Pack)
