Arkon CM084-2-AMPS - Manual

CM084-2-AMPS | 9” Floor or Console Mounting Pedestal
!
WARNING:
Drilling into the fl oor or console can permanently damage the
vehicle. Use caution and consult a mobile install professional to
avoid drilling into the gas tank, electrical system or other highly
sensitive vehicle components.
Arkon Resources, Inc. is not responsible for any damages caused
to your car, your device, or yourself due to the installation or use of
the pedestal mount.
The Mobile Mounting Specialists™
www.arkon.com
Arcadia, CA 91006 USA
Made in Taiwan
© Copyright 2007 Arkon Resources, Inc.
Consumer Hotline:
(USA) (800) 841-0884
(INT’L) (626) 254-9005
Mon-Fri. 9am-5pm, PST
Find a safe, fl at location on the interior of the vehicle’s fl oor or
console to mount the pedestal.
Using the base as a template, drill three 1/8” holes and attach
base with the included self-tapping screws. Snap screw caps
in place over the screws on the base.
Screw the 9” fl exible steel arm securely into the base.
Step 1.
Step 2.
Step 3.

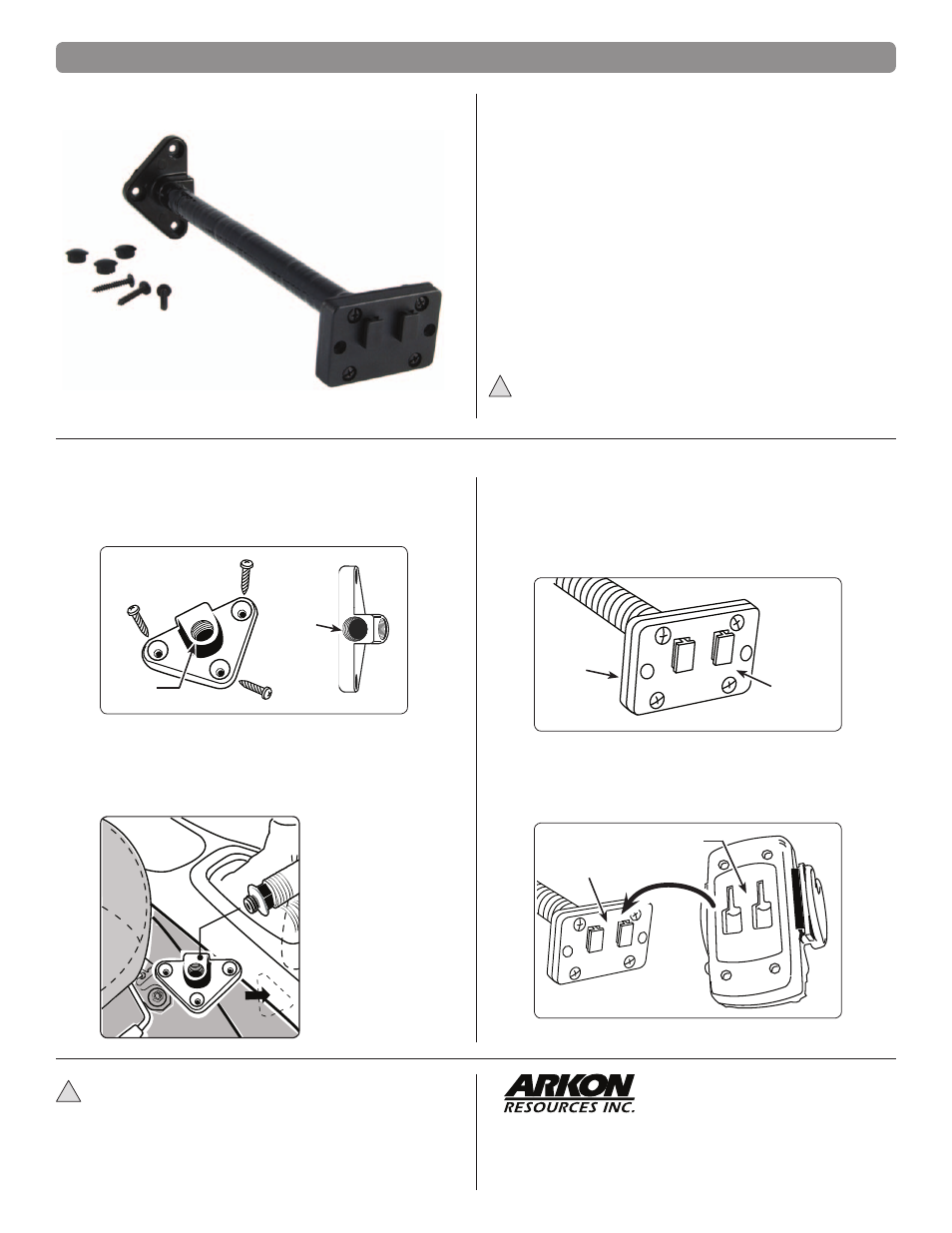

Installation Instructions
Floor or Console Mounting
Package Contents:
(1) CM084-2-AMPS - 9” Universal fl exible mounting arm
Includes threaded screws (3), screw caps (3), and
machine screws (4) for connecting to AMPS pattern
(1) AP032 - Dual T-tab to AMPS horizontal adapter plate
Tools required for fl oor or console mounting - drill and screwdriver.
Note: Do not twist the cradle or device while mounted on top of the
pedestal to adjust the steel shaft as this can break the dual T-slots.
Precaution: This solution requires drilling which may damage your
vehicle. Consult with a mobile install professional prior to installation.
Arkon Resources, Inc. assumes no responsibility of liability for damage
to your vehicle.
Do not install this pedestal in an airbag deployment zone
or where windshield vision may be impaired.
!
Attach the 4 hole AMPS pattern plate (if necessary) to the
other end of the mounting arm with the included large hex
nuts. Fasten the AMPS to dual T-tab adapter plate to the
AMPS pattern plate with the included screws and nuts.
Adjust the gooseneck by bending with both hands to the
desired location of the cradle or device.
Attach the dual T-slots on the back of the cradle or device
to the dual T-tab adapter plate.
Step 5.
Step 6.
Step 7.
Floor
mount
Console
mount
Cradle - back
(Sold separately)
Dual T-tabs
Dual T-slots
AMPS
pattern
plate
AMPS to
dual T-tab
adapter
CM084-2-AMPS pedestal
(Adapter plate shown attached to pedestal)
