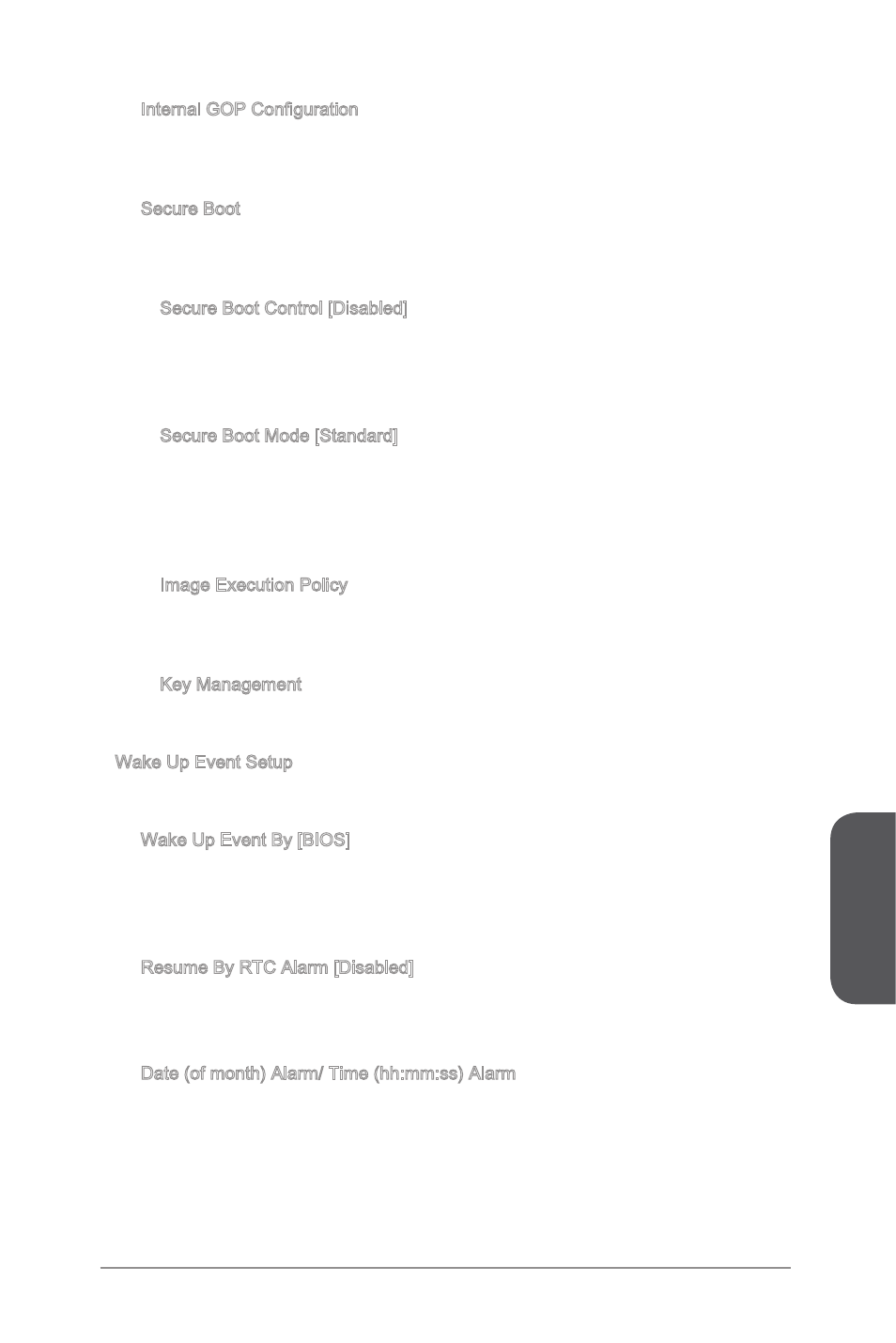

Internal GOP Configuration
Manages the onboard Graphics Output Protocol (GOP). Press
the sub-menu. This menu shows the iGFX Driver version for system information
management. This sub-menu will appear when “Windows 8 Feature” is enabled.
Secure Boot
Sets the Windows secure boot to prevent the unauthorized accessing. Press
Feature” is enabled.
Secure Boot Control [Disabled]
Enables or disables secure boot.
[Enabled]
Enables the secure boot function and allow you to set the secure
boot settings.
[Disabled]
Disables this function.
Secure Boot Mode [Standard]
Selects the secure boot mode. This item is to select how the secure boot keys
be loaded. This item appears when "Secure Boot" is enabled.
[Standard] The system will automatically load the secure keys from BIOS.
[Custom]
Allows user to configure the secure boot settings and manually
load the secure keys.
Image Execution Policy
Sets the policy when the system image execution policy on Security Violation.
Press
Boot Mode” sets to [Custom].
Key Management
Manages the secure boot keys. Press
menu will appear when “Secure Boot Mode” sets to [Custom].
Wake Up Event Setup
Sets system wake up behaviors for different sleep modes. Press
sub-menu.
Wake Up Event By [BIOS]
Selects the wake up event by BIOS or operating system.
[BIOS]
Activates the following items, and use these items to set the wake up
events.
[OS]
The wake up events will be defined by OS.
Resume By RTC Alarm [Disabled]
Disables or enables the system wake up by RTC Alarm.
[Enabled]
Enables the system to boot up on a scheduled time/ date.
[Disabled]
Disables this function.
Date (of month) Alarm/ Time (hh:mm:ss) Alarm
Sets RTC alarm date/ Time. If Resume By RTC Alarm is set to [Enabled], the
system will automatically resume (boot up) on a specified date/hour/minute/second
in these fields (using the <+> and <-> to select the date & time settings).
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
