3-20 BIOS Setup 3-21 BIOS Setup
Chapter 3
3-20 BIOS Setup 3-21 BIOS Setup

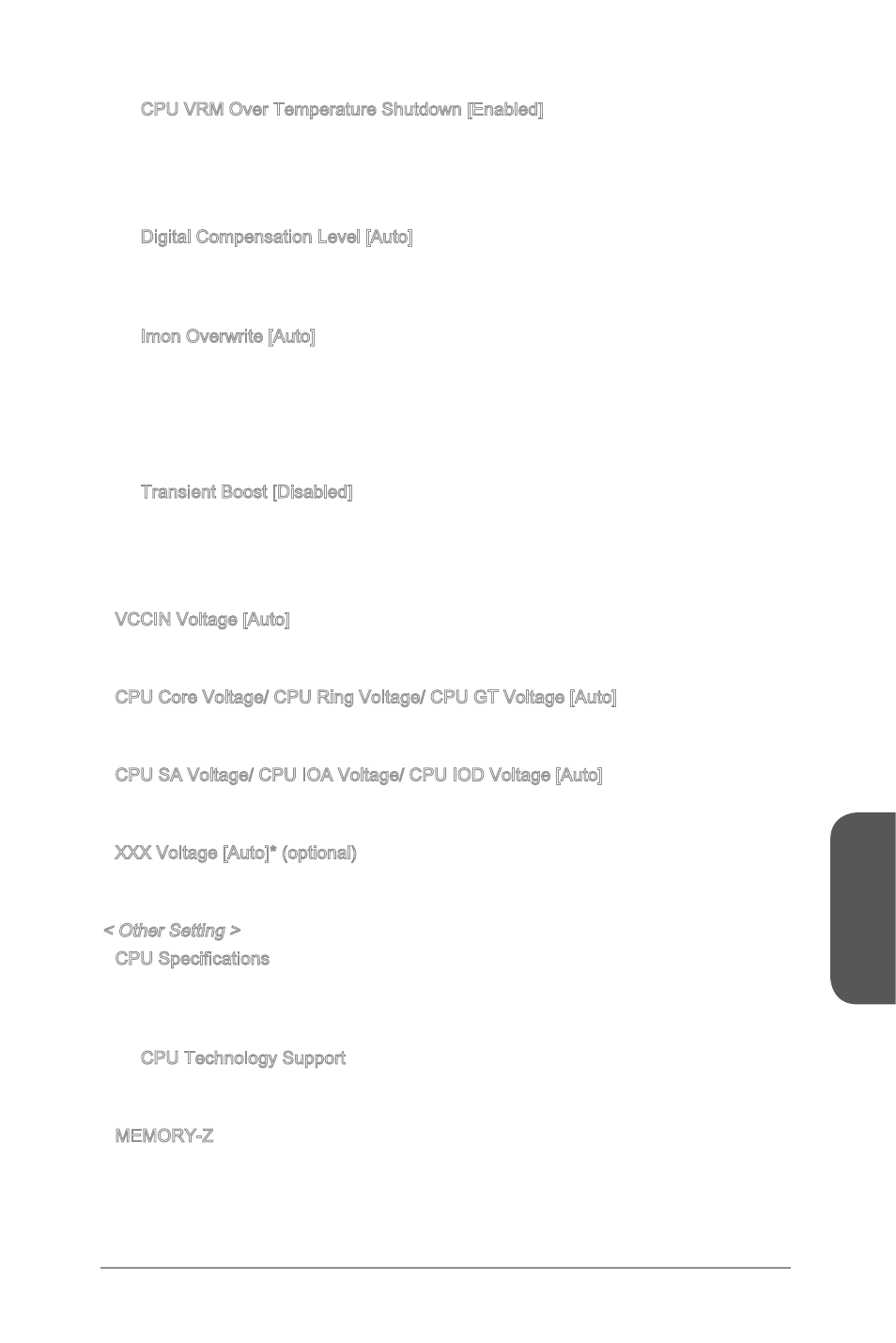

CPU VRM Over Temperature Shutdown [Enabled]
Sets the system whether be powered off or not when the CPU VRM temperature
over the limitation temperature of CPU VRM protection.
[Enabled] The system will be off when over the specified temperature.
[Disabled] Disables this function.
Digital Compensation Level [Auto]
Sets the current compensation level for CPU PWM when the MOS phases are
changed. If set to "Auto", BIOS will configure this setting automatically. Higher
compensation level provides more overclocking ability.
Imon Overwrite [Auto]
Sets the Imon current for CPU.
[Auto] This setting will be configured automatically by BIOS.
[Quarter] Sets the Imon current into quarter.
[Half] Sets the Imon current into half.
[Disabled] Sets the default values for Imon current.
Transient Boost [Disabled]
Enables or disables the transient boost.
[Enabled] Enables this function may lead into a stable system under heavy
loading.
[Disabled] Disables this function.
VCCIN Voltage [Auto]
Sets the CPU input voltage. The CPU input voltage is the CPU power source that is
shared with components of the CPU.
CPU Core Voltage/ CPU Ring Voltage/ CPU GT Voltage [Auto]
Sets the CPU Core/ Ring/ GT voltages. If set to "Auto", BIOS will set these voltages
automatically or you can set it manually.
CPU SA Voltage/ CPU IOA Voltage/ CPU IOD Voltage [Auto]
Sets the CPU SA/ IOA (IO Analog)/ IOD (IO Digital) voltages. If set to "Auto", BIOS
will set these voltages automatically or you can set it manually.
XXX Voltage [Auto]* (optional)
Sets the voltages related to memory/ PCH. If set to "Auto", BIOS will set the voltage
automatically or you can set it manually.
< Other Setting >
CPU Specifications
Press to enter the sub-menu. This sub-menu displays the information of
installed CPU. You can also access this information menu at any time by pressing
[F4]. Read only.
CPU Technology Support
Press to enter the sub-menu. The sub-menu shows what the key features
does the installed CPU support. Read only.
MEMORY-Z
Press to enter the sub-menu. This sub-menu displays all the settings and
timings of installed memory. You can also access this information menu at any time by
pressing [F5].
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
