KWorld VS-PCTV1600 - Manual (Page 7)

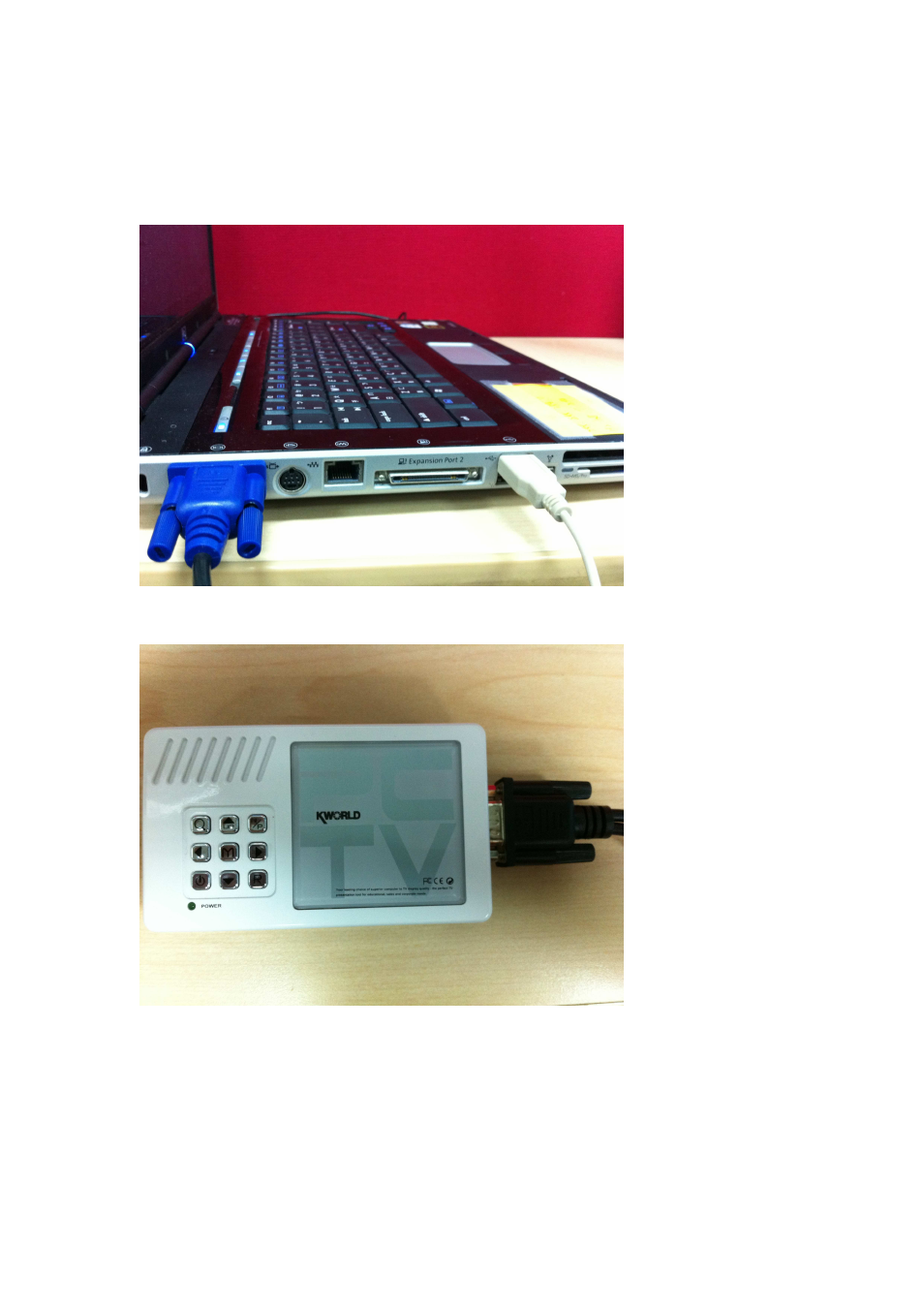

Connecting to a laptop:
1. Connect one of the blue connector of the Y-cable to the VGA port of laptop (It will
have the word “PC” on the blue connector).Then connect usb power cable into laptop
usb port.
2. Plug the black end (It will have “SCAN CNVTR” word) of the Y-cable to the
converter.
3. Plug the USB power cable (the gray one) into DC IN (for the USB power cable)
and plug the AV cable (the yellow one) to the Video Out port. Then connect another
end of the AV cable to a TV.
