13

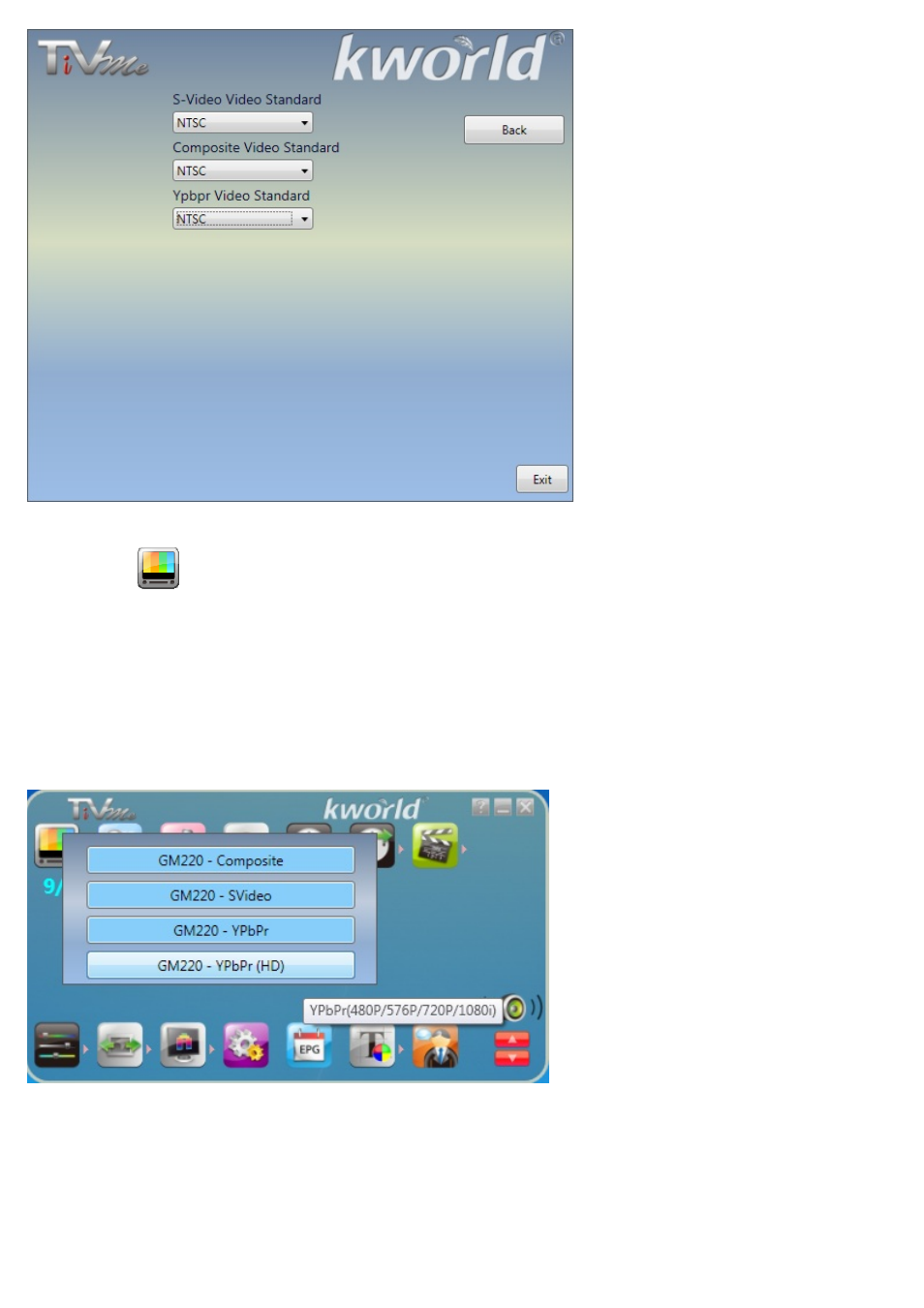

Please click

and select the right Source Input by your connection (Composite/S-Video/YPbPr/

YPbPr (HD)) in the TiVmed control panel.

Attention:
(If the Video input source is the YPbPr, please select the correct option according to different resolution)
For example, the resolution of your video source is the 480P/576P/720P/1080i, please select the
“GM220-YPbPr (HD)”; the others lower resolution, please select the “GM220-YPbPr”

The Videos/Games will be showed on the window after selecting the source input
You can use the control panel icon to capture/snapshoot the Videos/Games.
