Page 5

Step #7: From the amp’s input connector, take the 2 pin plug with the green/

black wires and install it into the mating plug on the brake side of the
bike. Also from amp’s input connector, take the 2 pin plug with the
yellow/black wires and install it into the mating plug on the clutch side
of the bike. NOTE: These are the plugs originally undone to allow the
speaker cabinet to come out. The plugs will only fit together one way
but, to be absolutely sure, if you look “behind” the factory wires
sheathing, the factory wires are pink and pink/black stripe.

Step #8: The balance of the main wire

harness will pass under the
inner fairing where the main
wire harness passes through
on the brake side of the bike.
Loosen the tank console and
run wires up and over the
gas tank, but under the
tank console. There is a
provision on the front of the
tank console for wires to pass.
Secure the amplifier’s harness
to the bike’s factory
harness using zip ties When
correctly installed, the power
and ground wires are the
right length to connect on to
the battery.

• Attach the red wire to the positive (+) battery terminal and the black

wire to the negative (-) battery terminal. The factory battery wires
are also re-installed at this point. Turn the ignition of the bike to the
“on” position and play the stereo at low volume to verify the
amplifier is working fine

IMPORTANT: With all wires secured, turn

the front wheel to each extreme side,

making sure that any wires cannot bind

or impede the steering of the motorcycle.

Failure to do so can cause an accident

resulting in serious injury or death!

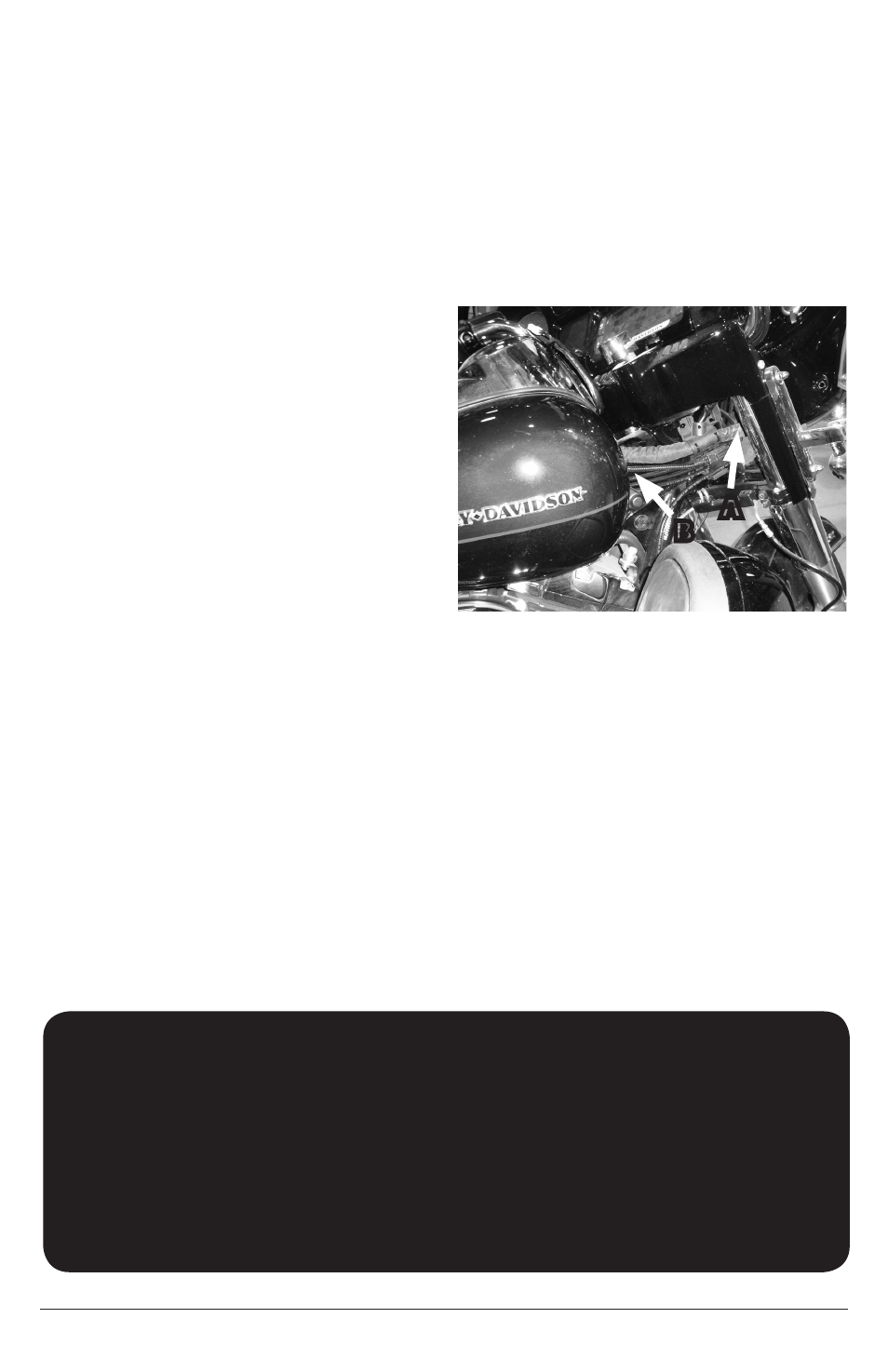

Figure 1.3 - Stock Harness and Amplifier’s

Harnesses Passing From Fairing To Just

In Front Of Tank (Arrow A). Cable Tying the

2 Amp Harnesses To The Main Bike Harness

Just In Front Of The Tank (Arrow B) Allows

The Amp Harnesses To Go Up Towards The

Tank’s Chrome Console Easier And Makes

For a Cleaner Install.
