installation instructions
Step #1: Remove the seat and both wires (+ and -) from the battery. Remove the
outer fairing/headlamp assembly and set aside. Refer to a service
manual if you need help with this. NOTE: Placing a towel on the front
fender can help prevent scratches or “dings” from dropped tools or fas-
teners, etc. Expletives will also be kept to a minimum!
Step #2: Over top of the radio, pull up to release each wire harness from the
black plate via the factory “Christmas Tree” fasteners. If your bike has
factory GPS, the small square antenna will need to be relocated just
behind the voltmeter as shown in Fig 1.1 below. Remove the four factory
T-20 “Torx” screws that go through the top of the black plate and into
the top of the radio.
Step #3:

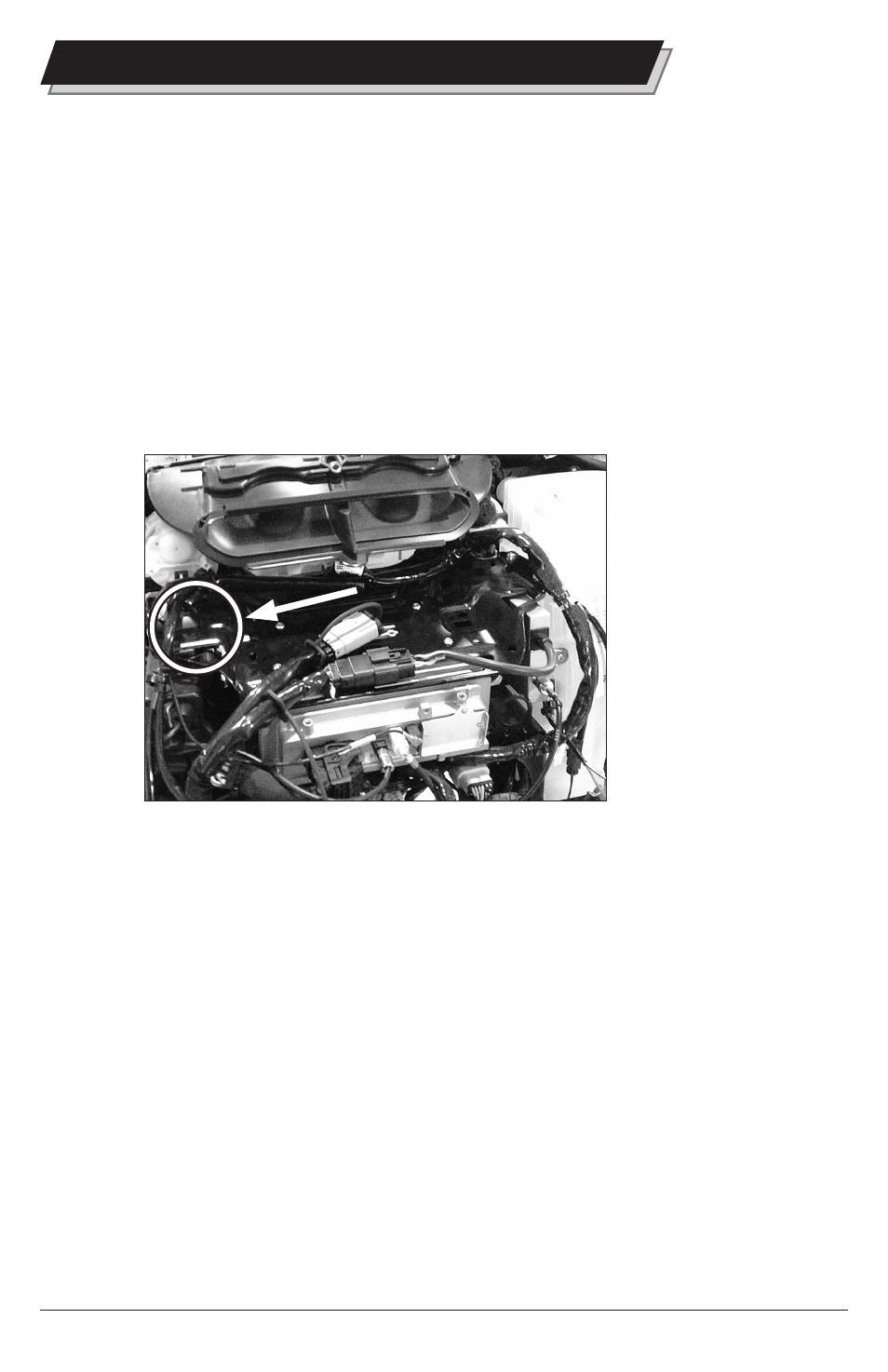

Figure 1.1 - The white circle shows the new location
for GPS Antenna if your bike came factory equipped
with this feature.
