EasyN H7 CMS - Manual (Page 31)

MV-H7E-E-2.3.3.6
29

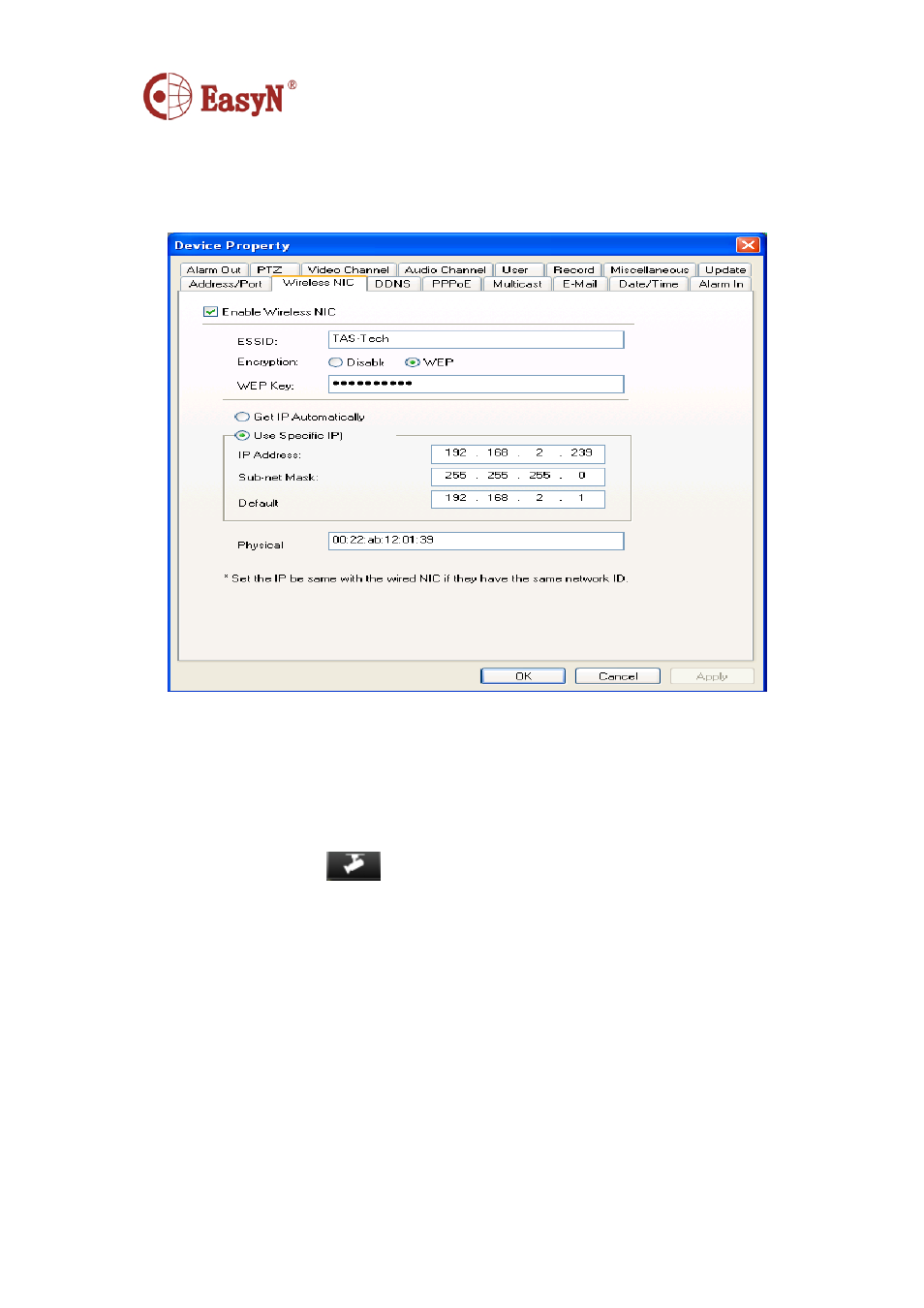

3.3.14Wireless NIC
Wireless network card property will auto display; in other condition click 【 IP】 → 【 Property】
→ 【Record】 to pop the dialog:
4 Other
4.1 LAN and WAN configuration
♦ LAN automatically search
Run DVS Client, Click , the video server in the local LAN will appear in the device
list. Only PC and video server in same network segment can connect.
If there are no device in the device list, make sure the following question:
① If DVS is already powered?
② If DVS and PC have been normal connected? If yes, the light will be long bright or
flashing.
③ If PC has firewall working? If yes, should do it again after closing the firewall.
♦ WAN manually search
If users want to login in another subnet, the device can not automatically be searched. The
video device should be manually added as the following steps:
