EasyN H3 Series Central Management System - Manual (Page 19)

MVH3E-E-2.0.1.7 - 18 -
【 Frequency 】 support 50Hz and 60Hz, default is 50Hz
【 Bit Rate 】 different bit rate for different model
【 Frame Spaced 】 N standard or 60Hz device has range 1-30fps, P standard or
50Hz device has range 1-25fps
【 I Frame Spaced 】 the interval of two I frame of image
【 Rate Control 】 support VBR and CBR
【 Rate Quality 】 support 6 levels, lower level with better quality

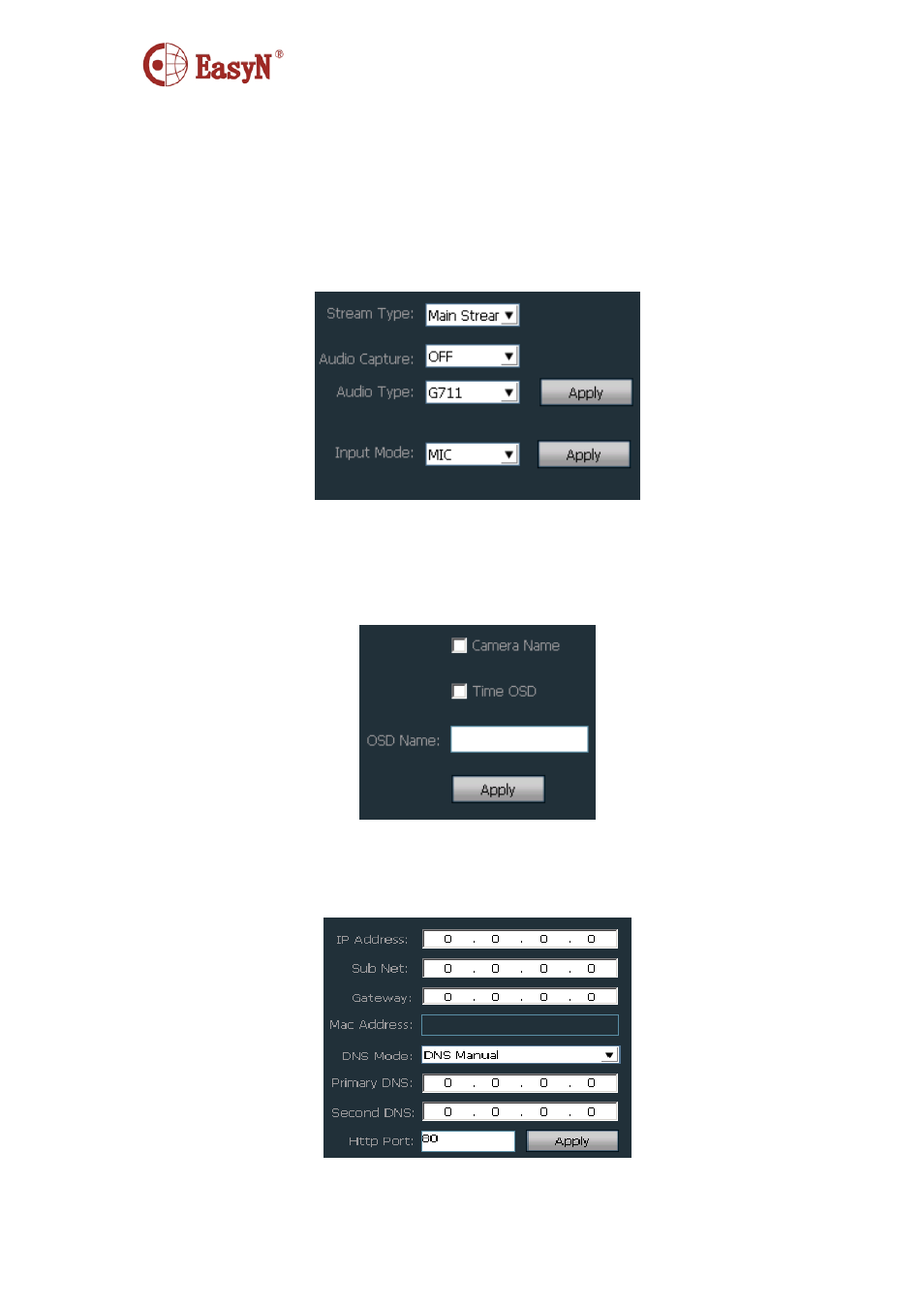

2.9.3Audio
【 Stream Type 】 support main stream and second stream
【 Audio Capture 】 ON or OFF
【 Audio Type 】 G727, G711 and AMR
【 Input Mode 】 MIC or Line In
2.9.4OSD
【 Camera Name 】 tick to enable adding name on image
【 Time OSD 】 tick to enable adding time on image
【 OSD Name 】 input OSD name then click Apply button, it can support 18 bit
2.9.5Network
To configure network parameters on current condition, the software only displays
network parameters of current device, despite it is manually configured or DHCP.
