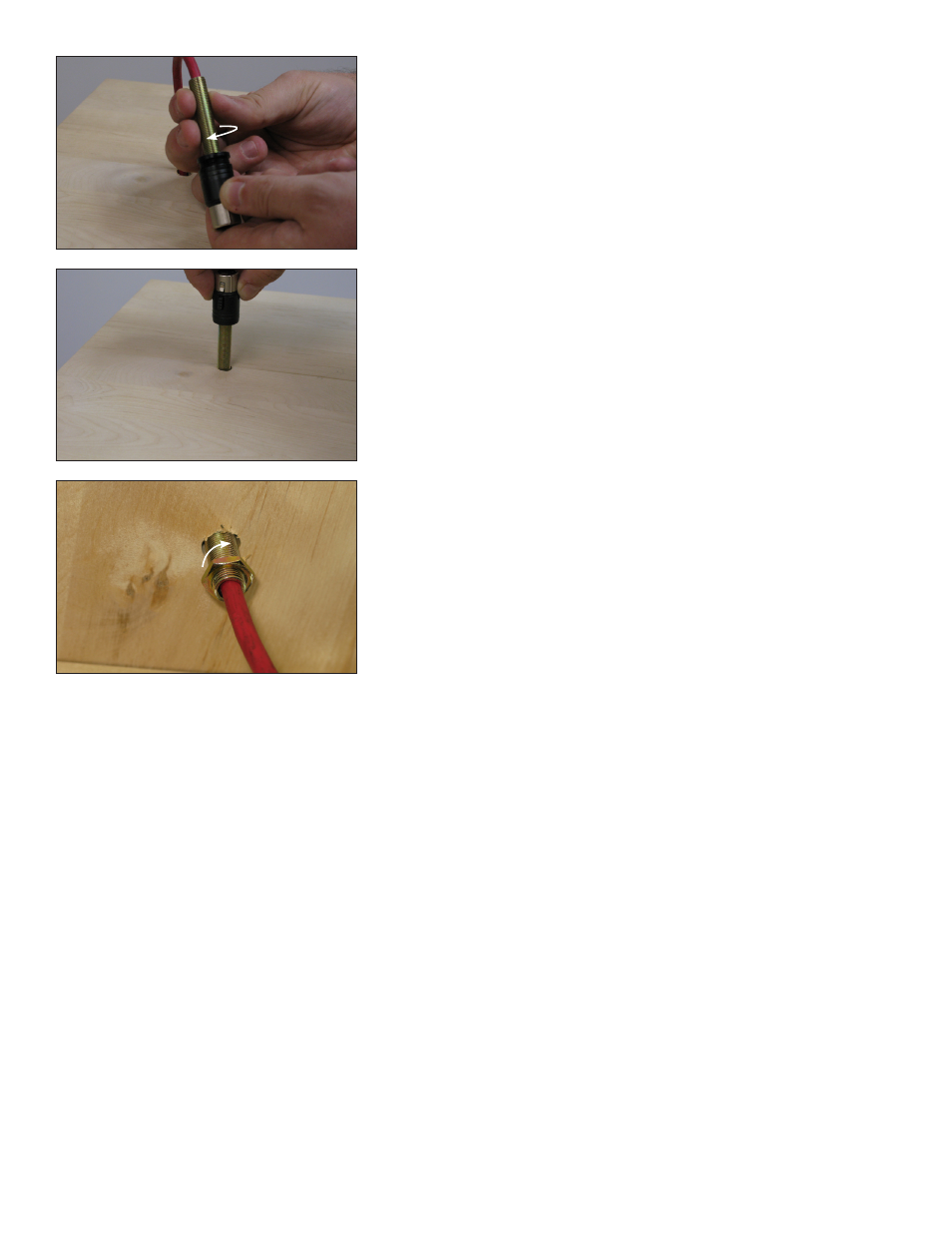

9. Slide the A4CDM through the hole

This is a good time to rotate the A4CDM to face the desired direction. Usually
you will want the release latch to face the presenter.

10. Tighten the nut

Hold the A4CDM in place and tighten the nut on the underside of the table
until the A4CDM is completely secure.

8. Assemble the A4CDM

Screw the threaded rod firmly into the lower half of the A4CDM. Hold the
upper half of the A4CDM, slide the lower half along the cable and screw it into
the upper half. The cable should not rotate as you turn the lower half of the
A4CDM, and the A4CDM should close securely. The most common reasons
for the A4CDM not closing are too much electrical tape or wires which are too
long.
