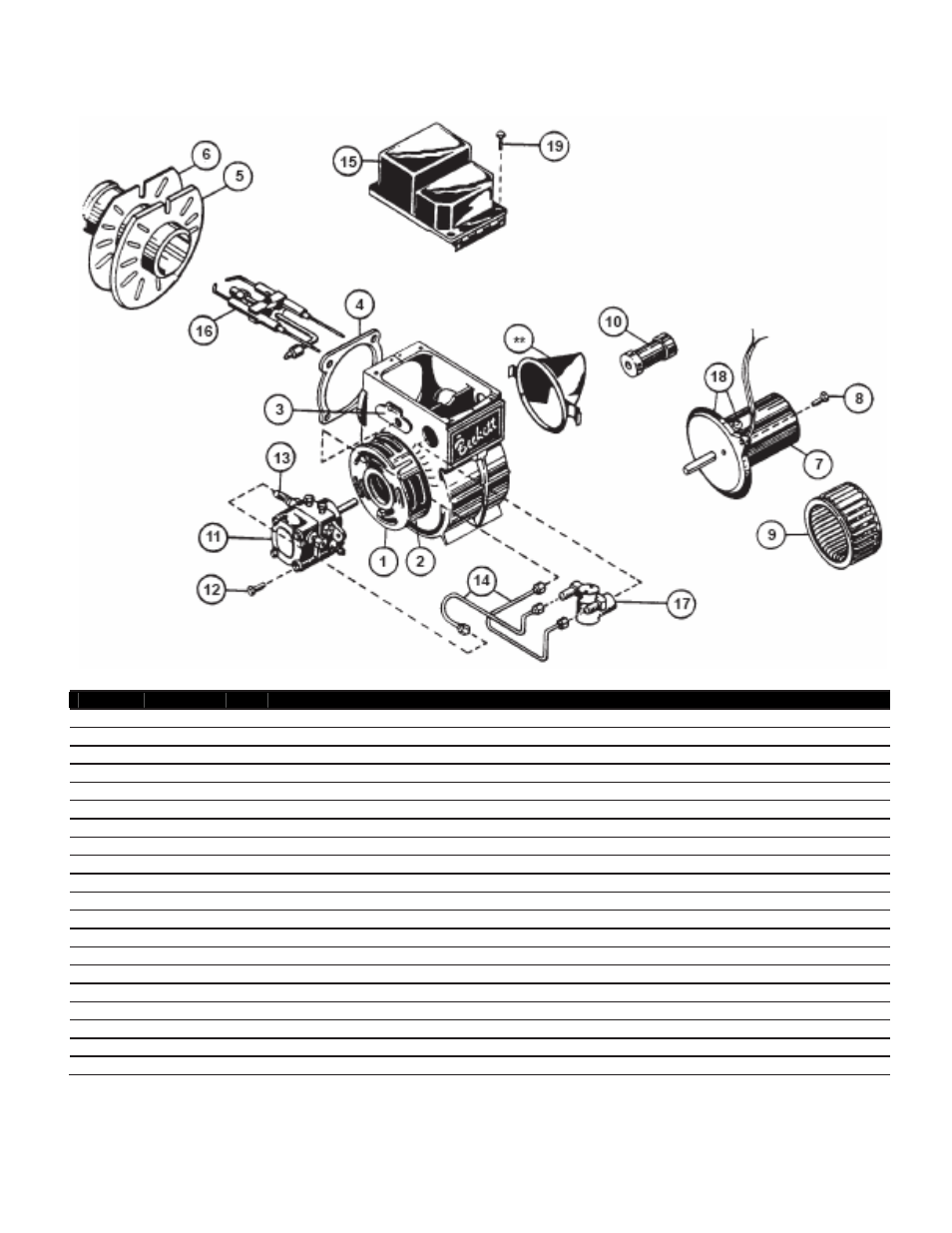

BURNER (Beckett 12V) COMPONENT LOCATOR & PARTS LIST

Ref.No. Part No.

Qty.

Description

1

29601A

1

Air Shutter

2

29602A

1

Air Band

3

29603A

1

Escutcheon Plate

4

29604A

1

Gasket, Square Plate

5

29605A

1

Air Tube Flange Assembly

6

193871

1

Flange Gasket

7

45027A

1

Motor

8

962139

1

Mounting Screws 1/4" - 20NC x 5/8

9

29606A

1

Blower Wheel (R.W.B. only)

10

29609A

1

Coupling

11

197216

1

Fuel Unit

12

962219

4

Mounting Screws 1/4" - 20 NC x 7/8"

13

193107

1

Pump Nozzle Port Fitting

14

29612A

1

Connector Tube Assembly

15

48415A**

1

Ignition Transformer Assembly with Interrupted Ignition

16

29641A

1

Nozzle Line Electrode Asm.

17

47000A

1

Oil Valve

18

51454A

1

Brushes, Replaceable Motor

19

962626

2

Mounting Screws 10 - 24NC x 5/16

20

NI

1

Transformer Gasket
