B4A Instruction Manual
Page 4

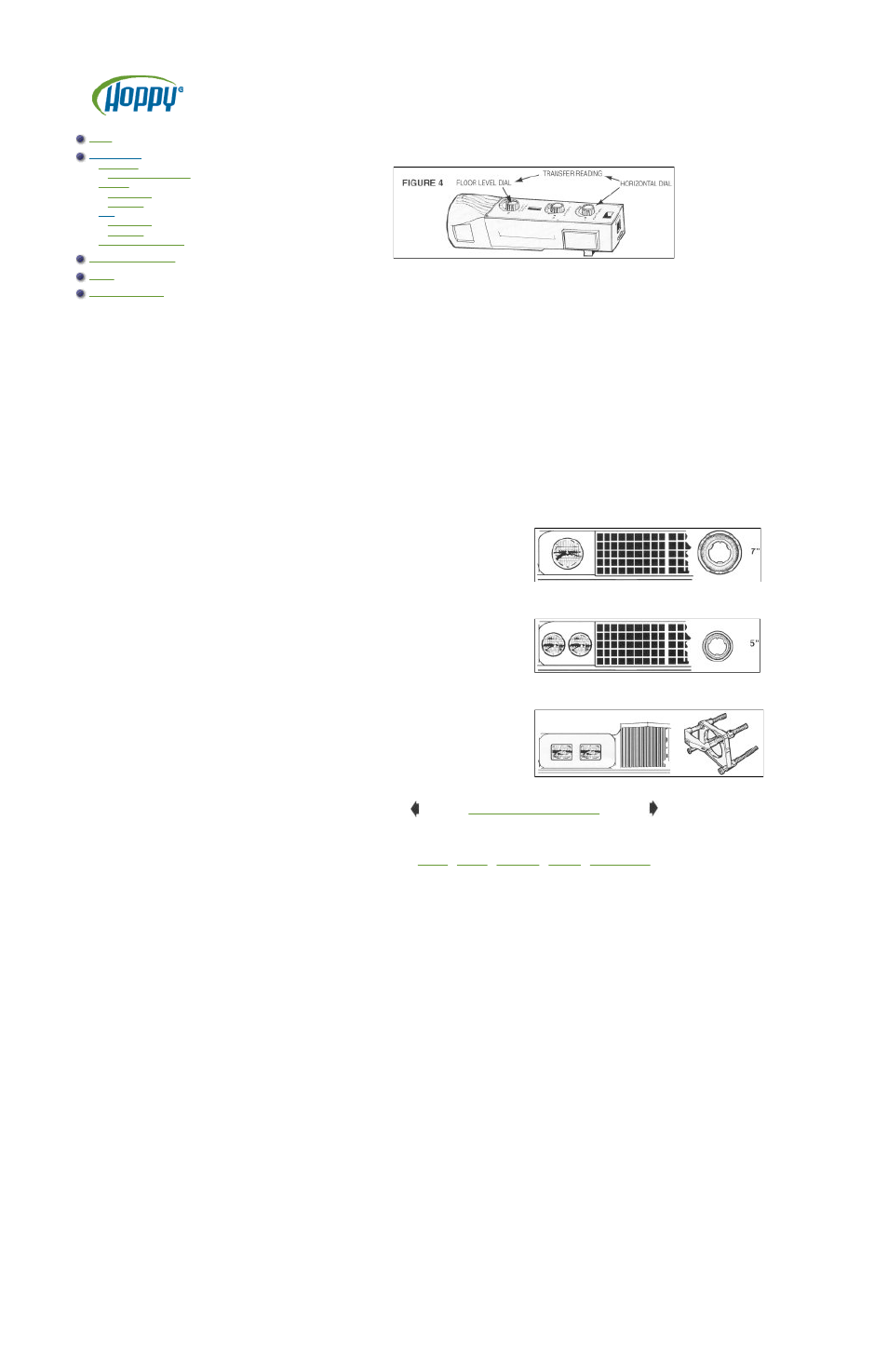

5. Transfer (Fig. 4) the plus or minus reading indicated on the horizontal dial to the FLOOR LEVEL DIAL on each
aimer (press floor level dial inward to set reading). Turn horizontal dial back to zero.
6. Remove fixtures.
HEADLAMP AIMING
Your headlamp aimer is equipped with adaptors for lamps that have aim pads and are designed to be aimed
mechanically. Regardless of configurations, headlamps are always aimed in pairs...one lamp on each side of the
vehicle.
1. Attach the correct adaptor to each aimer for the kind of headlamp on the vehicle (Fig. 5). Adaptors will easily
snap into place when properly positioned.
FIGURE 5
Circular two lamp systems - use 7 inch circular adaptor.
Circular four lamp systems - use 5 inch circular adaptor.
Rectangular lamp systems - use adjustable blue
adaptors for some aiming pad locations.
