3
Figure 5 Figure 4
Figure 2 Figure 3
DURA ChIMnEy
II PIPE
ChIMnEy PoT
MoUnTIng
BRACKETS
ChASE ToP
FLAShIng
KIng ADAPTER

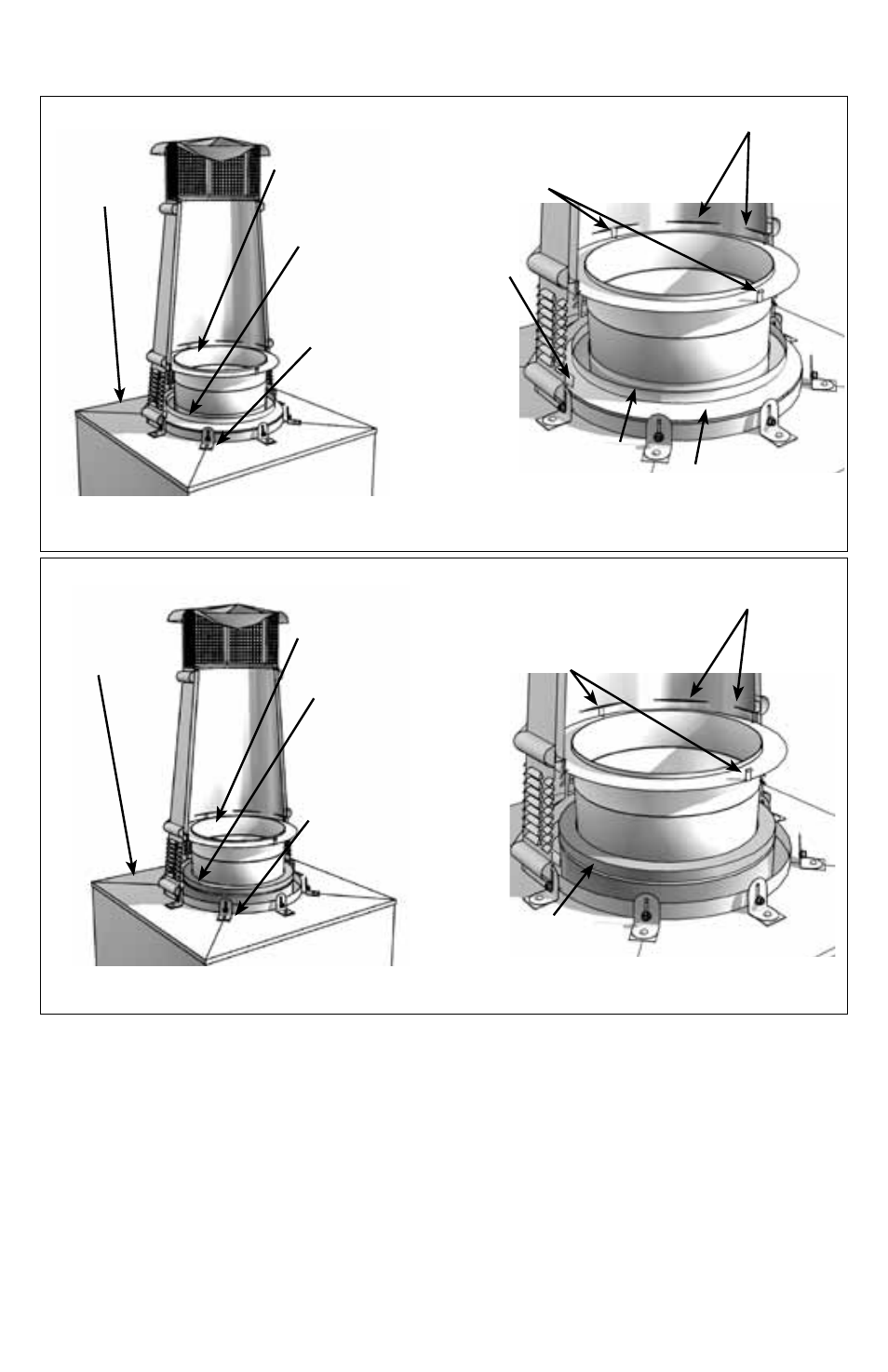

European Copper Pot With DuraChimney II Pipe (King Model shown)
European Copper pot with DuraTech pipe (King Model shown)
hoRIzonTAL
SLoTS on
InnER wALL
oF PoT
TRIM
SToRM
CoLLAR
IF
nEEDED
To AVoID
BASE oF
PoT
FoUR ADAPTER
CLIPS hooK InTo
hoRIzonTAL SLoTS
SToRM CoLLAR
InSTALLED on
DURAChIMnEy II
onLy
DURAChIMnEy II PIPE
Before mounting the European Copper Chimney
Pot (King or Bishop) to the top of the chase,
connect the Adapter to the Pot by hooking the clip
legs of the Adapter into the horizontal slots of the
Pot’s inner wall (Figures 3 and 5). Ensure all four
legs of the Adapter are hooked into the slots.
Lifting the European Copper Pot and attached
Adapter, guide the bottom of the Adapter into the
KIng ADAPTER
DURA TECh
PIPE
ChIMnEy PoT
MoUnTIng
BRACKETS
ChASE ToP
FLAShIng
hoRIzonTAL
SLoTS on
InnER wALL
oF PoT
FoUR ADAPTER
CLIPS hooK InTo
hoRIzonTAL SLoTS
DURA TECh PIPE
no SToRM
CoLLAR
InSTALLED
inner wall of the chimney. Slide the Adapter into
the inner wall of the chimney pipe until the base
of the European Copper Pot reaches the Chase
Top Flashing.
Secure the European Copper Chimney Pot as
directed by the installation instructions provided
by European Copper.
