DuraVent DuraPlus HTC - Manual (Page 20)

20

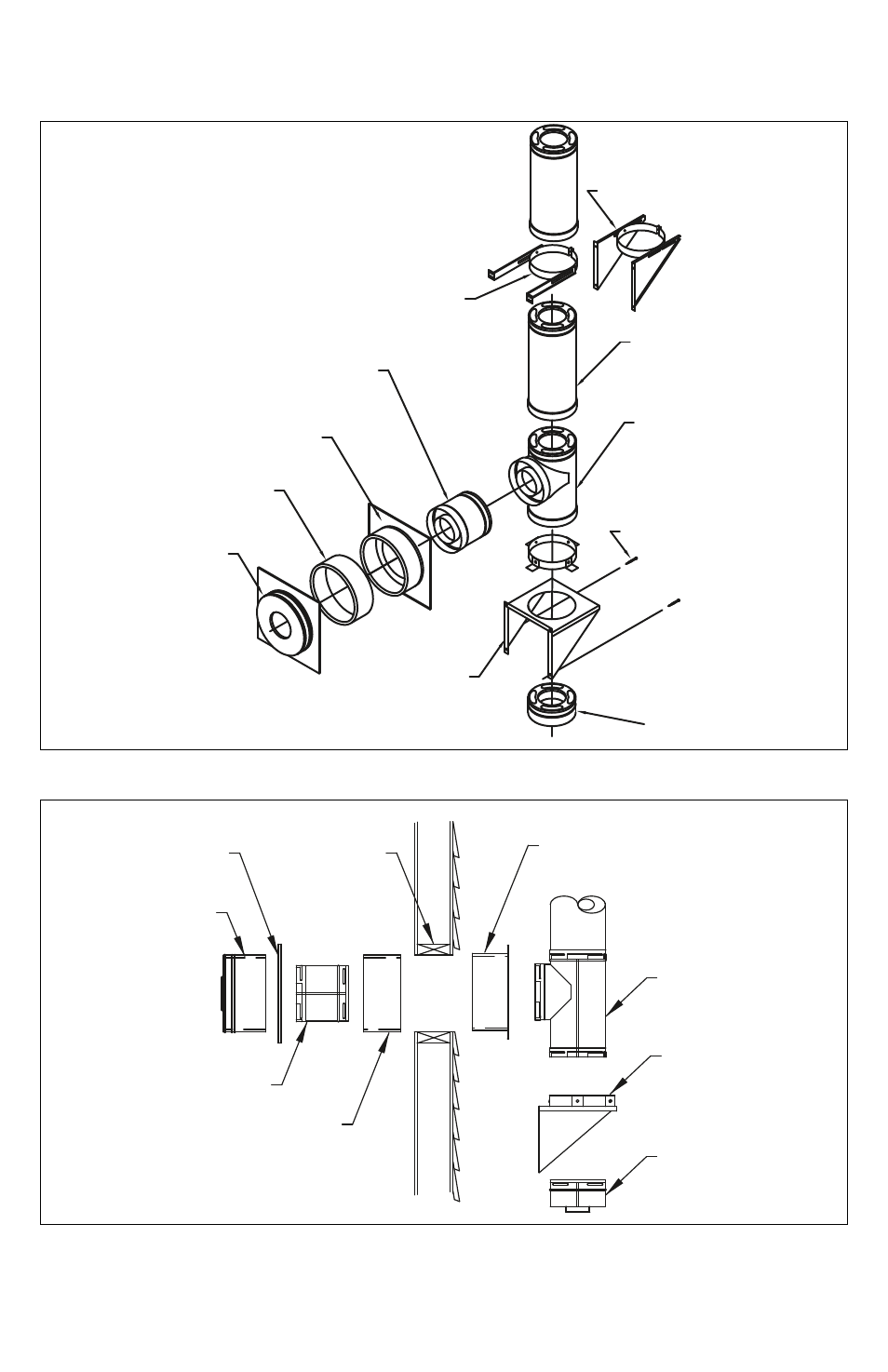

Figure 23
CHIMNEY SECTION
AS BRANCH FOR TEE
BACK (OUTSIDE)
PORTION OF WALL
THIMBLE
WALL THIMBLE ExTENSIONS
(IF NEEDED)
FRONT (INSIDE)
PORTION OF WALL
THIMBLE
CHIMNEY
SECTION
CHIMNEY TEE
USE (4) #8 2 ½" SCREWS
PER SIDE TO ATTACH TEE
SUPPORT LEGS TO WALL
TEE CAP
TEE SUPPORT BRACKET
Figure 24
ATTACH BACK (OUTSIDE) PORTION
OF WALL THIMBLE TO WALL USING
(4) #8 1 ½" WOOD SCREWS
CHIMNEY TEE
TEE SUPPORT BRACKET
TEE CAP
WALL THIMBLE ExTENSION
(IF NEEDED). SECURE TO BACK
PORTION OF WALL THIMBLE
WITH SHEET METAL SCREWS
TWIST LOCK CHIMNEY SECTION
INTO TEE OPENING
TWIST LOCK FRONT
(INSIDE) PORTION OF
WALL THIMBLE ONTO THE
BRANCH. WALL THIMBLE
MUST ExTEND 2" (20MM)
MINIMUM INTO ROOM
SECURE TRIM PLATE
(INCLUDED WITH WALL
THIMBLE) TO INSIDE WALL
USING SCREWS ENCLOSED
14 ½" FRAMED
OPENING
ADjUSTABLE
WALL STRAP
OPTIONAL WALL
RE-SUPPORT
