Kramer Electronics PT-101H4 User Manual
Page 9
6
PT-101H4 - Defining the PT-101H4 HDMI Repeater and Format Converter
4
Defining the PT-101H4 HDMI Repeater and
Format Converter
defines the PT-101H4.

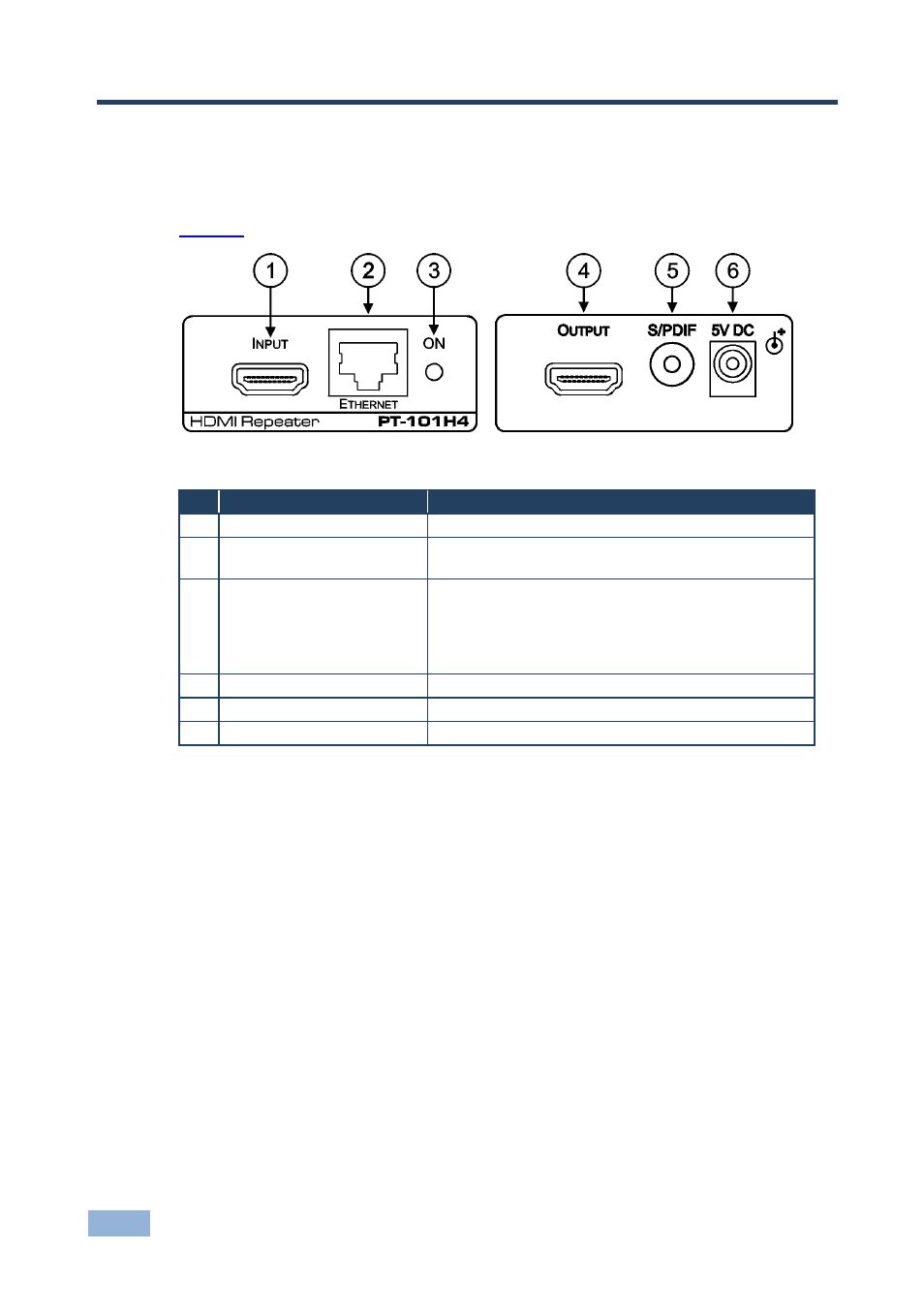

Figure 1: PT-101H4 HDMI Repeater and Format Converter
#
Feature
Function
1
INPUT
HDMI Connector
Connect to the HDMI source
2
ETHERNET
CAT 5 RJ-45
Connector
Connect to the Ethernet LAN
3
ON
LED
Lights red when the unit receives power and no
devices are connected; lights orange when receiving
power and a device is connected to either the input
or output; lights green when receiving power and
both the input and output are connected to devices
4
OUTPUT
HDMI Connector
Connect to the HDMI acceptor
5
S/PDIF
RCA Connector
Connect to the digital audio acceptor
6
5V DC
Power Connector
Connect to the power adapter, center pin positive
