Your FC-47 HDMI to DVI/ Audio Converter
5
4 Your FC-47 HDMI to DVI/ Audio Converter
The high quality FC-47 HDMI to DVI/ Audio Converter accepts an HDMI
input and converts the HDMI signal to a digital video DVI (DVI-D) output and
a digital audio S/PDIF output. In particular, the FC-47:
Lets you connect your HDMI source to a DVI HDCP display and enjoy
high quality digital audio at the same time (note that when the HDMI input is
HDCP encrypted the DVI output is encrypted as well)
Features input format auto detection: digital RGB or YPbPr
Supports an operation frequency of up to 1.65Gbps
Is 12VDC fed
Is HDCP compliant
Is Plug and Play
Figure 1 and Table 5 define the FC-47 HDMI to DVI/ Audio Converter:

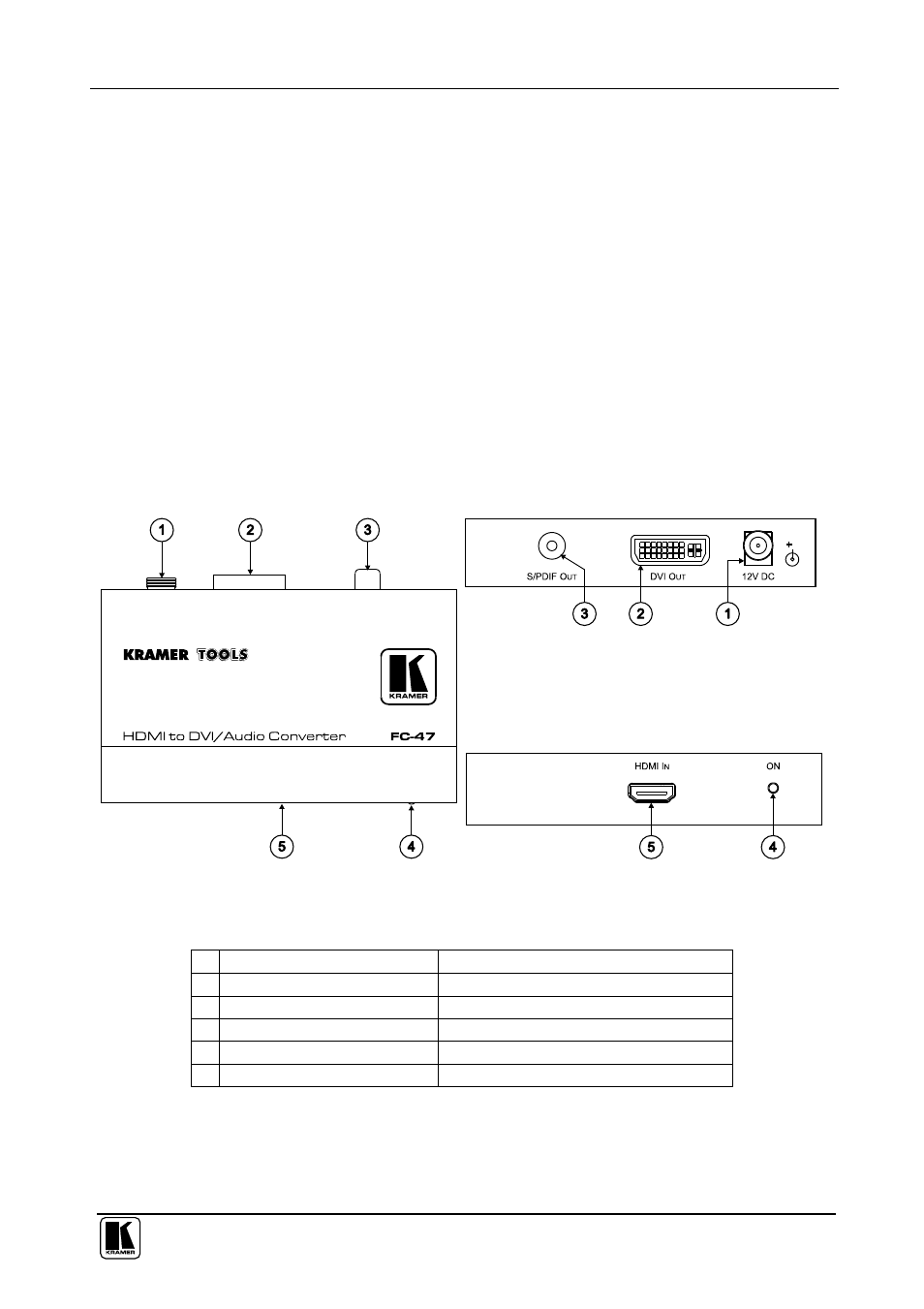

Figure 1: FC-47 HDMI to DVI/ Audio Converter
Table 5: FC-47 HDMI to DVI/ Audio Converter Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 DVI OUT Connector Connects to the DVI acceptor
3 S/PDIF OUT RCA Connector Connects to the digital audio acceptor
4 ON LED
Illuminates when receiving power
5 HDMI IN Connector Connects to the HDMI source
