Your FC-48 DVI/ Audio to HDMI Converter
8
5.1 Connecting the FC-48 DVI/ Audio to HDMI Converter
To connect the
FC-48, as the example in Figure 4 shows, do the following
1
:
1. Connect the HDMI OUT connector to the HDMI acceptor (for example,
an LCD TV with built-in speakers).
2. Connect the DVI source (for example, a multimedia player) to the:
DVI IN connector
S/PDIF (digital audio) RCA IN connector
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.

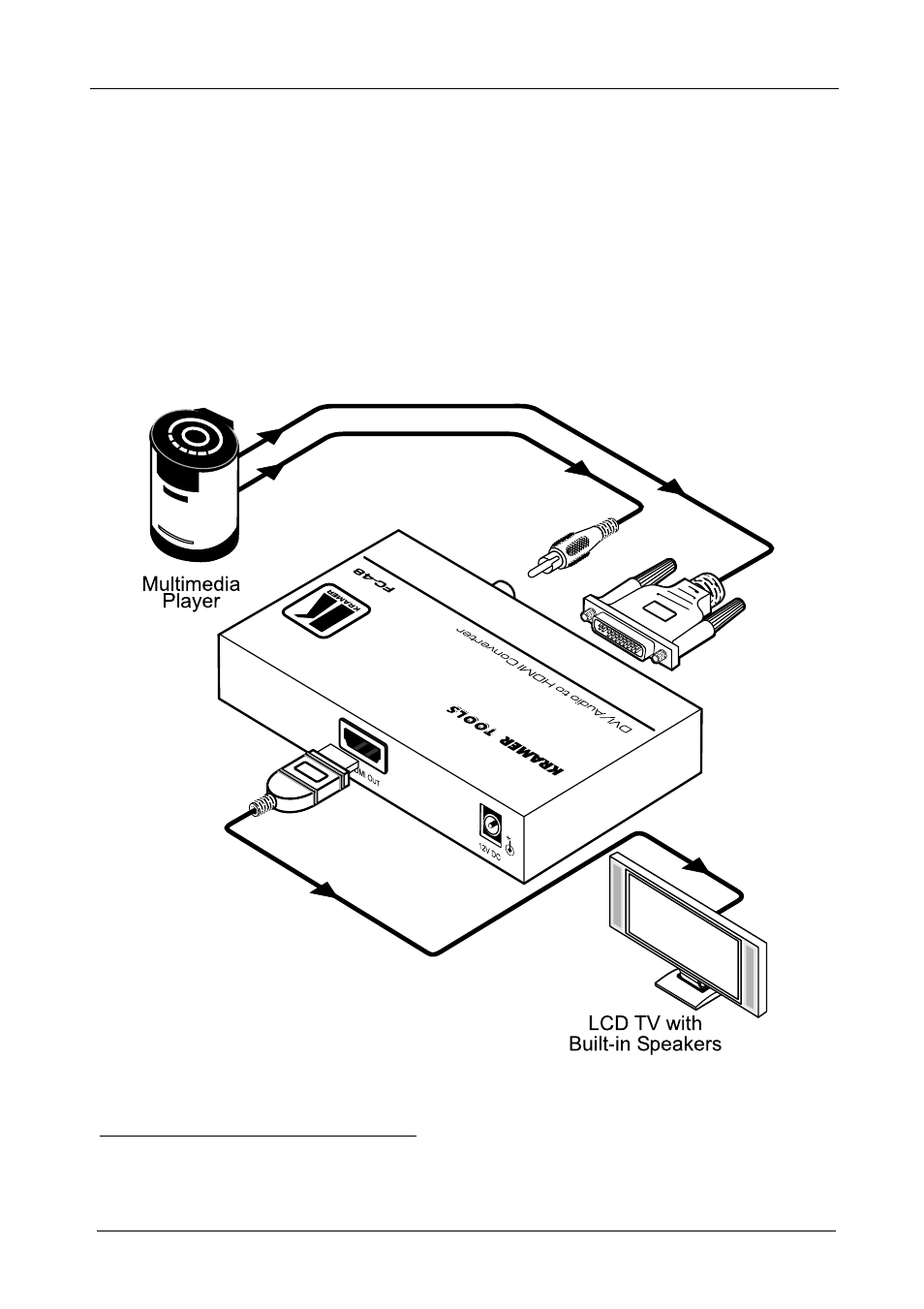

Figure 4: Connecting the FC-48 DVI/ Audio to HDMI Converter
1 Switch OFF the power on each device before connecting it to your FC-48. After connecting your FC-48, switch on its
power and then switch on the power on each device
