Your FC-4 RGB to Component Video Converter
3

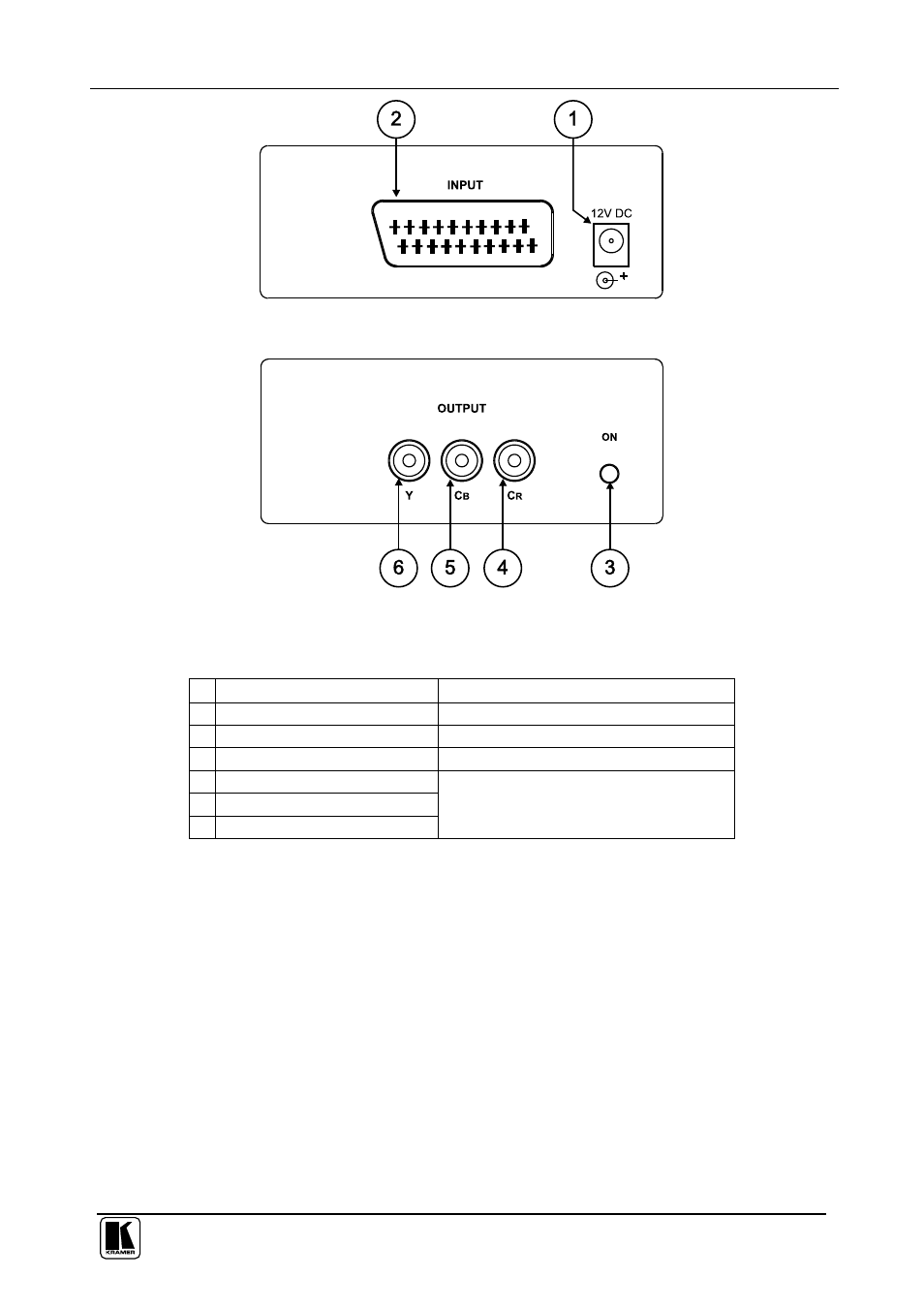

Figure 2: FC-4 (Top Side Panel)
Figure 3: FC-4 (Lower Side Panel)
Table 1: FC-4 RGB to Component Video Converter Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 INPUT Scart Connector Connects to the external video source
3 ON LED Illuminates when receiving power
4 C R OUTPUT RCA Connector
5 C B OUTPUT RCA Connector Connects to the YUV acceptor
6 Y OUTPUT RCA Connector
