Your FC-332 SD/HD-SDI to HDMI Converter/DA
5

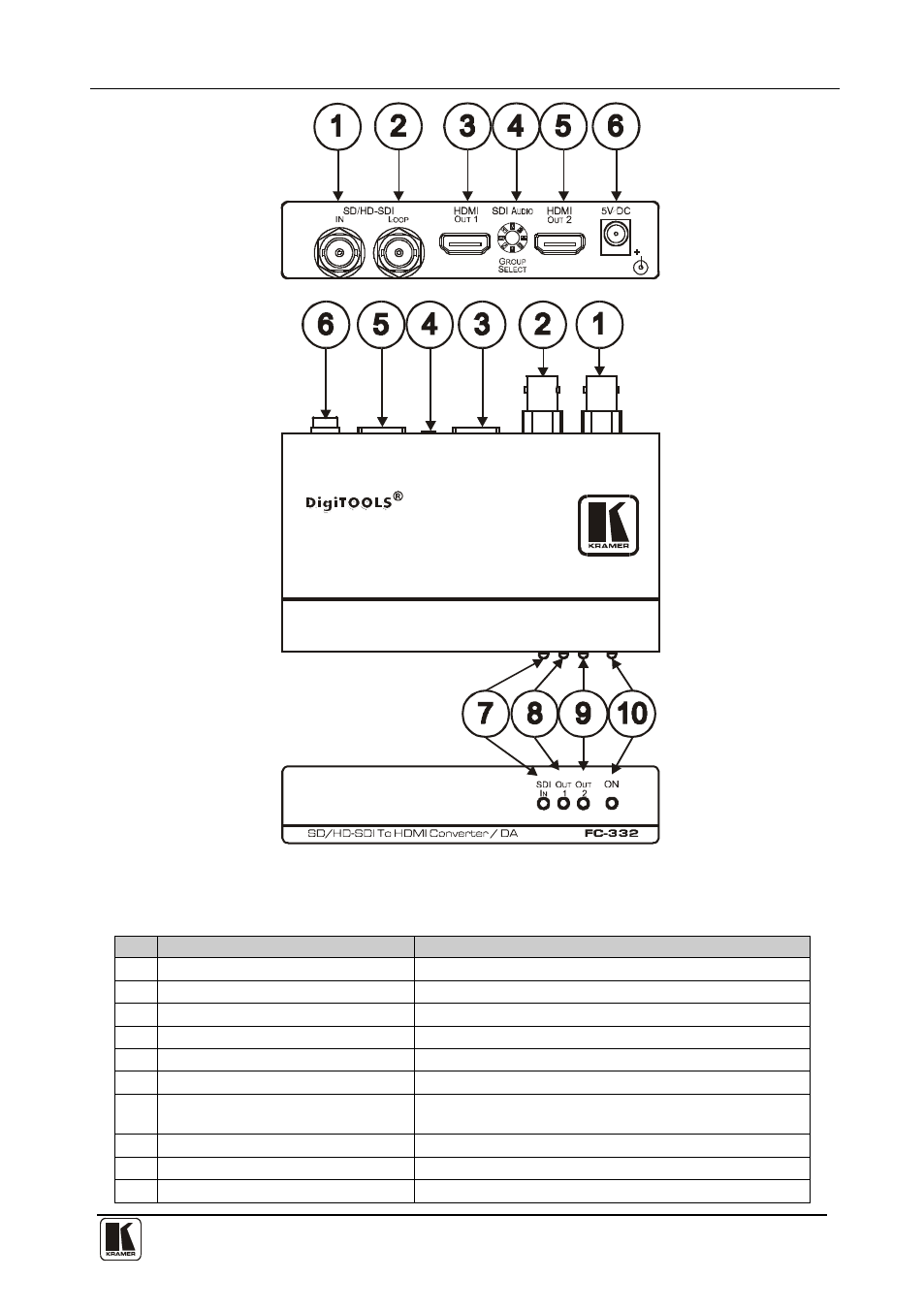

Figure 1: FC-332 SD/HD-SDI to HDMI Converter/DA
Table 1: FC-332 SD/HD-SDI to HDMI Converter/DA Features
#
Feature
Function
1
SD/HD-SDI IN BNC Connector
Connects to an SD-SDI or HD-SDI source
2
SD/HD-SDI LOOP BNC Connector Connects to an SD-SDI or HD-SDI acceptor
3
HDMI OUT 1 Connector
Connects to the HDMI acceptor 1
4
SDI AUDIO GROUP SELECT
Turn to select the input stereo channel (0 to 7)
5
HDMI OUT 2 Connector
Connects to the HDMI acceptor 2
6
5V DC
+5V DC connector for powering the unit
7
SDI IN LED
Illuminates green for an SD-SDI input signal and blue
for an HD-SDI input signal
8
OUT 1 LED
Illuminates green to indicate that display 1 is connected
9
OUT 2 LED
Illuminates green to indicate that display 2 is connected
10
ON LED
Illuminates green when receiving power
