482xl - Overview
5

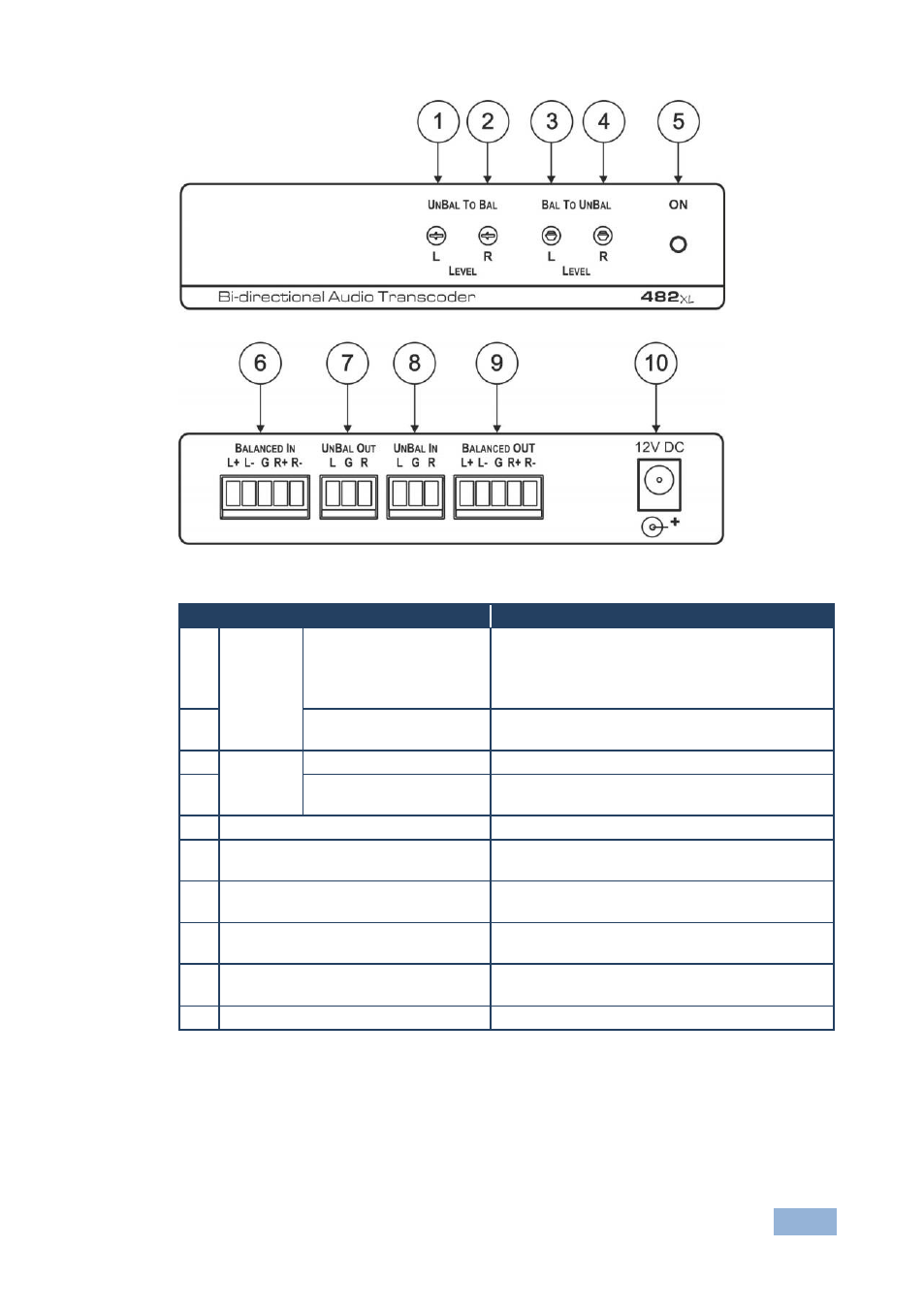

Figure 1: 482xl Bidirectional Audio Transcoder
#
Feature
Function
1
UNBAL
TO BAL
L LEVEL Trimmer
Adjust the left unbalanced audio output signal
level
Insert a screwdriver into the small hole and
carefully rotate it, trimming the appropriate level
2
R LEVEL Trimmer
Adjust the right unbalanced audio output signal
level
3
BAL TO
UNBAL
L LEVEL Trimmer
Adjust the left balanced audio output signal level
4
R LEVEL Trimmer
Adjust the right balanced audio output signal
level
5
ON LED
Illuminates when receiving power
6
BALANCED IN 5-pin Terminal Block
Connector
Connect to the balanced audio source
7
UNBAL OUT 3-pin Terminal Block
Connector
Connect to the unbalanced audio acceptor
8
UNBAL IN 3-pin Terminal Block
Connector
Connect to the unbalanced audio source
9
BALANCED OUT 5-pin Terminal
Block Connector
Connect to the balanced audio acceptor
10
12V DC
+12V DC connector for powering the unit
