482xl - Connecting the 482xl 7

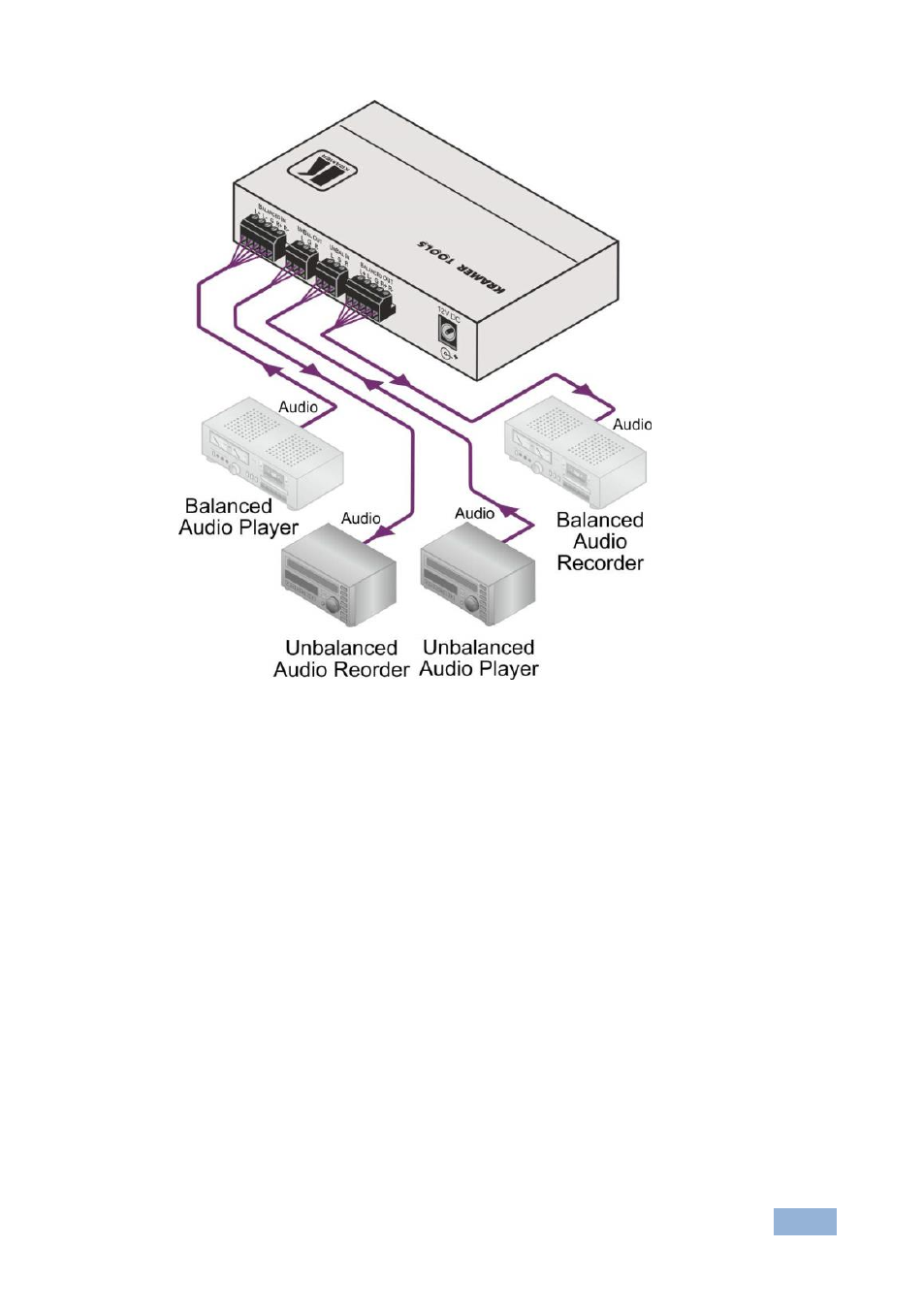

Figure 2: Connecting the 482xl Bidirectional Audio Transcoder
4.1 Adjusting the Audio Output Level
The 482xl Bi-directional Audio Transcoder comes factory pre-set for 1:1
transparency.
Readjusting the 482xl Bi-directional Audio Transcoder upsets this transparency. However, if
necessary, you can fine-
tune both channels’ audio output levels.
To adjust the appropriate audio output levels:
1. Insert a screwdriver into one of the four small holes on the lower side of the
482xl Bi-directional Audio Transcoder, enabling access to the appropriate
trimmer.
2. Carefully rotate the screwdriver, adjusting the appropriate audio output level,
as required.
