4 401C, 401DN - Overview
3 Overview
The Kramer TOOLS 401C and 401DN are high performance format converters for
s-Video (Y/C) and composite video signals.
The 401C converts an s-Video input to two composite outputs as well as
simultaneously to two s-Video (Y/C) outputs, with no signal degradation.
The 401DN converts a composite video input to one s-Video (Y/C) output with full
compensation for Y/C delay.
3.1 Defining the 401C, 401DN
The 401C Y/C to Composite Converter/DA is defined in Figure 1 .

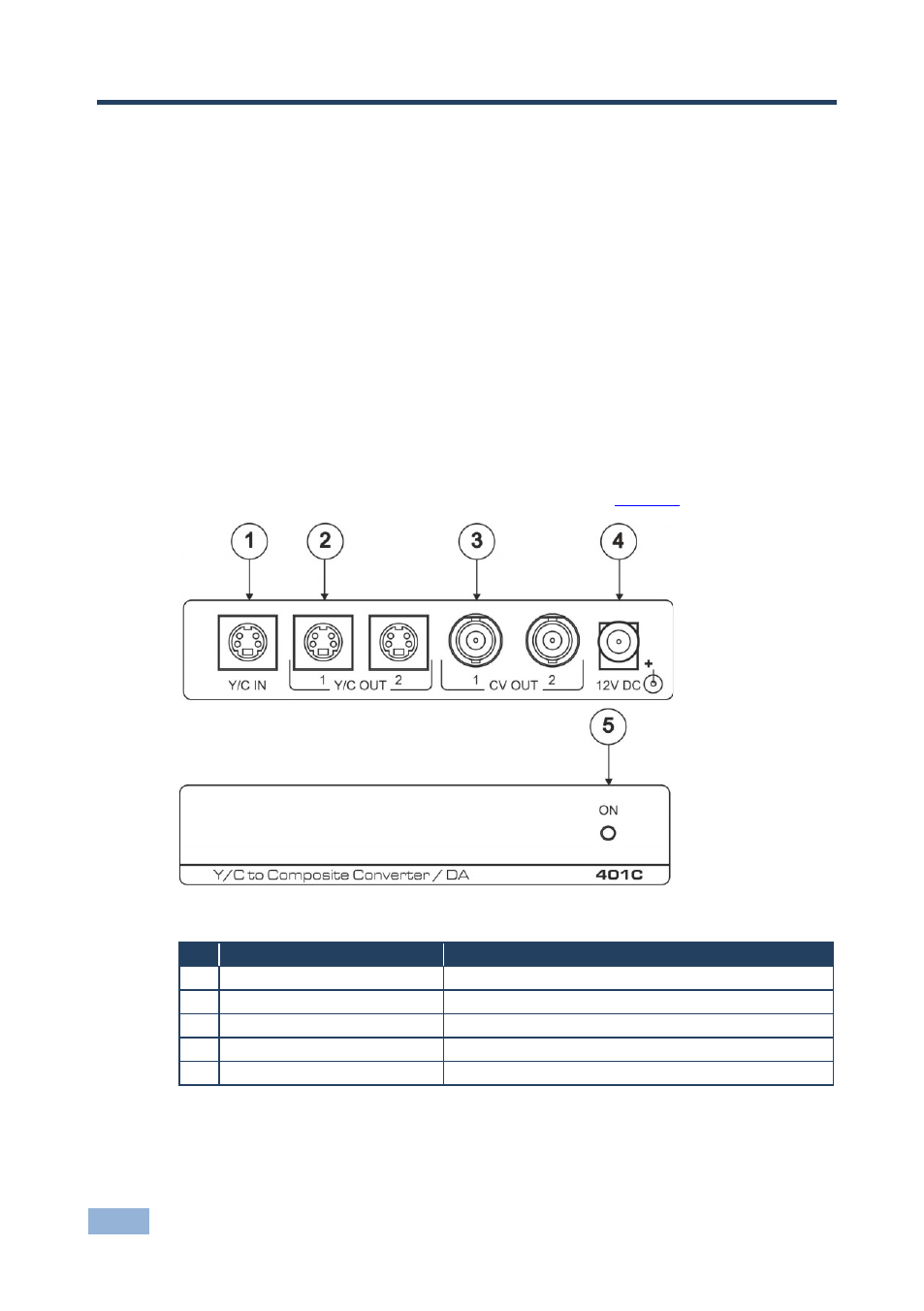

Figure 1: 401C Y/C to Composite Converter/DA
# Feature Function
1 Y/C IN 4-pin Connector Connect to the s-Video source
2 Y/C OUT 4-pin Connectors Connect to the s-Video acceptors (1 and 2)
3 CV OUT BNC Connectors Connect to the composite video acceptors (1 and 2)
4 12V DC +12V DC connector for powering the unit
5 ON LED Lights when the power is connected
