401C, 401DN - Connecting the 401C, 401DN 7

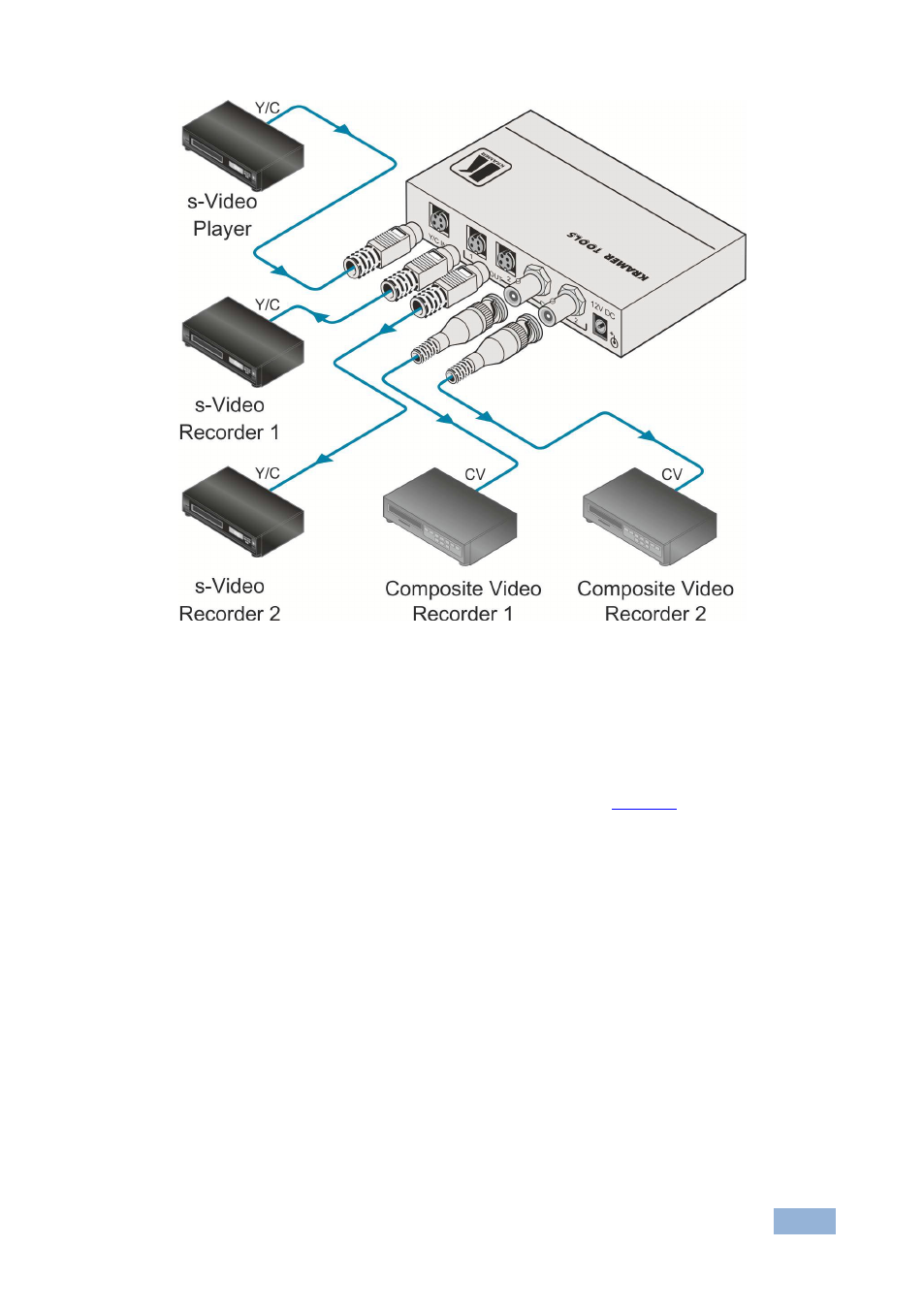

Figure 3: Connecting the 401C
4.2 Connecting the 401DN
To connect your 401DN as illustrated in the example in Figure 4 , do the following:
1. Connect a composite video source (for example, a composite video player)
to the COMPOSITE IN BNC connector.
2. Connect the Y/C OUT 4-pin connector to an s-Video acceptor (for example,
an s-Video recorder).
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.
