KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the SL-1 Master Room Controller
6

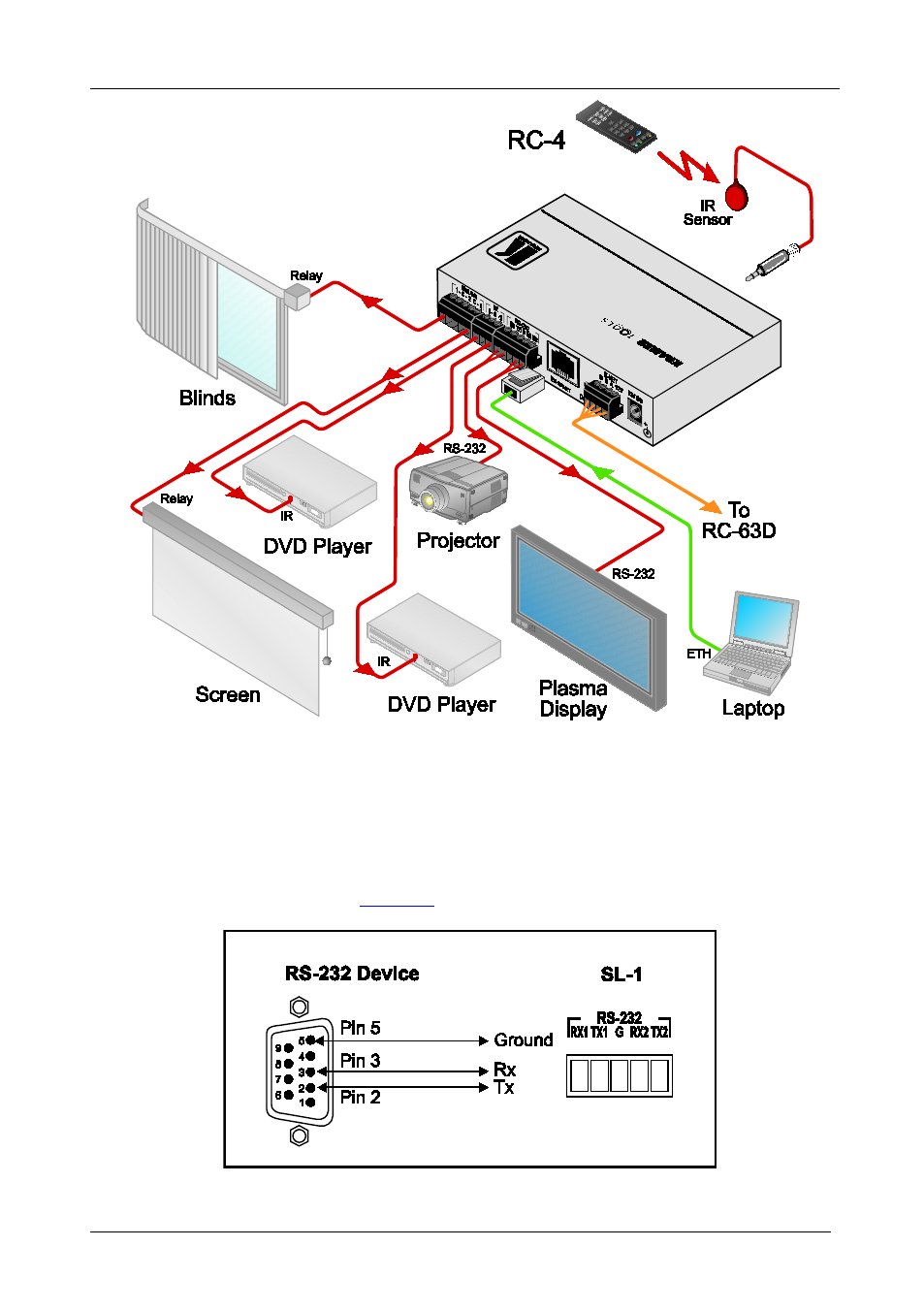

Figure 2: Connecting the SL-1 Master Room Controller
5.1
Connecting the RS-232 Interface
To connect an AV device to the SL-1, connect the RS-232 9-pin D-sub port
on your device to the RS-232 terminal block on the rear panel of the SL-1
controller as shown in
Figure 3: RS-232 Connection
