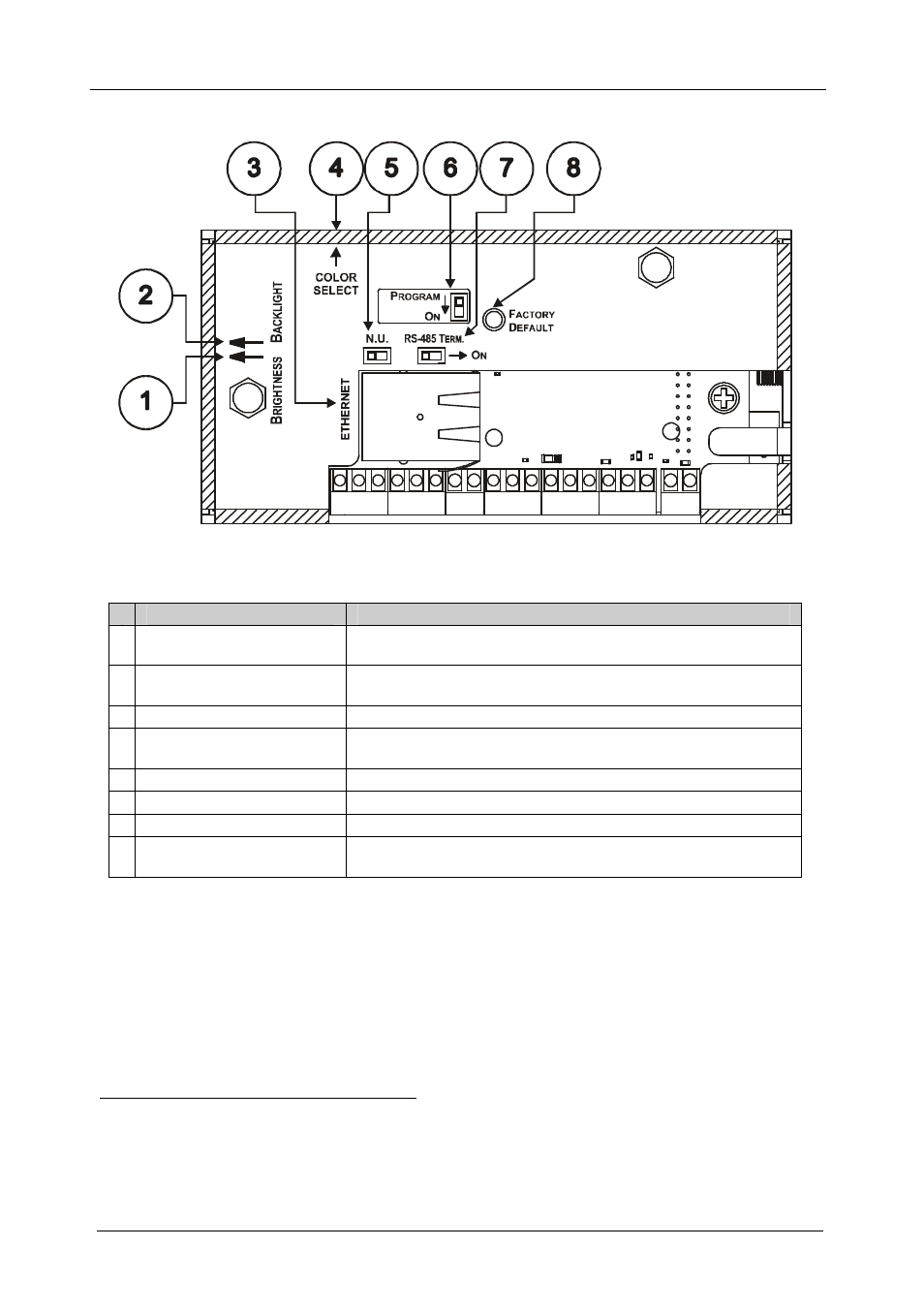

Figure 2 and Table 2 define the RC-8RK / RC-8RKL (identical) rear panel:
Figure 2: RC-8RK and the RC-8RKL Rear Panel
Table 2: RC-8RK and the RC-8RKL Rear Panel Features
# Feature Function
1 BRIGHTNESS Indication
Arrow
Brightness indication to increase the brightness of the buttons 1
2 BACKLIGHT Indication
Arrow
Backlight indication to set the backlight illumination for when the
unit is not active
3 ETHERNET Port Connects to a PC or other controller via computer networking
4 COLOR SELECT Indication
Arrow
Color select indication for selecting the button color 2
5 N.U Switch Not used
6 PROGRAM Switch Switch to OFF for normal operation; to ON for firmware upgrade
7 RS-485 TERM. Switch Switch to ON for RS-485 line termination
8 FACTORY DEFAULT Button Press to return to the factory default settings, including all the
configured buttons and the network settings 3
1 See Table 5
2 See Table 4
3 Including the factory default IP number: 192.168.1.39 (an IP number is a device's numerical address as expressed in the
format specified in the Internet Protocol)
