Technical Specifications
KRAMER ELECTRONICS, LTD.
4

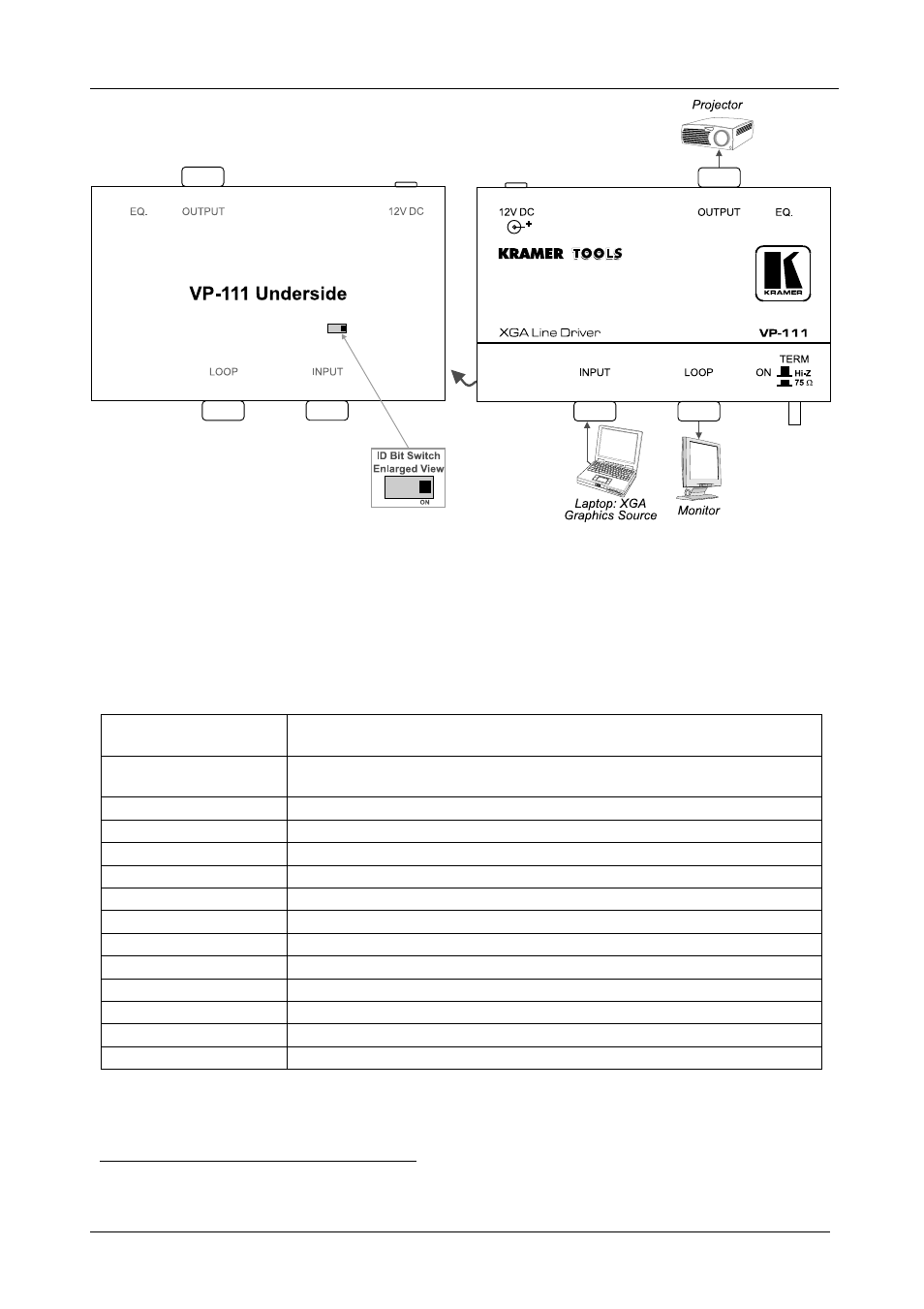

Figure 2: Connecting the VP-111 XGA Line Driver
6 Technical Specifications
Table 3 includes the technical specifications:
Table 3: Technical Specifications
1
of the VP-111 XGA Line Driver
INPUT:
Looping analog red, green, blue signals - 0.7Vpp / 75 , H & V sync, TTL
level, on HD15F connectors
OUTPUT:
Analog red, green, blue signals - 0.7Vpp / 75 , H & V sync, TTL level, on an
HD15F connector
MAX. OUTPUT LEVEL:
1.9Vpp
BANDWIDTH (-3dB):
480MHz
DIFF. GAIN:
0.8%
DIFF. PHASE:
0.2 Deg.
K-FACTOR:
<0.05%
S/N RATIO:
73.5dB
CONTROLS:
EQ.: 0dB to +11.3dB @ 50MHz
COUPLING:
DC
POWER SOURCE:
12 VDC, 101mA
DIMENSIONS:
12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98"), W, D, H
WEIGHT:
0.3 kg. (0.66 lbs.) approx.
ACCESSORIES:
Power supply, mounting bracket
1 Specifications are subject to change without notice
