Your VP-111 XGA Line Driver
KRAMER ELECTRONICS, LTD.
2
loops it out to a local monitor (or some other acceptor), as well as outputting
an amplified and equalized signal to a remote acceptor
Can drive very long high resolution lines 1 due to its large bandwidth that
exceeds 480MHz. This ensures that it remains transparent even at highest
resolution QXGA modes
In particular, the
VP-111 XGA Line Driver includes:
A TERM switch for input signal termination
Cable equalization control
ID Bit control (via a switch on its underside)
Achieving the best performance means:
Connecting only good quality connection cables, thus avoiding
interference, deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables)
Avoiding interference from neighboring electrical appliances that may
adversely influence signal quality and positioning your VP-111 unit in a
location free from moisture and away from excessive sunlight and dust
4 Your VP-111 XGA Line Driver
Figure 1, Table 1 and Table 2, define the VP-111 XGA Line Driver:

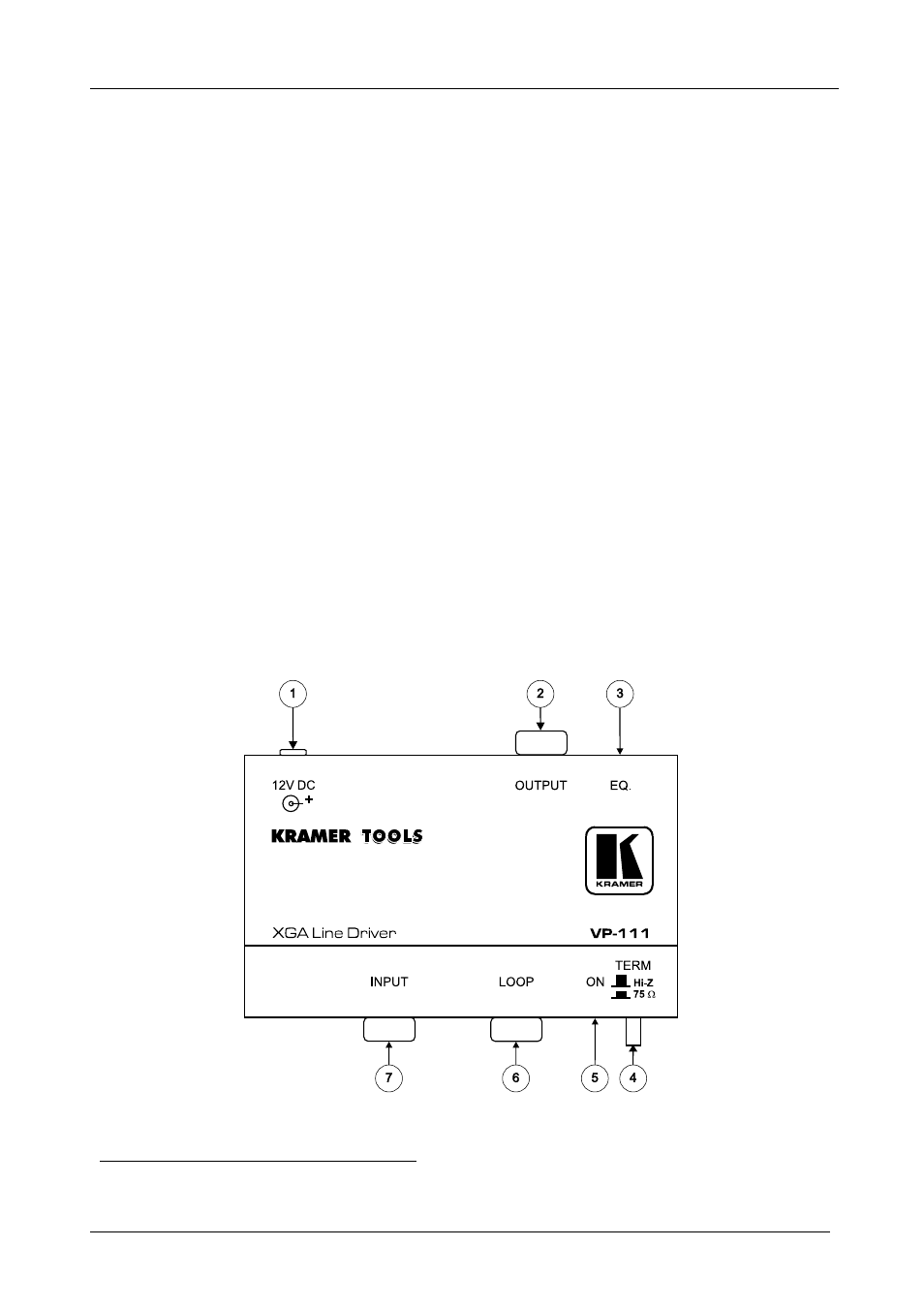

Figure 1: VP-111 XGA Line Driver (Topside)
1 Up to 100 meters (300ft.) when using good quality cable
