VM-4HC - Overview 5
3.1 Defining the VM-4HC 1:4 HDMI DA
This section defines the VM-4HC.

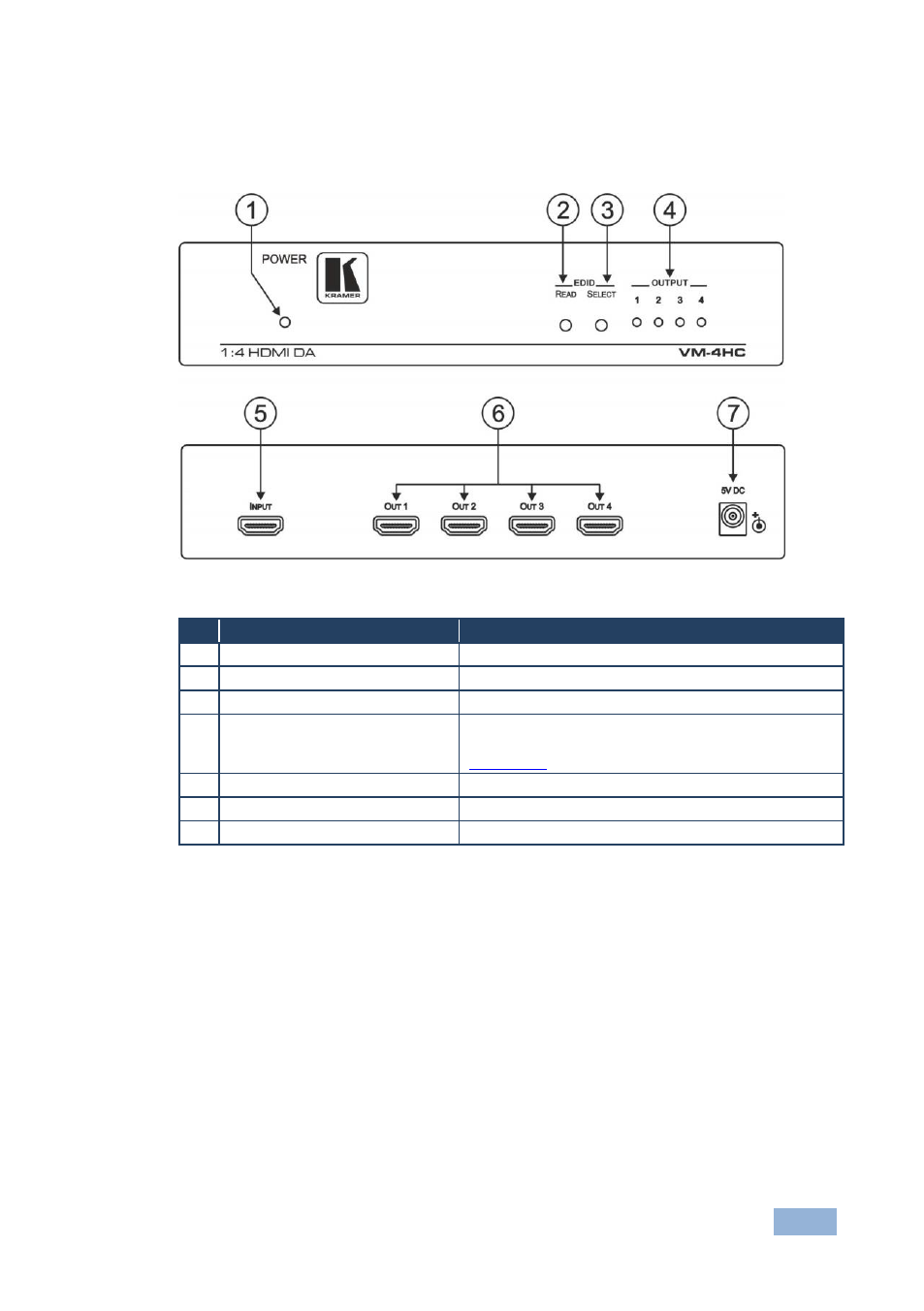

Figure 1: VM-4HC 1:4 HDMI DA
# Feature Function
1 POWER LED Lights red when the unit receives power
2 EDID READ Button Press to read the EDID of the selected output
3 EDID SELECT Button Press to cycle through the output EDID sources
4 OUTPUT 1-4 LEDs Lights green when an output(s) is connected and
active; LEDs flash when selecting EDID (see
Section 4.1 )
5 INPUT HDMI Connector Connect to the HDMI source
6 OUT 1-4 HDMI Connectors Connect to the HDMI acceptors 1 to 4
7 5V DC Power Connector Connect to the power adapter, center pin positive
