VM-2HDxl - Connecting the VM-2HDxl 5
4 Connecting the VM-2HDxl
Always switch off the power to each device before connecting it to your
VM-2HDxl. After connecting your VM-2HDxl, connect its power and
then switch on the power to each device.
To connect the VM-2HDxl, as the example in Figure 2 illustrates, do the following:
1. Connect an HD-SDI video source (for example, a camera) to the INPUT
BNC connector.
2. Connect up to two video OUT BNC connectors to the appropriate HD-SDI
video acceptors (for example, displays).
You do not have to connect both outputs.
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity (not shown in Figure 2 ).

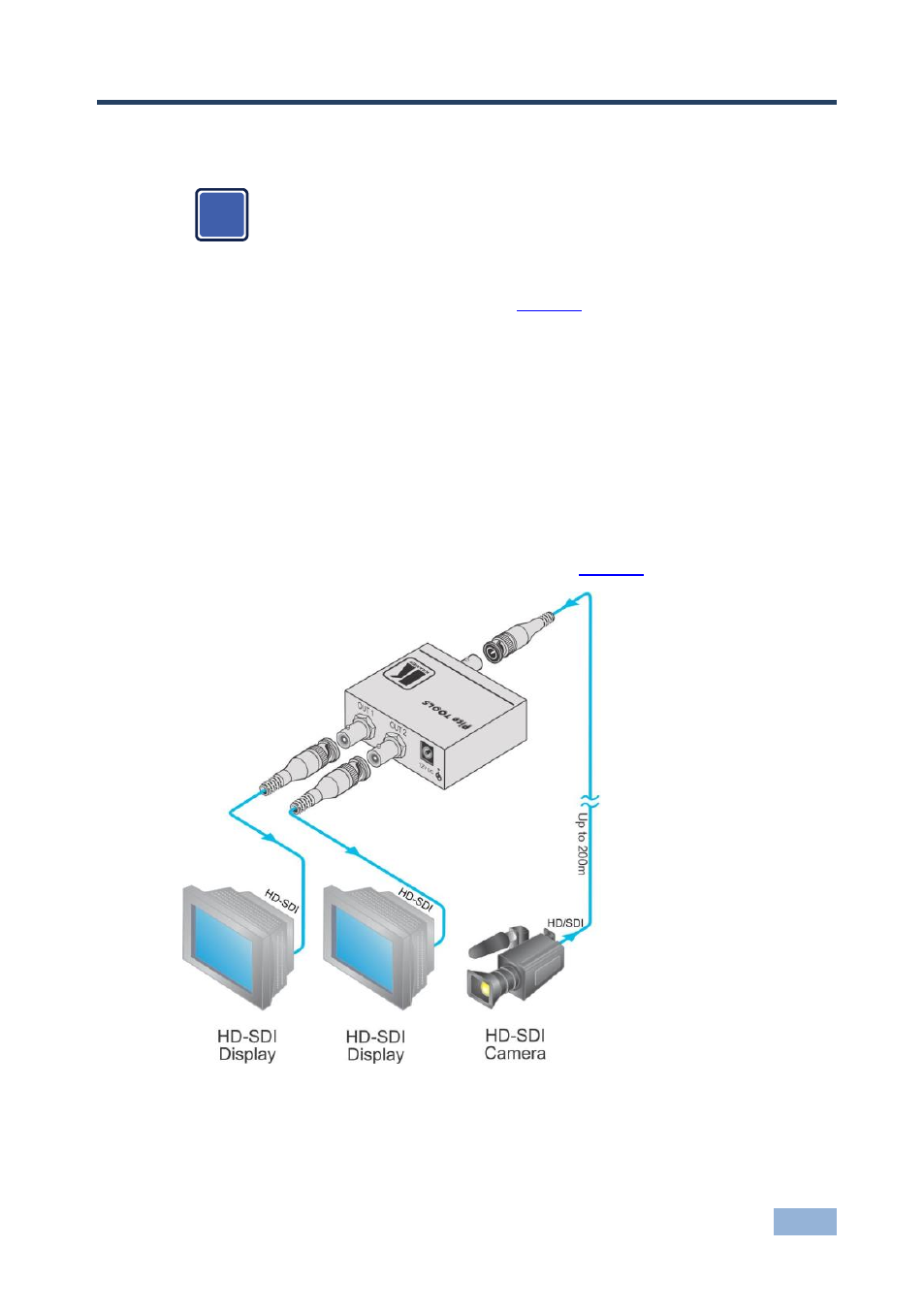

Figure 2: Connecting to the VM-2HDxl
